Home >> Mazda >> 1990 >> 626 L4-2184cc 2.2L SOHC F2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Daytime Running Lamp Control Unit

Daytime Running Lamp Control Unit

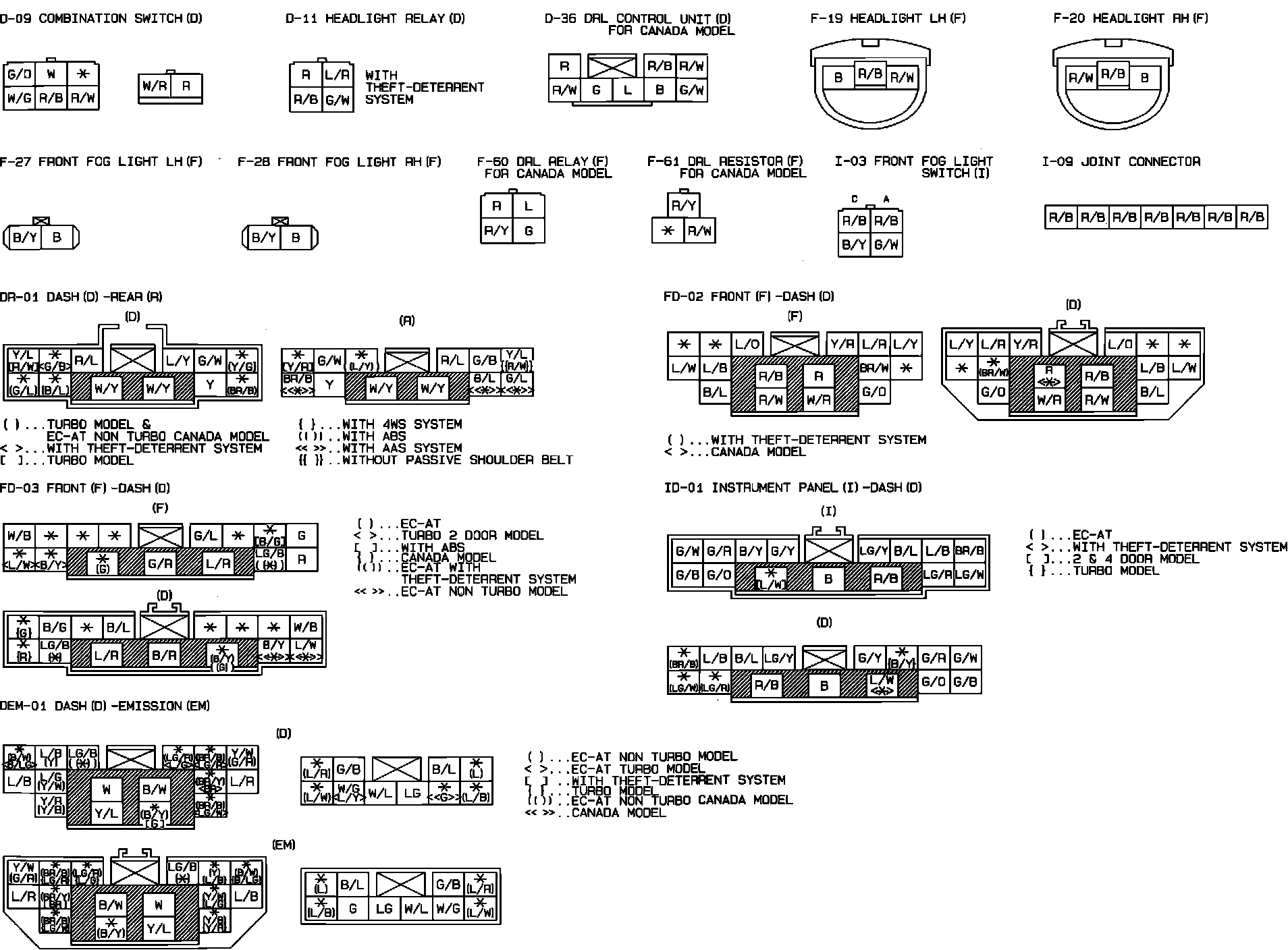

Headlights & Foglights. Daytime Running Lights For Canada Only. Connector Identification:
