2WD

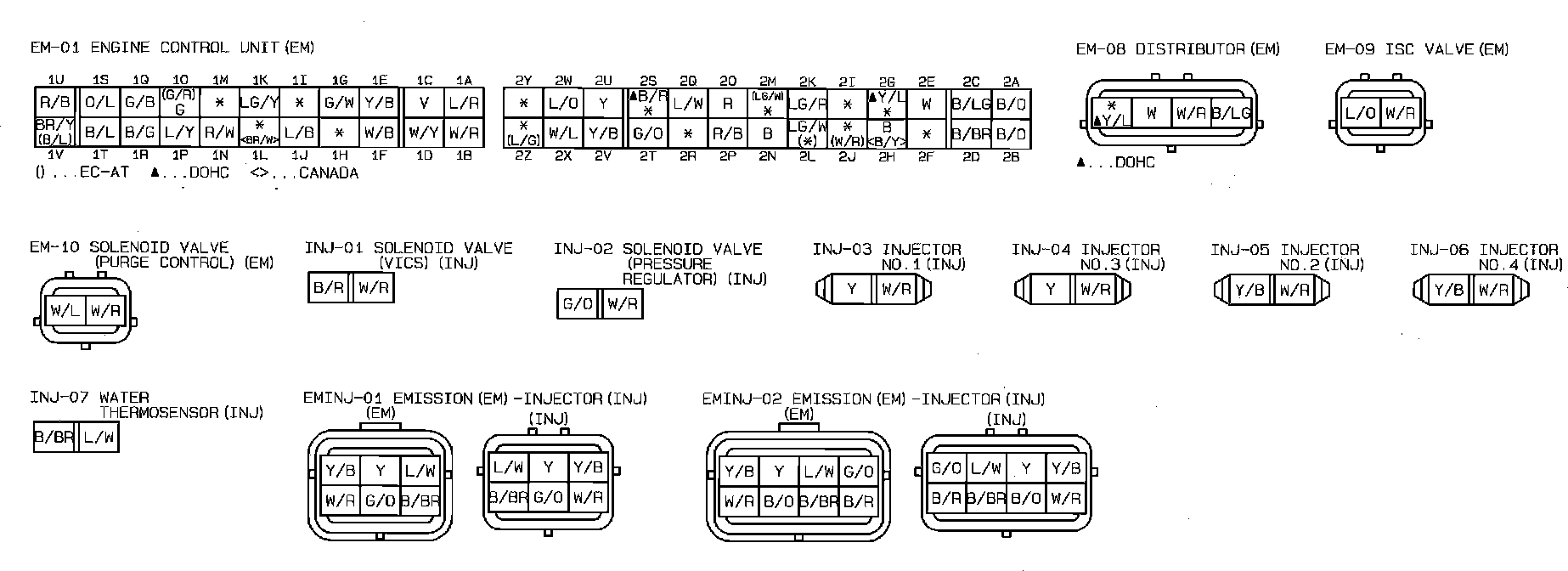

Engine Control System. Except 4WD . Connector Identification:

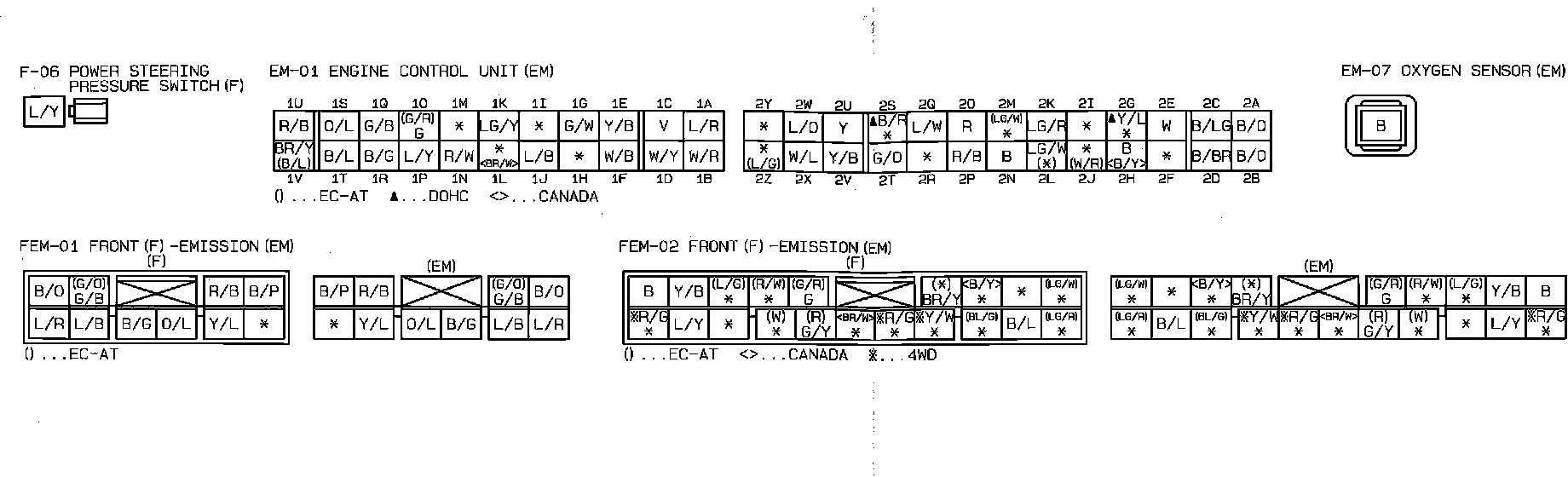

Engine Control System. Except 4WD . Connector Identification:

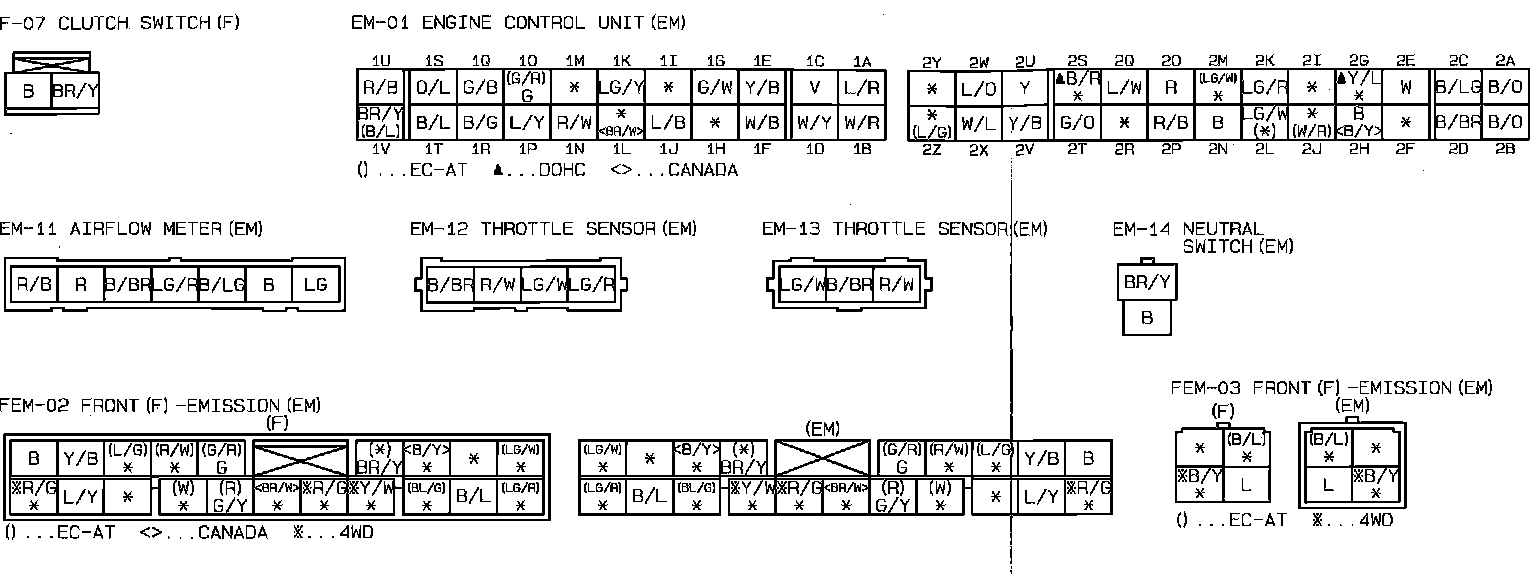

Engine Control System. Except 4WD . Connector Identification:

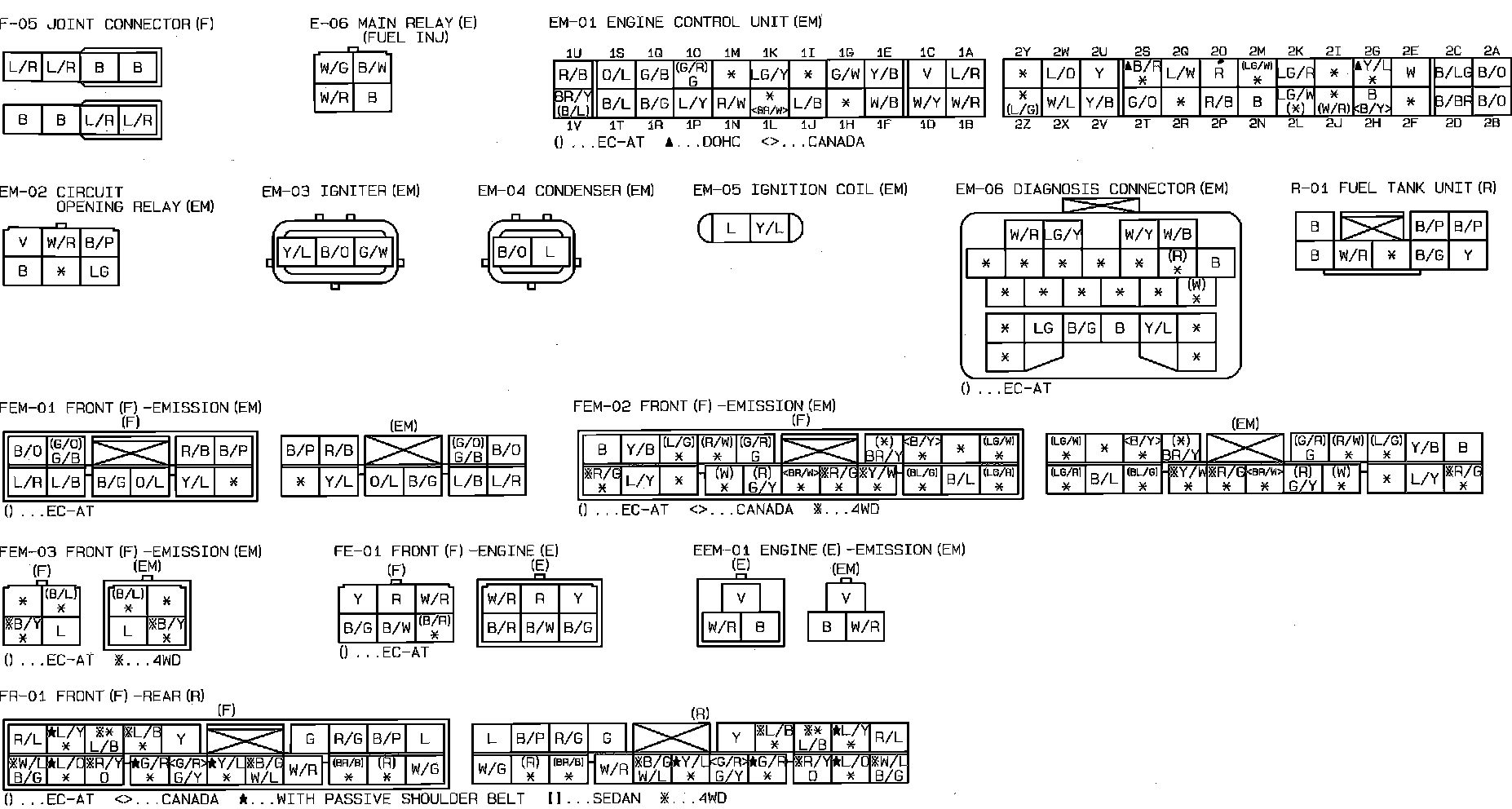

Engine Control System. Except 4WD . Connector Identification:
