System Specifications

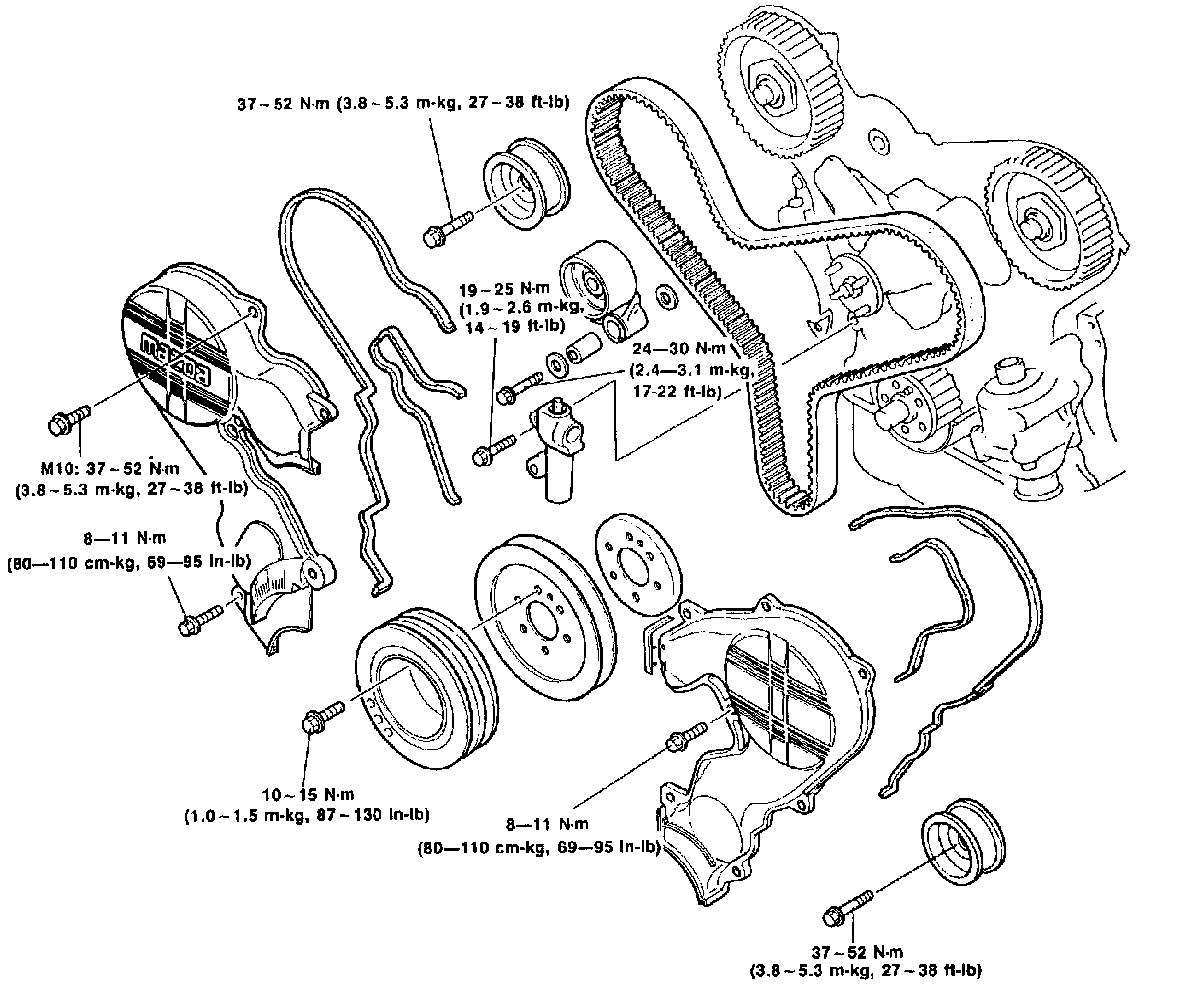

Timing Components:

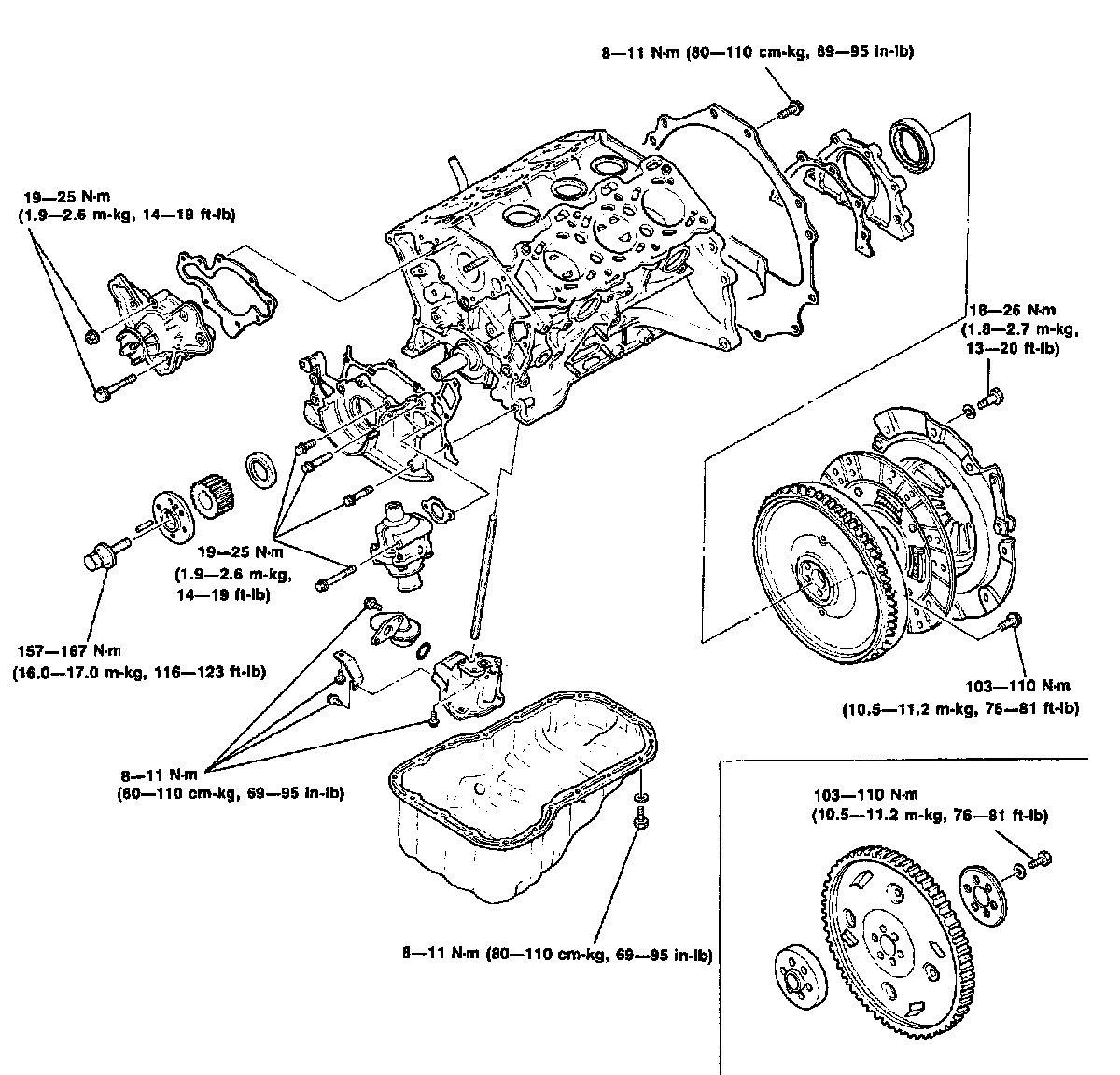

Positive Displacement Gear - Oil Pump Type:

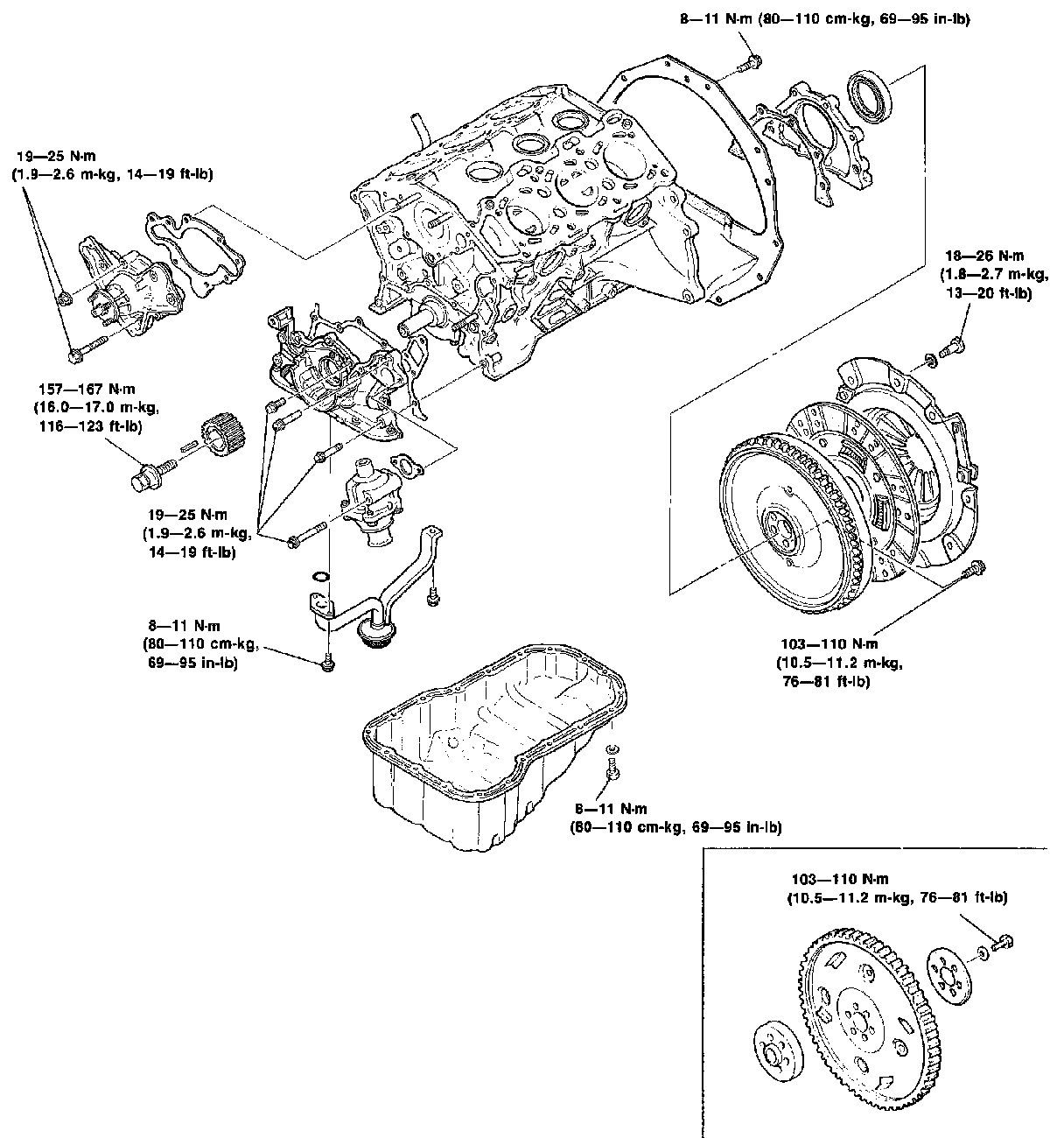

Trochoid Gear - Oil Pump Type:
