Cruise Control
>>
Testing and Inspection
>>
Troubleshooting
Troubleshooting

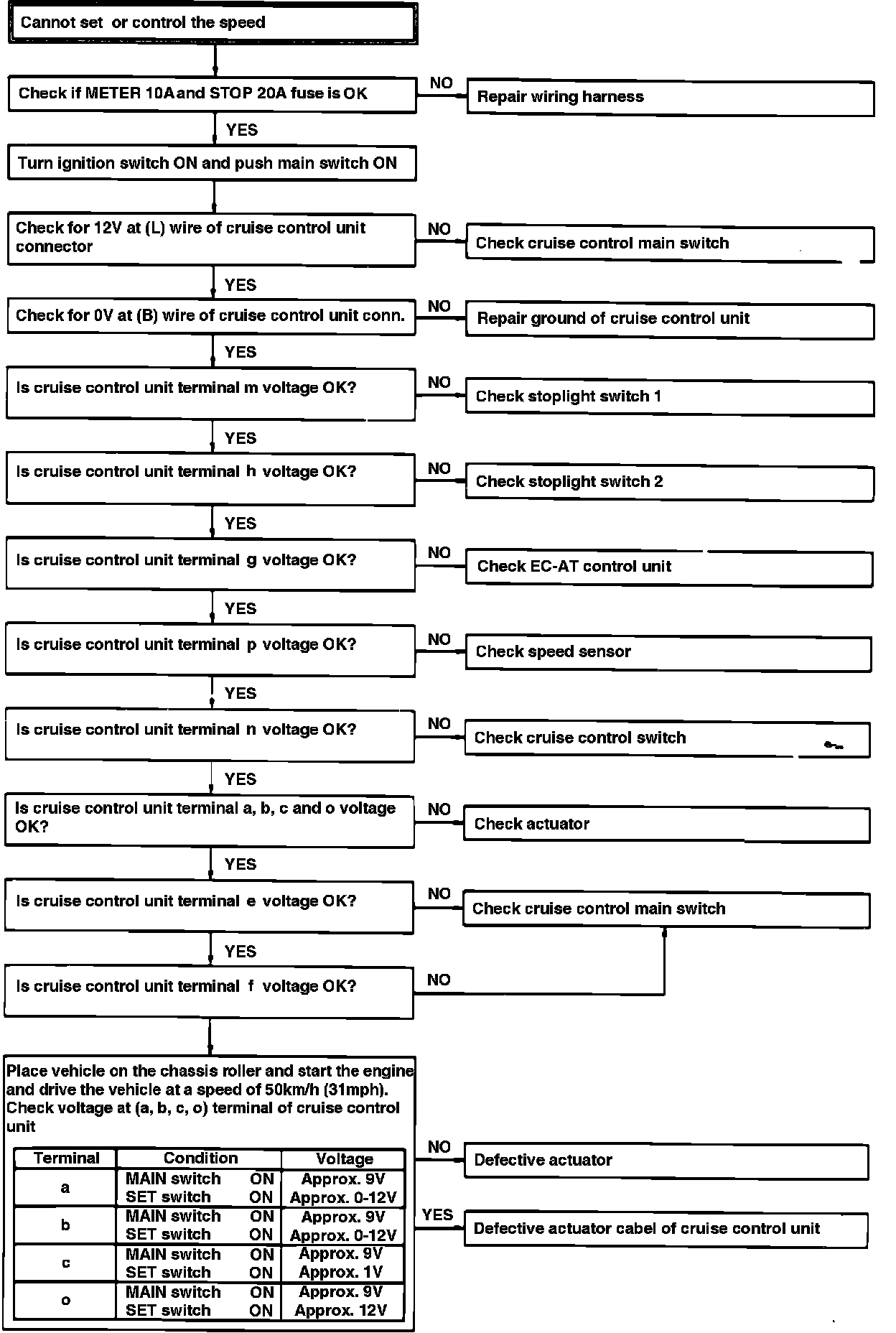

Fig. 16 Speed Control Troubleshooting Chart:
To diagnosis the speed control system on this vehicle, refer to
Fig. 16.
