Home >> Mazda >> 1989 >> 626 L4-2184cc 2.2L SOHC F2 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Electric Load Sensor >> Testing and Inspection

Electric Load Sensor: Testing and Inspection


Engine Load Control Unit Inspection:





1. Connect a voltmeter between the engine load control unit and ground.
2. Start the engine and check the terminal voltages as described in the chart below.

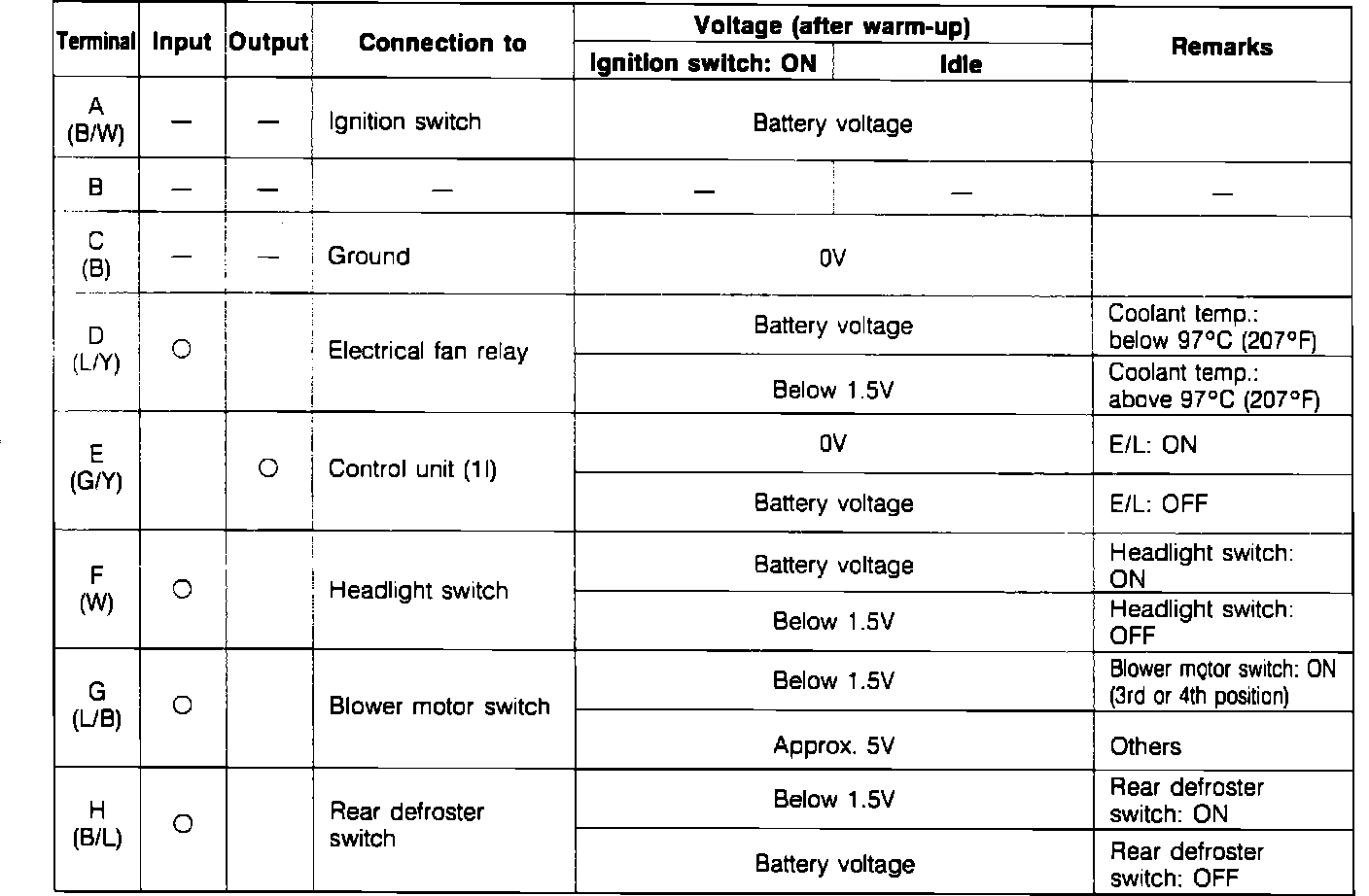

Engine Load Control Unit Terminal Voltages:
