Home >> Mazda >> 1989 >> 626 L4-2184cc 2.2L SOHC F2 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering >> Steering Control Module

Steering Control Module

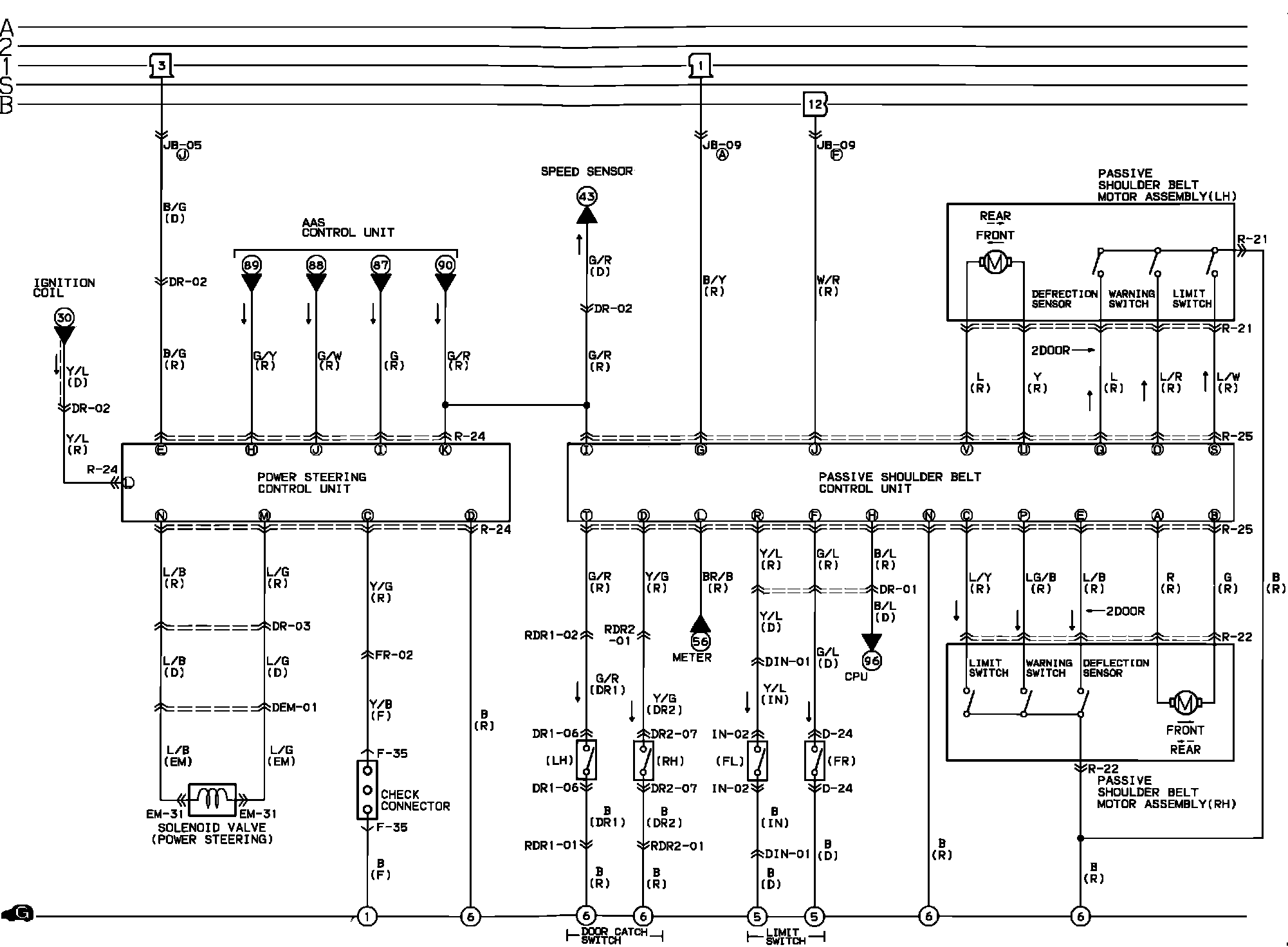

Automatic Shoulder Belt & Power Steering Control System. Without 4WS:
