Engine Control Module

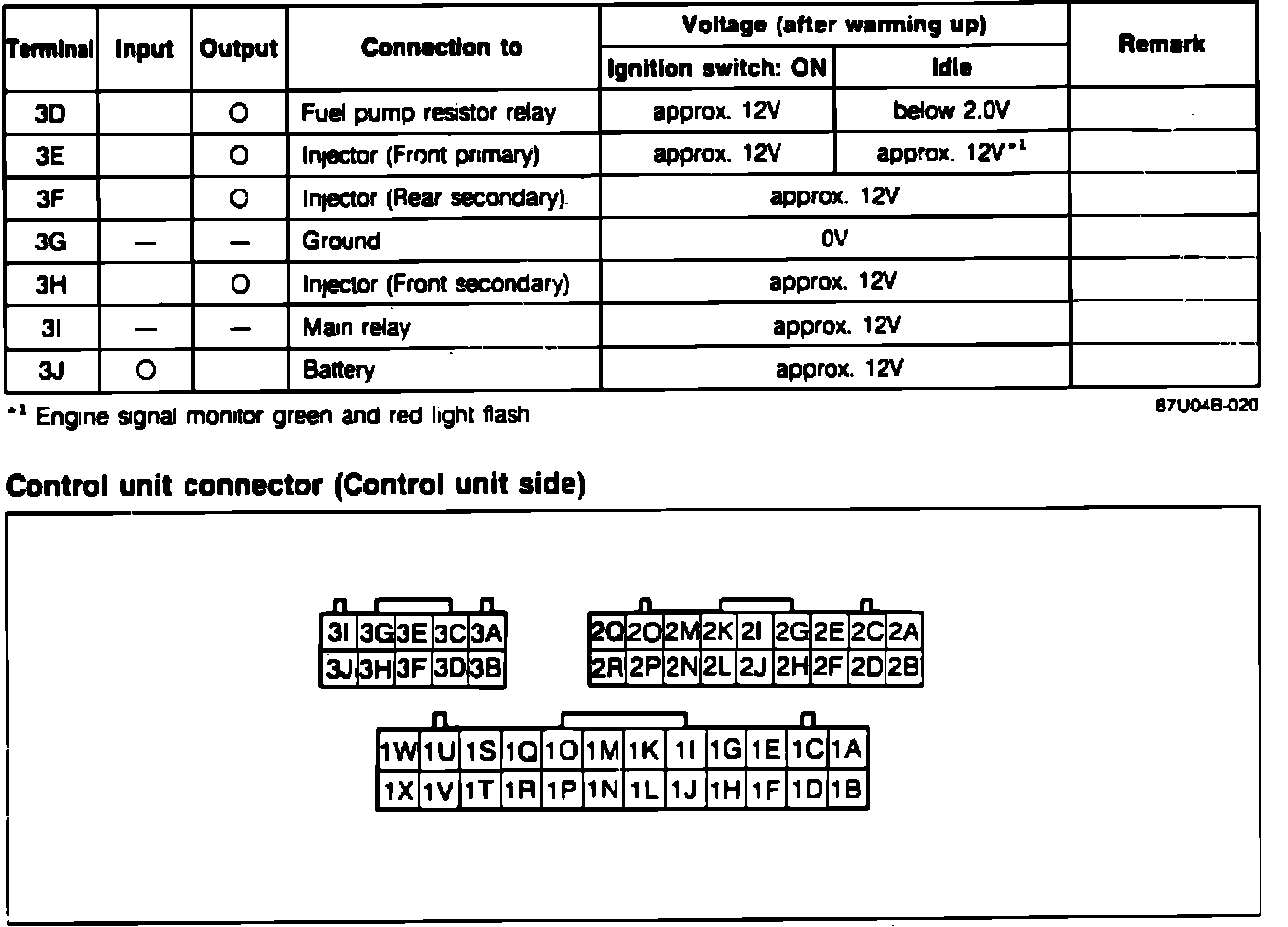

Fig. 71a Control unit voltage specifications chart. Turbo:

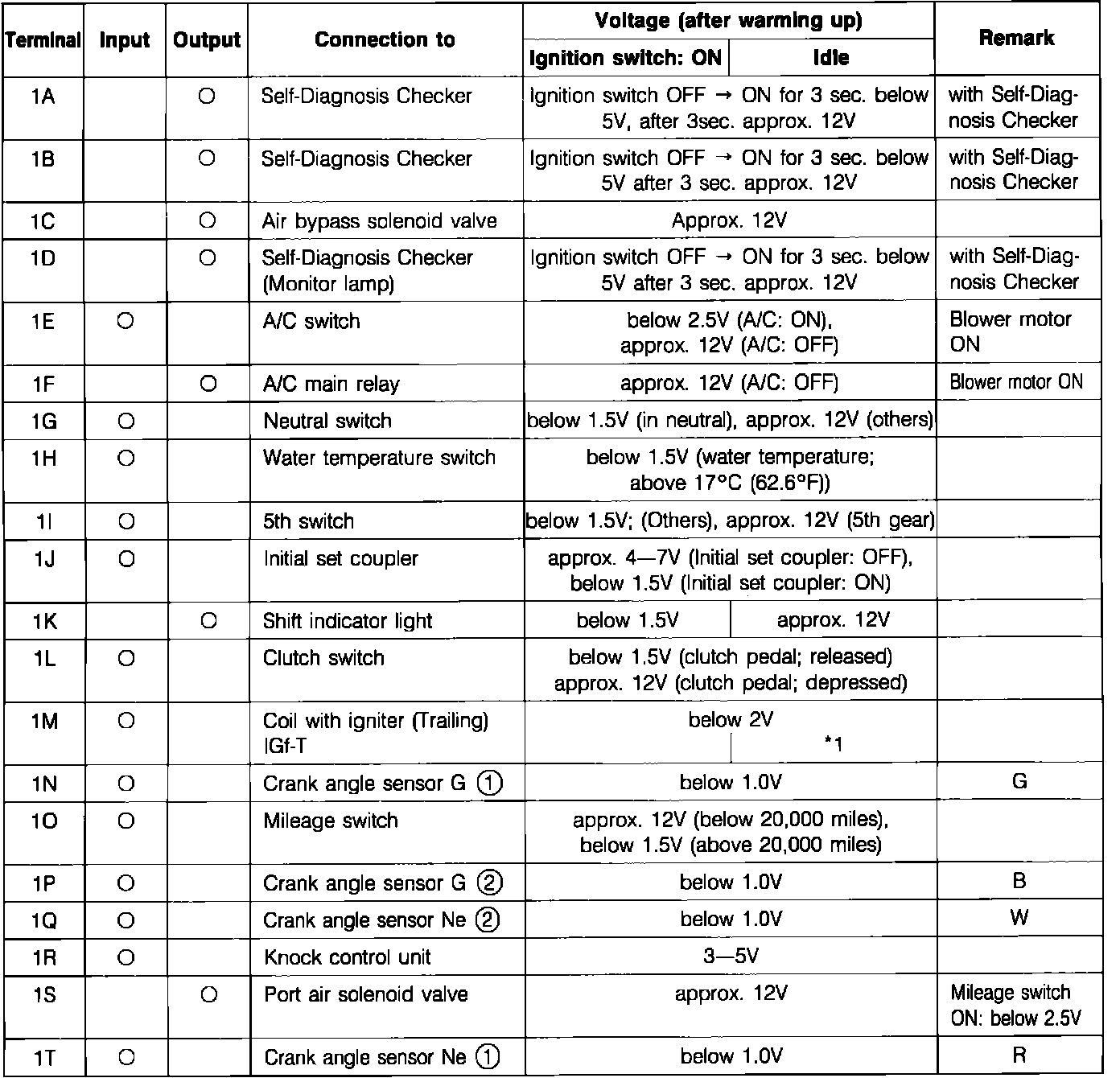

Fig. 71b Control unit voltage specifications chart. Turbo:

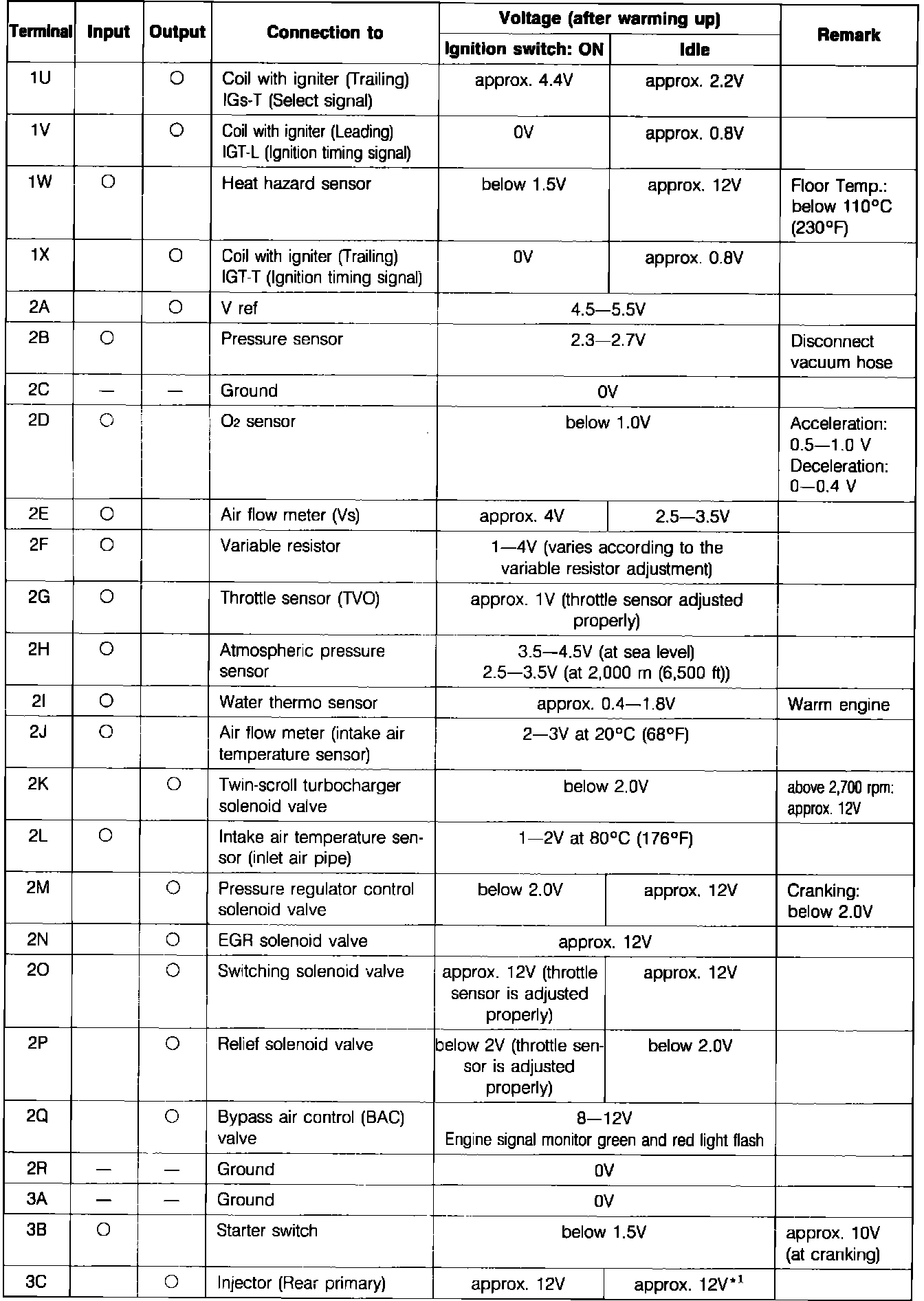

Fig. 71c Control unit voltage specifications chart. Turbo:
