Engine Control Module

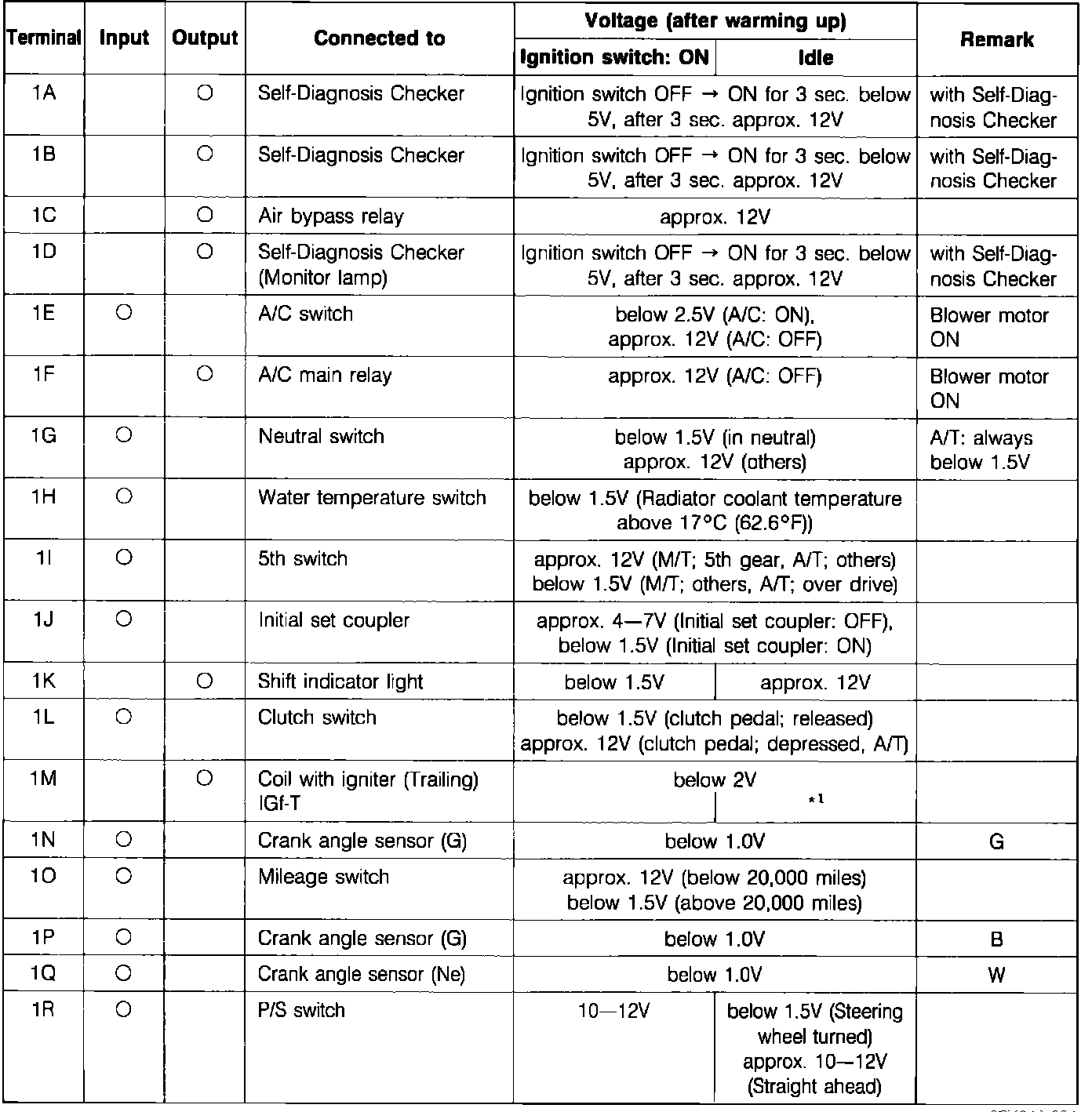

Fig. 70a Control unit voltage specifications chart. Exc. turbo:

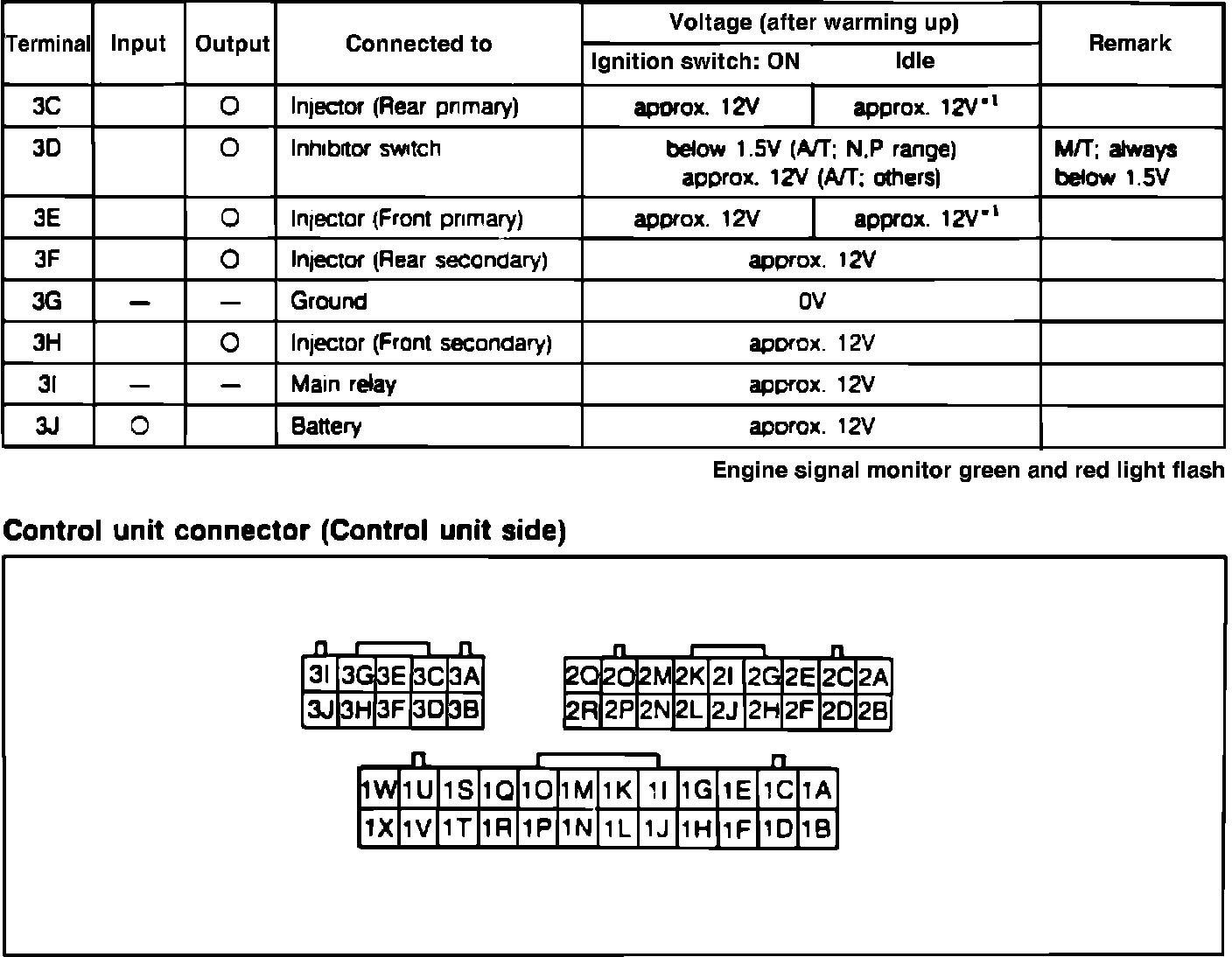

Fig. 70b Control unit voltage specifications chart. Exc. turbo:

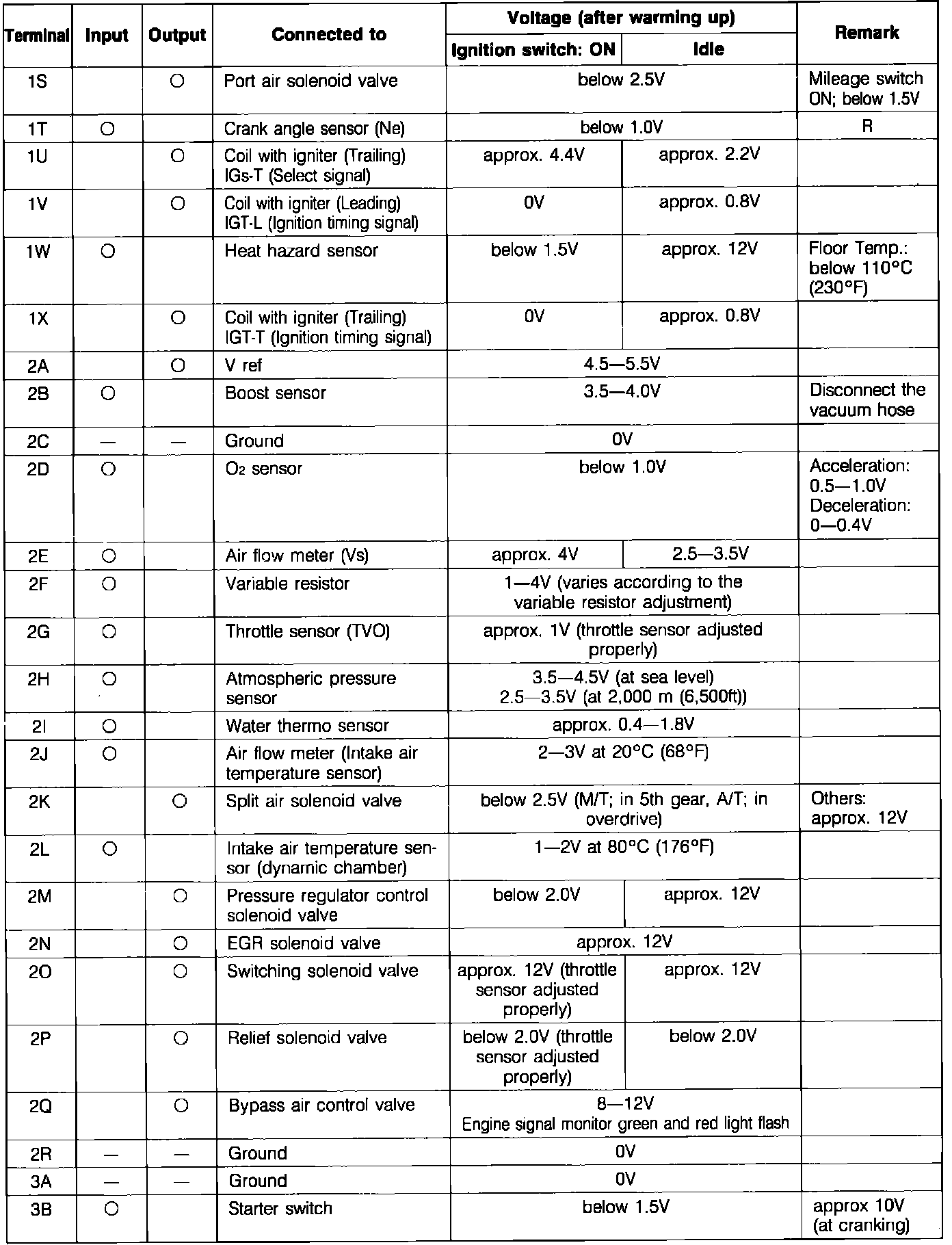

Fig. 70c Control unit voltage specifications chart. Exc. turbo:
