Home >> Mazda >> 1988 >> 929 V6-3.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Control Module >> Locations

Ignition Control Module: Locations

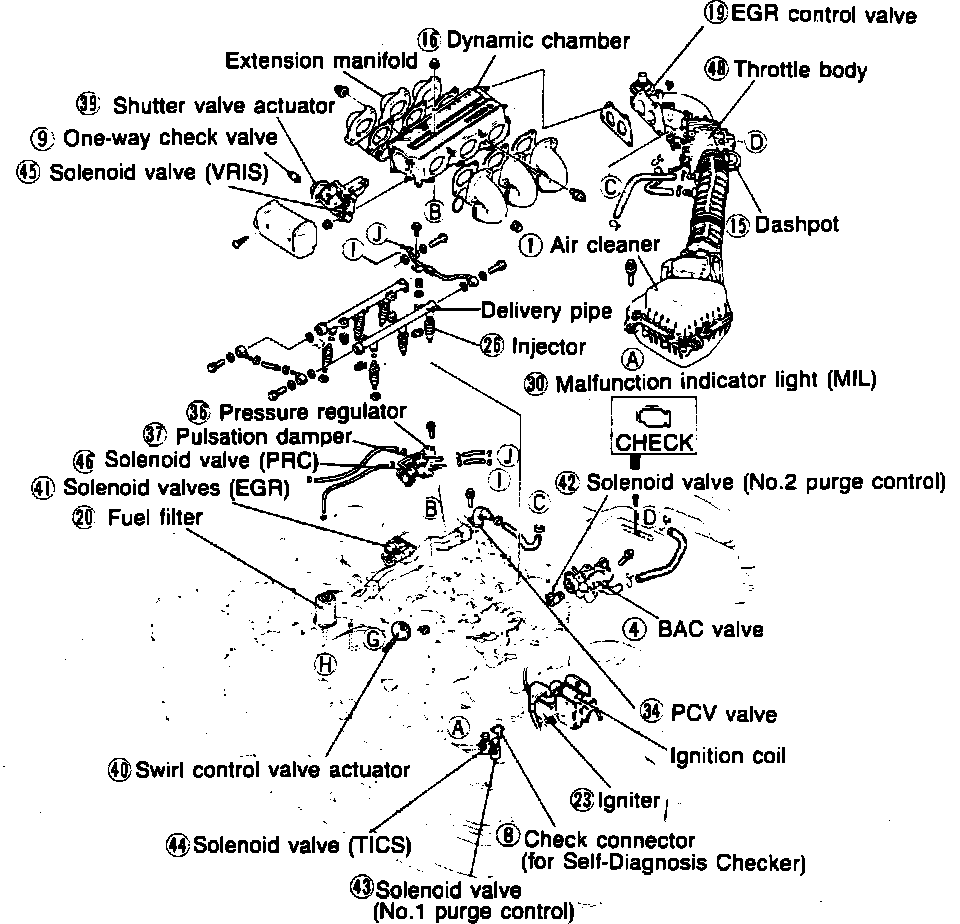

Emission components.:




Forward Of Front LH Strut Tower

Applicable to: 929
