Home >> Mazda >> 1988 >> 929 V6-3.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Description and Operation >> Input and Output Devices

Input and Output Devices

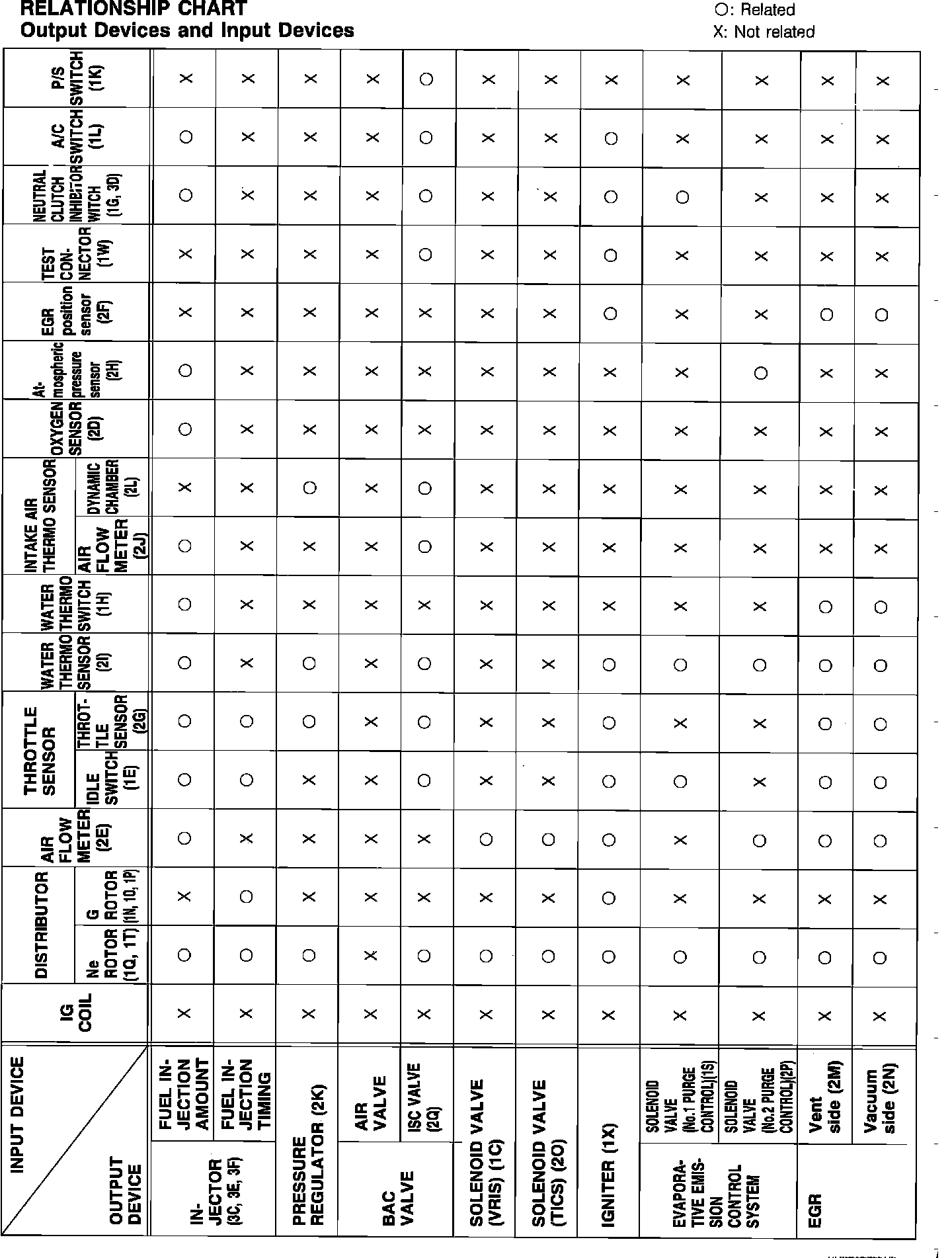

Fig. 22 Input and Output Devices:
