Main Relay (Computer/Fuel System): Locations

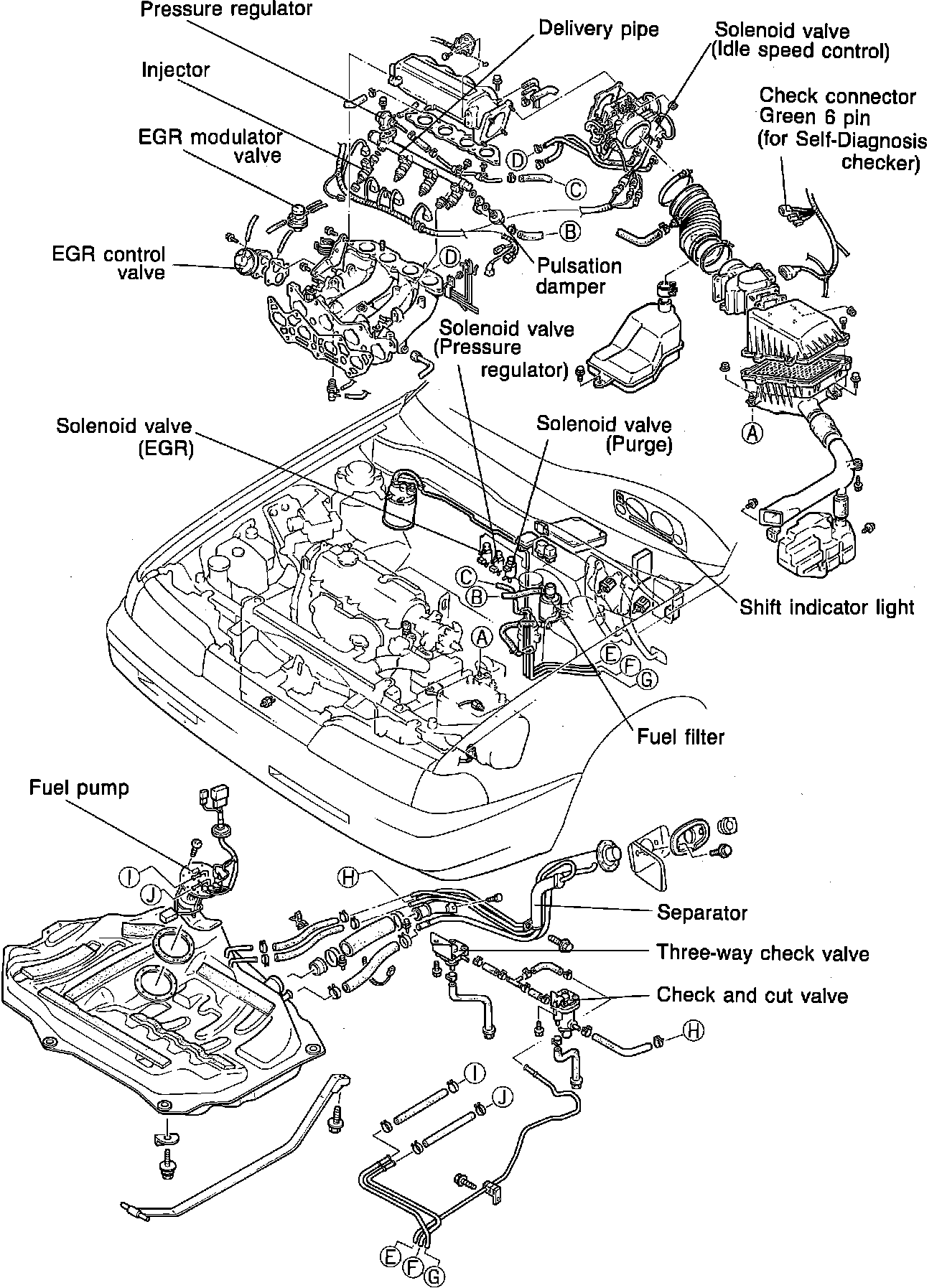

Fig. 12 EGI System, non-Turbo:

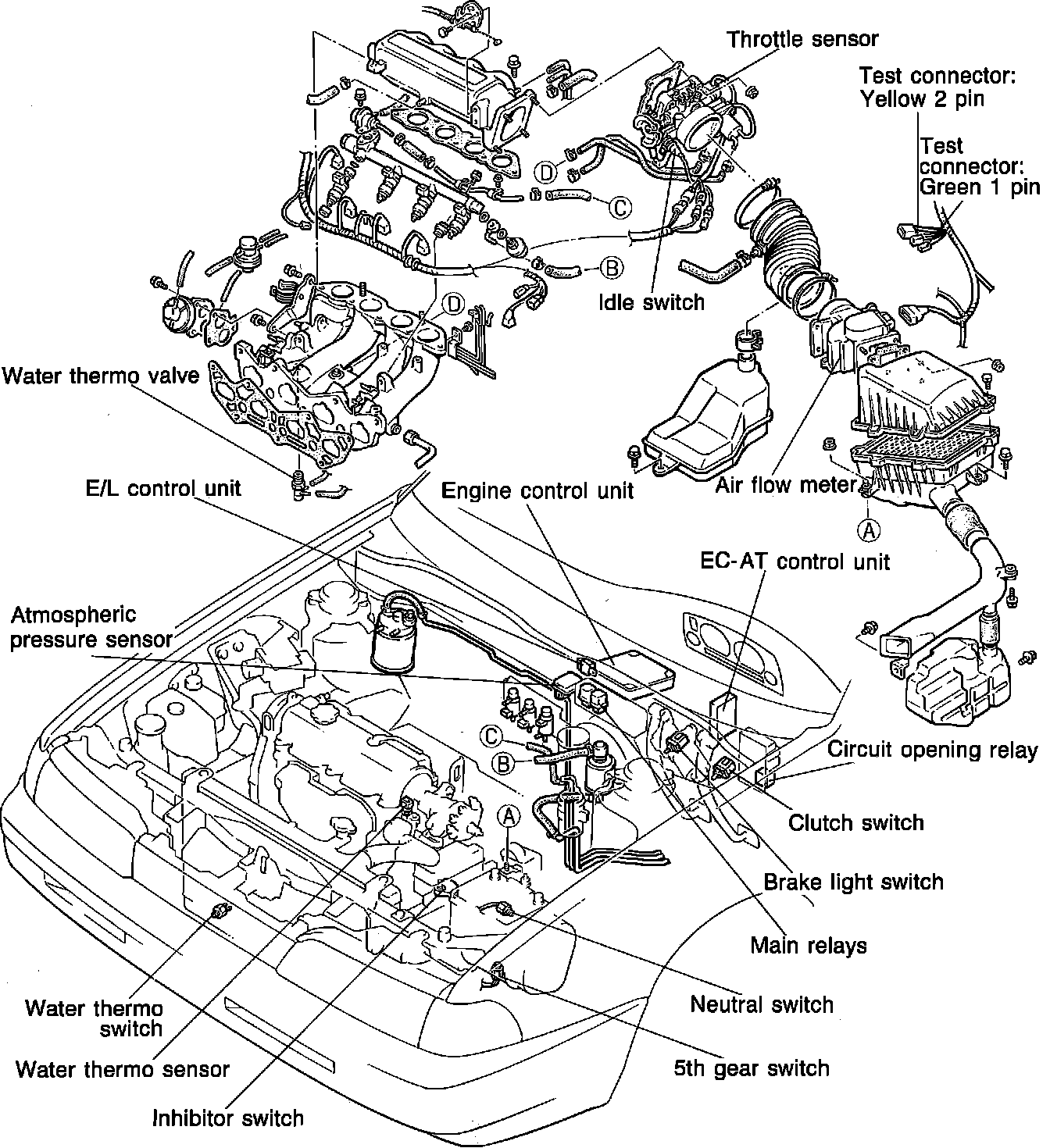

Fig. 14 EGI System, non-Turbo:
