Home >> Mazda >> 1988 >> 626 L4-2184cc 2.2L SOHC F2 >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Locations >> Turbo >> Manual Temperature Control

Manual Temperature Control

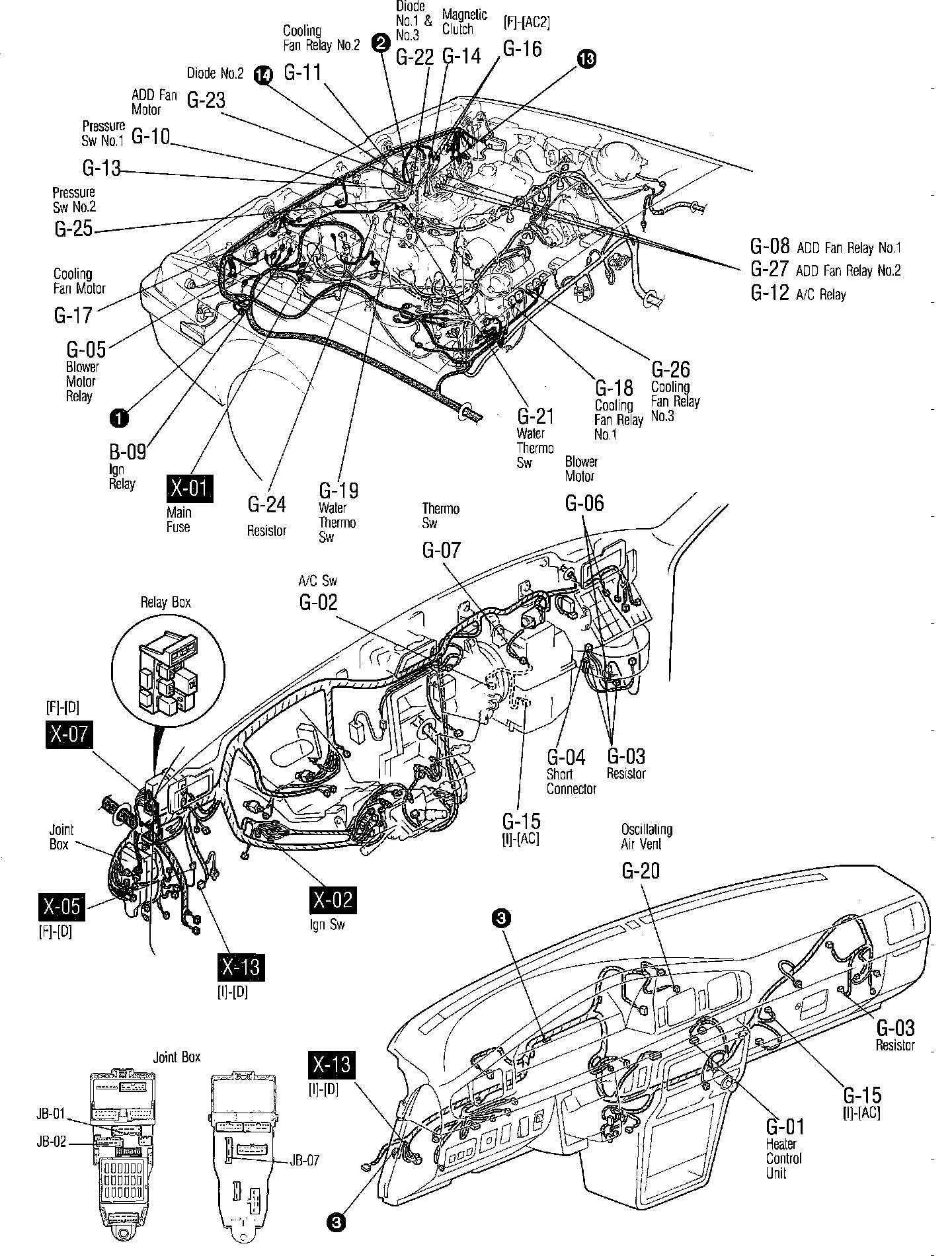

Heater, Air Conditioner and Cooling Fan System (Turbo, Non Turbo A/T):
