Home >> Mazda >> 1988 >> 626 L4-2184cc 2.2L SOHC F2 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering >> Steering Control Module

Steering Control Module

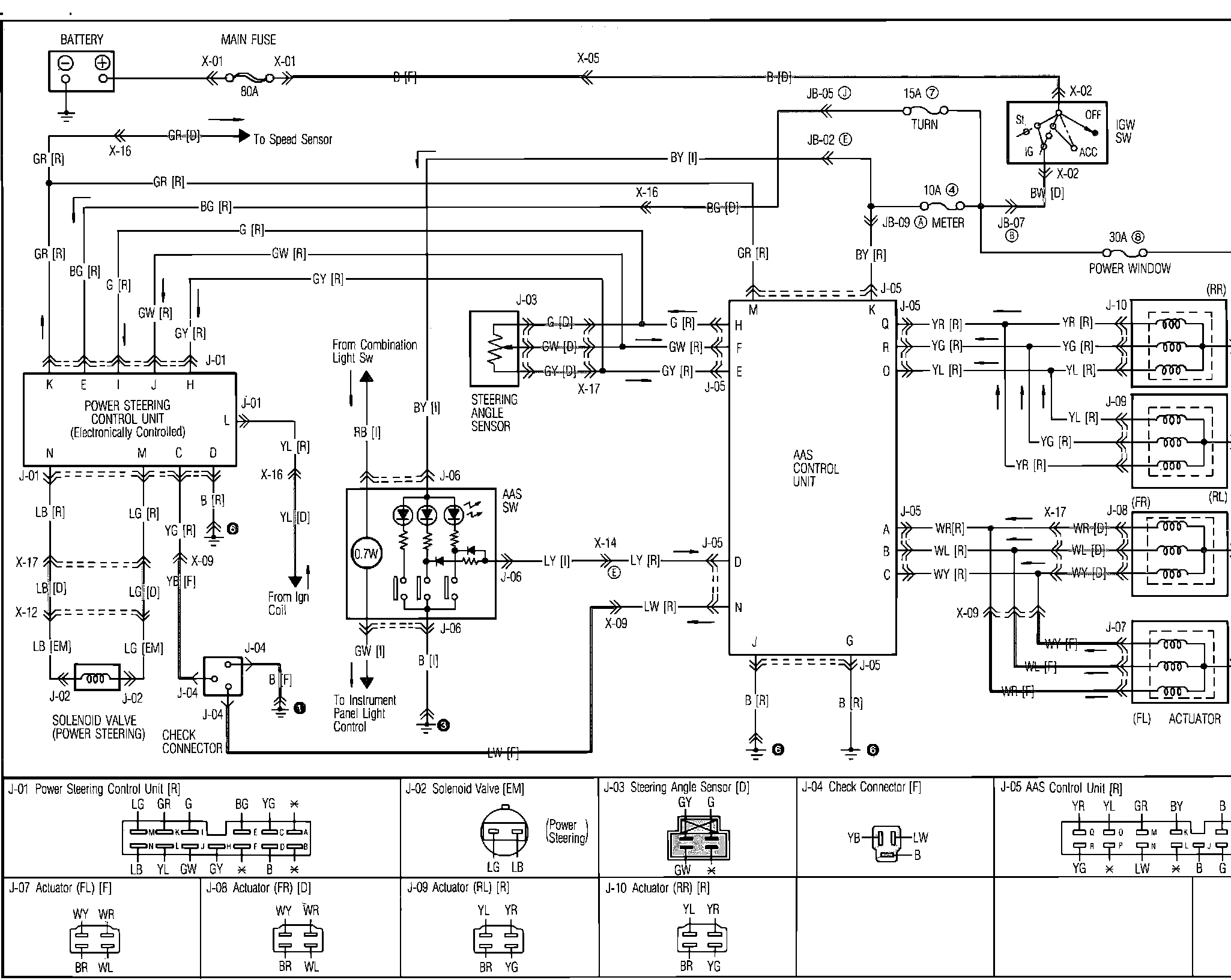

ΔwPower Steering Control and Auto Adjusting Suspension Control System:
