Home >> Mazda >> 1988 >> 323 L4-1600 1597cc >> Repair and Diagnosis >> Diagrams >> Connector Views >> Computers and Control Systems

Computers and Control Systems

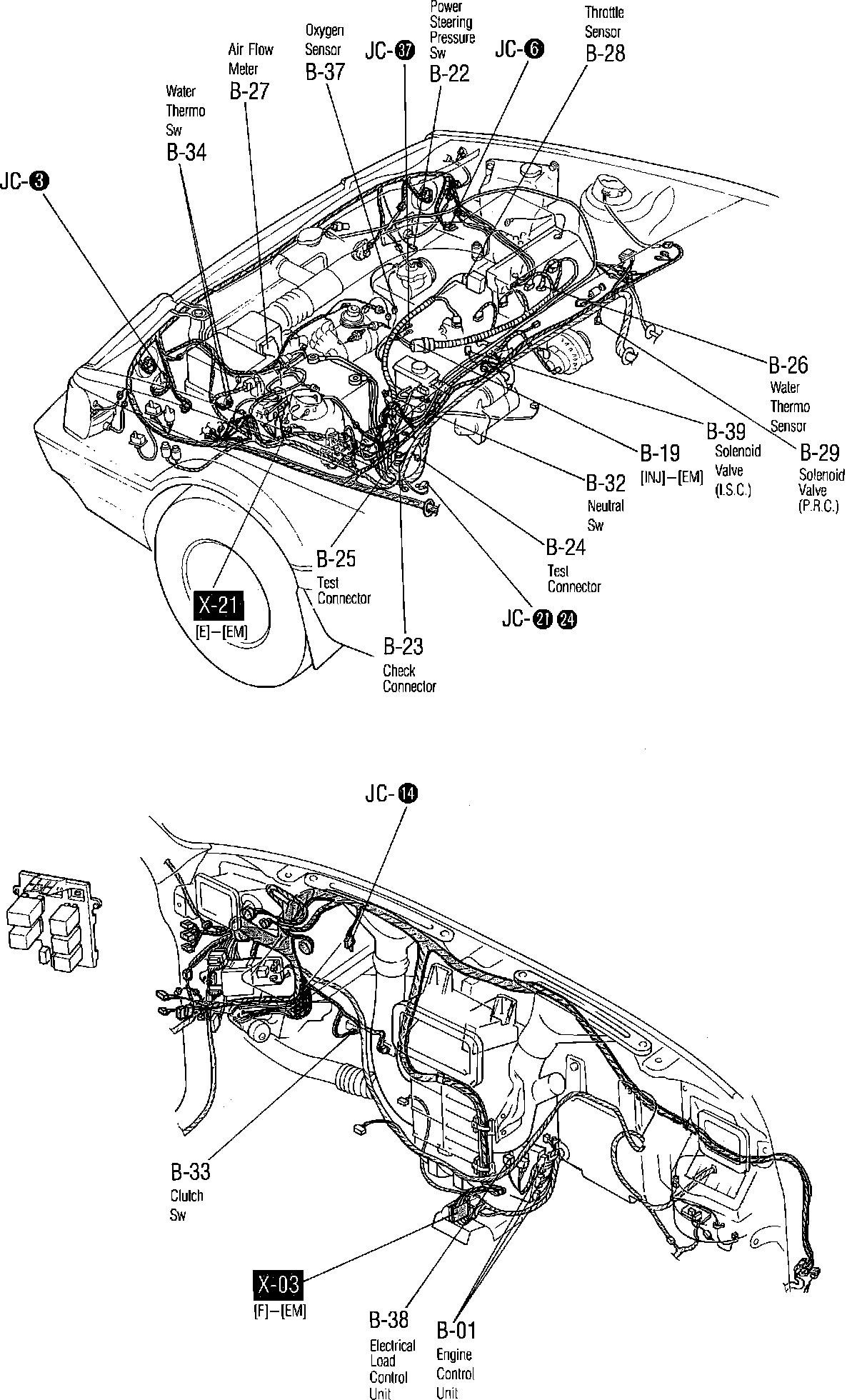

Fig. 2j Wiring Harness.:

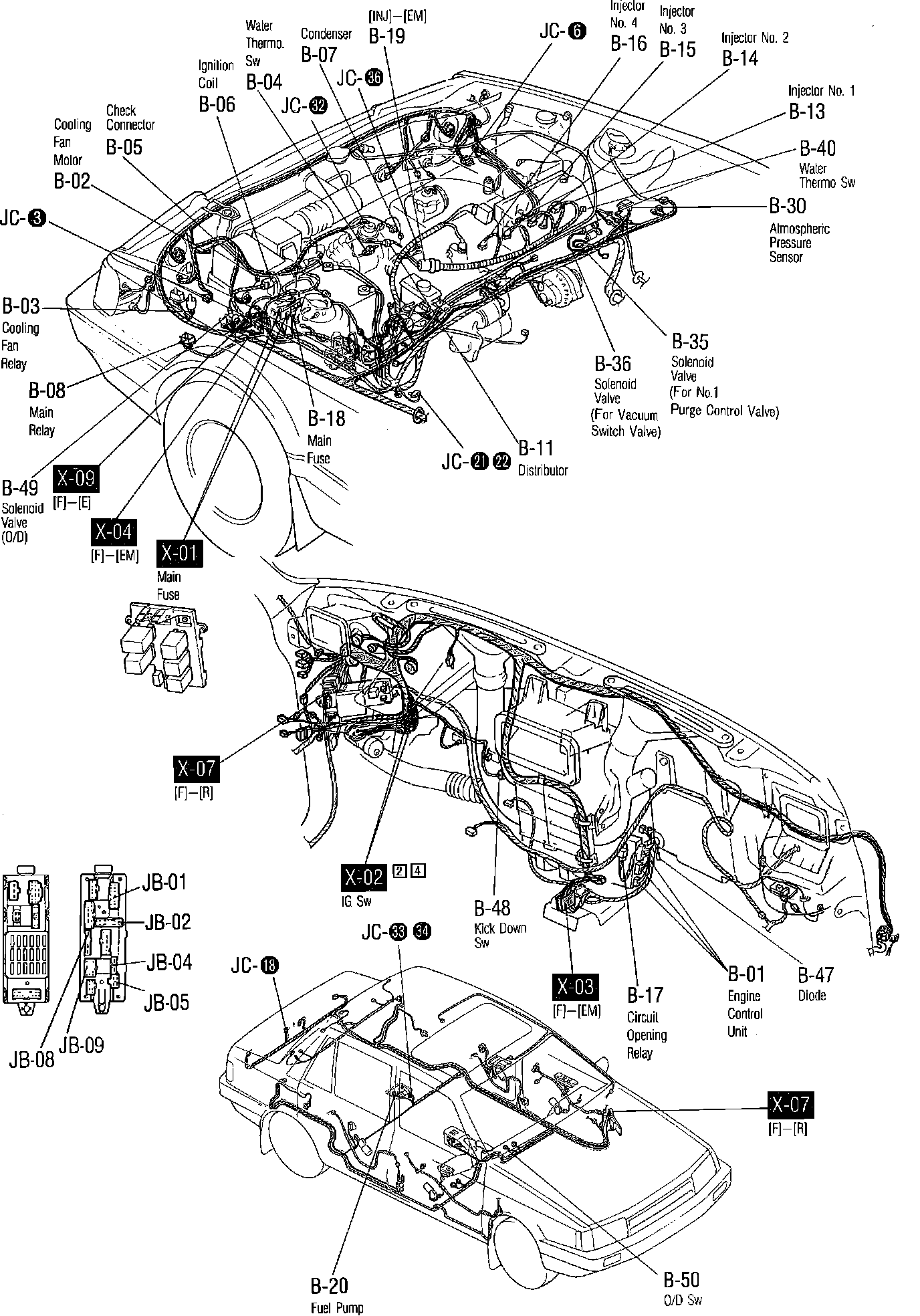

Fig. 2l Wiring Harness.:
