Engine Control Module: Specifications

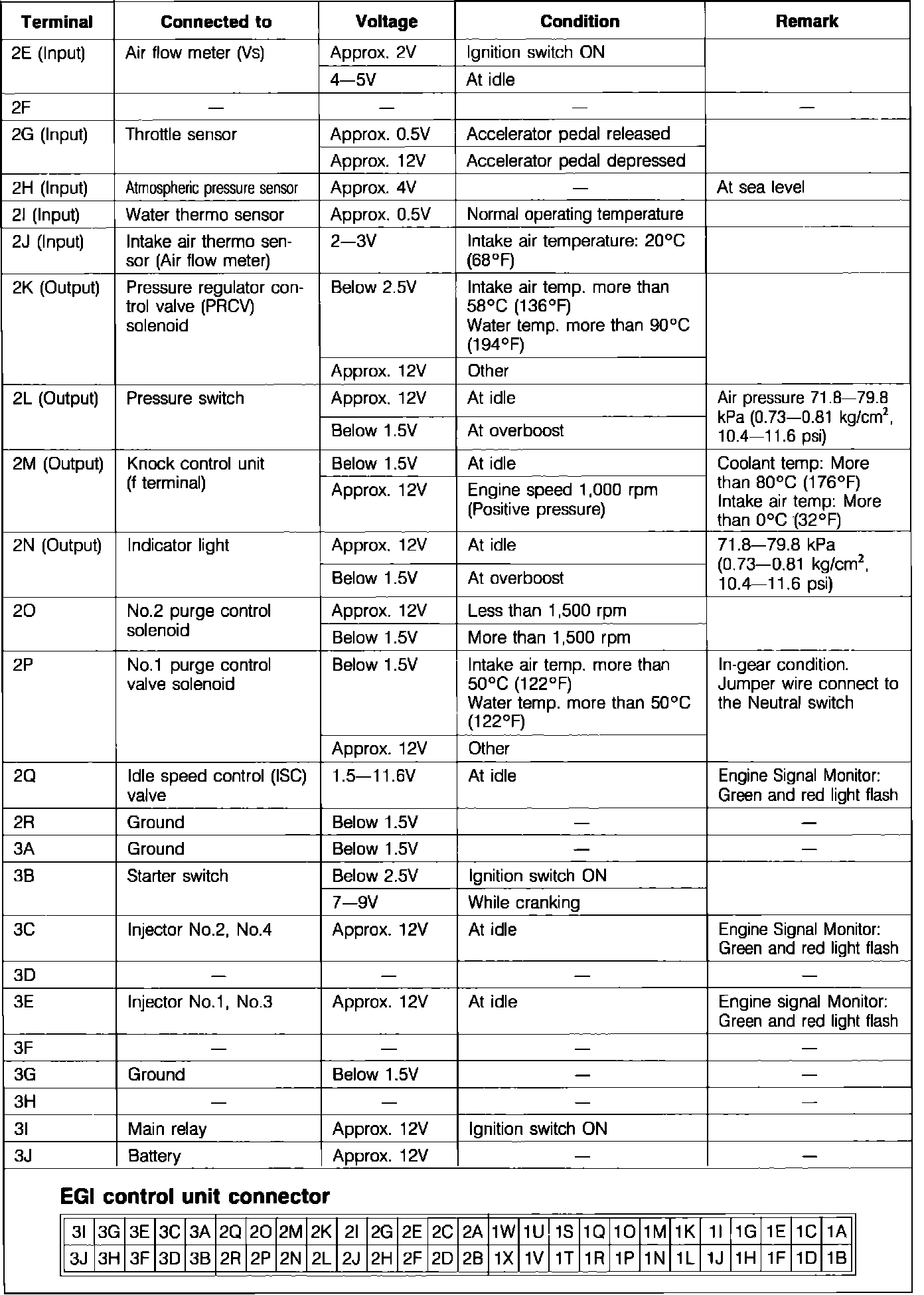

Fig. 66a Control unit voltage specifications chart. Turbo:

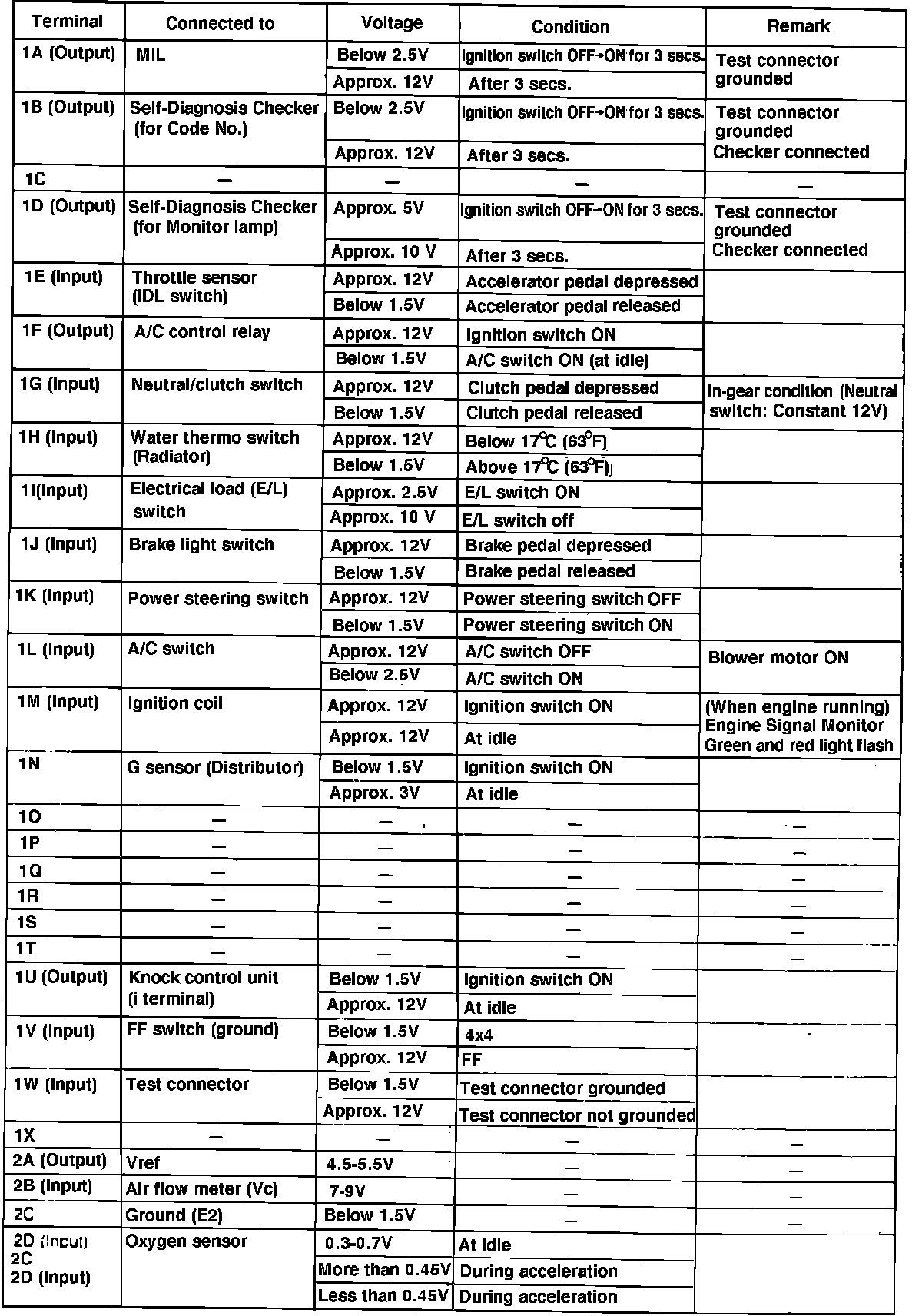

Fig. 66b Control unit voltage specifications chart. Turbo:
