Home >> Mazda >> 1987 >> 626 L4-1998 cc 2.0L SOHC FE >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Control Module, A/T

Control Module, A/T

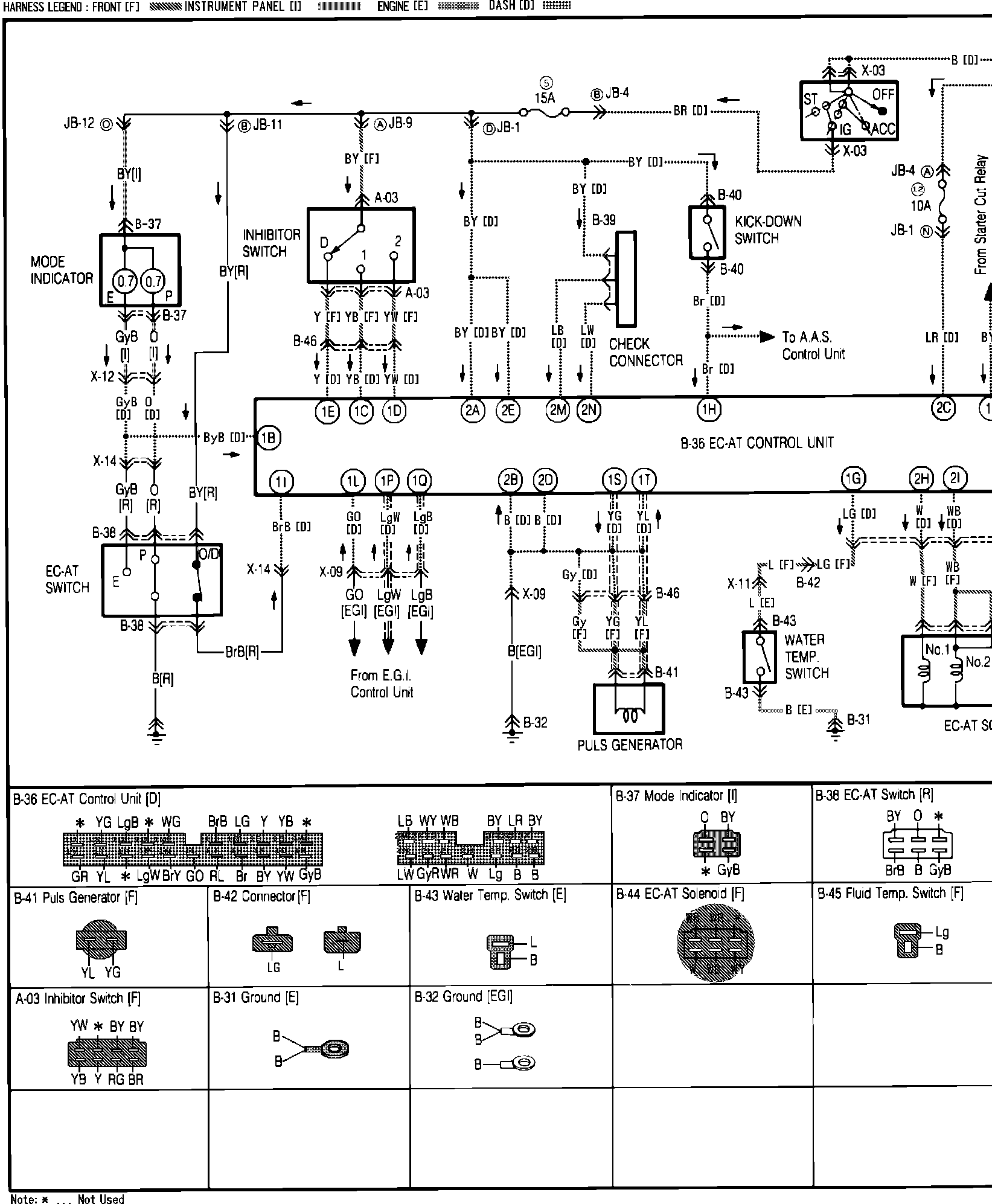

�w�Fig. 47b Electronic Control-Automatic Transmission System Wiring Circuit. Less Turbo:
