Home >> Mazda >> 1987 >> 323 L4-1600 1597cc >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Index

Symptom Index

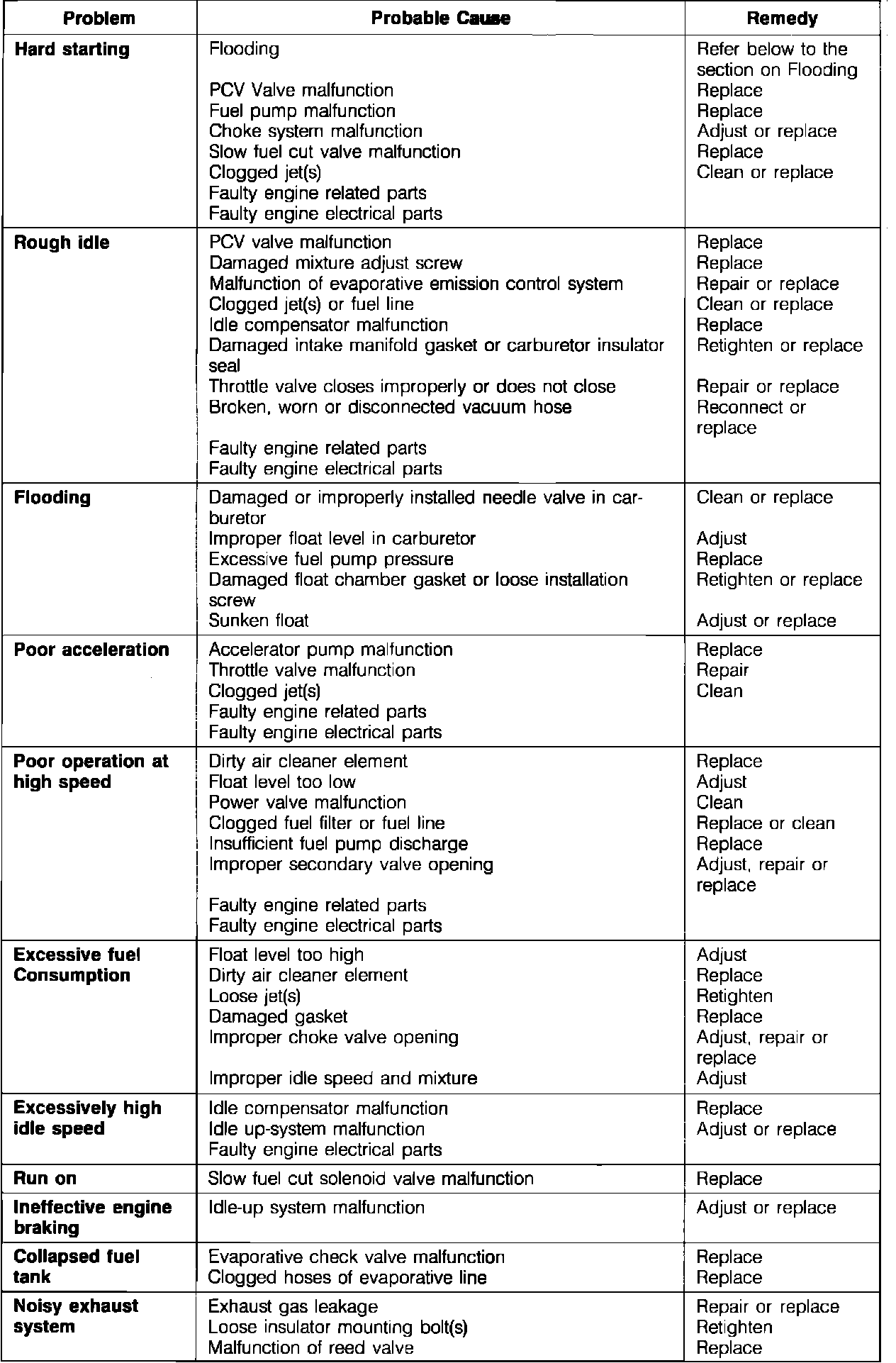

Fig. 1 Troubleshooting Guide:
