Cruise Control Module: Locations

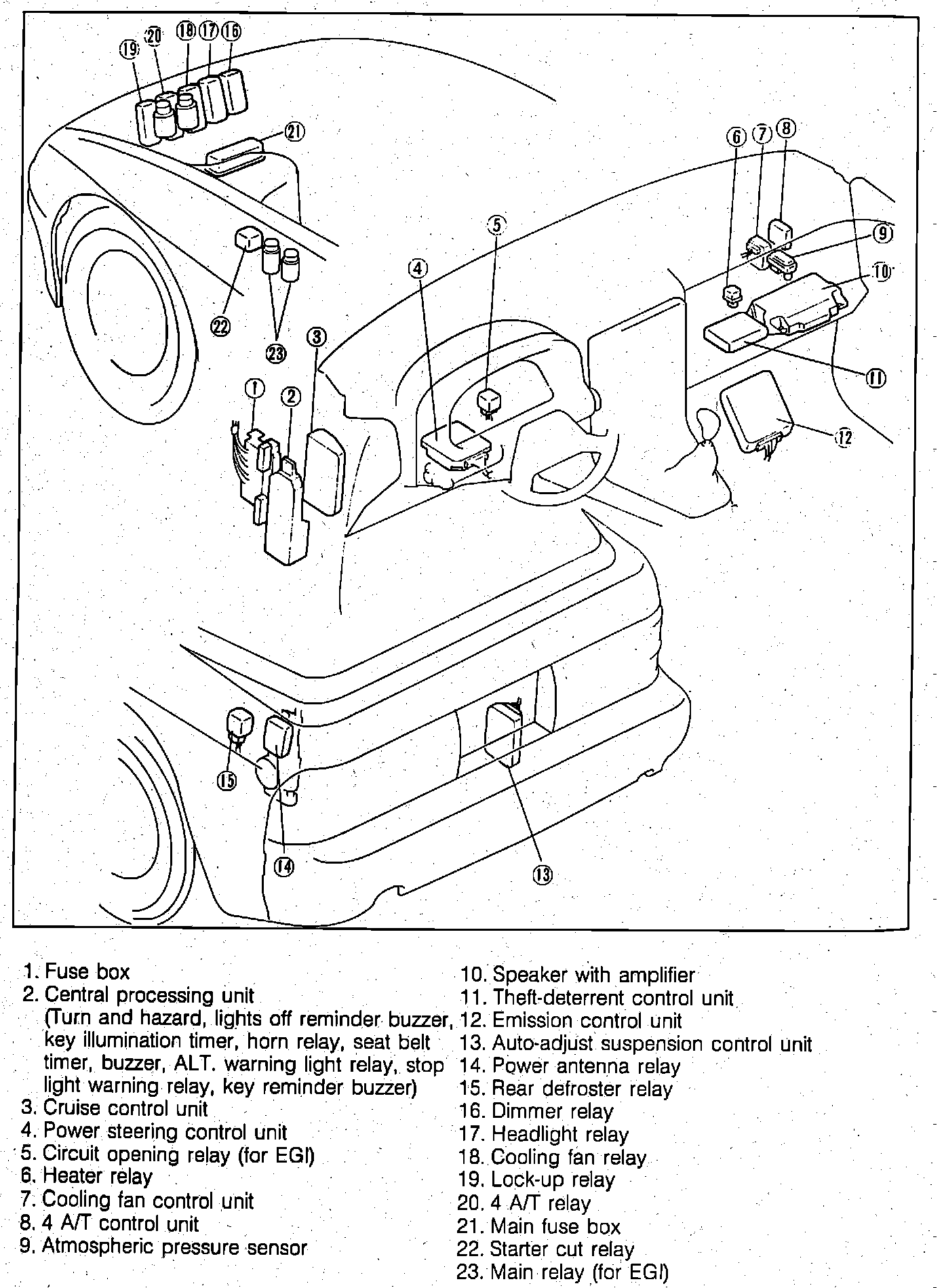

Relay Locations.:

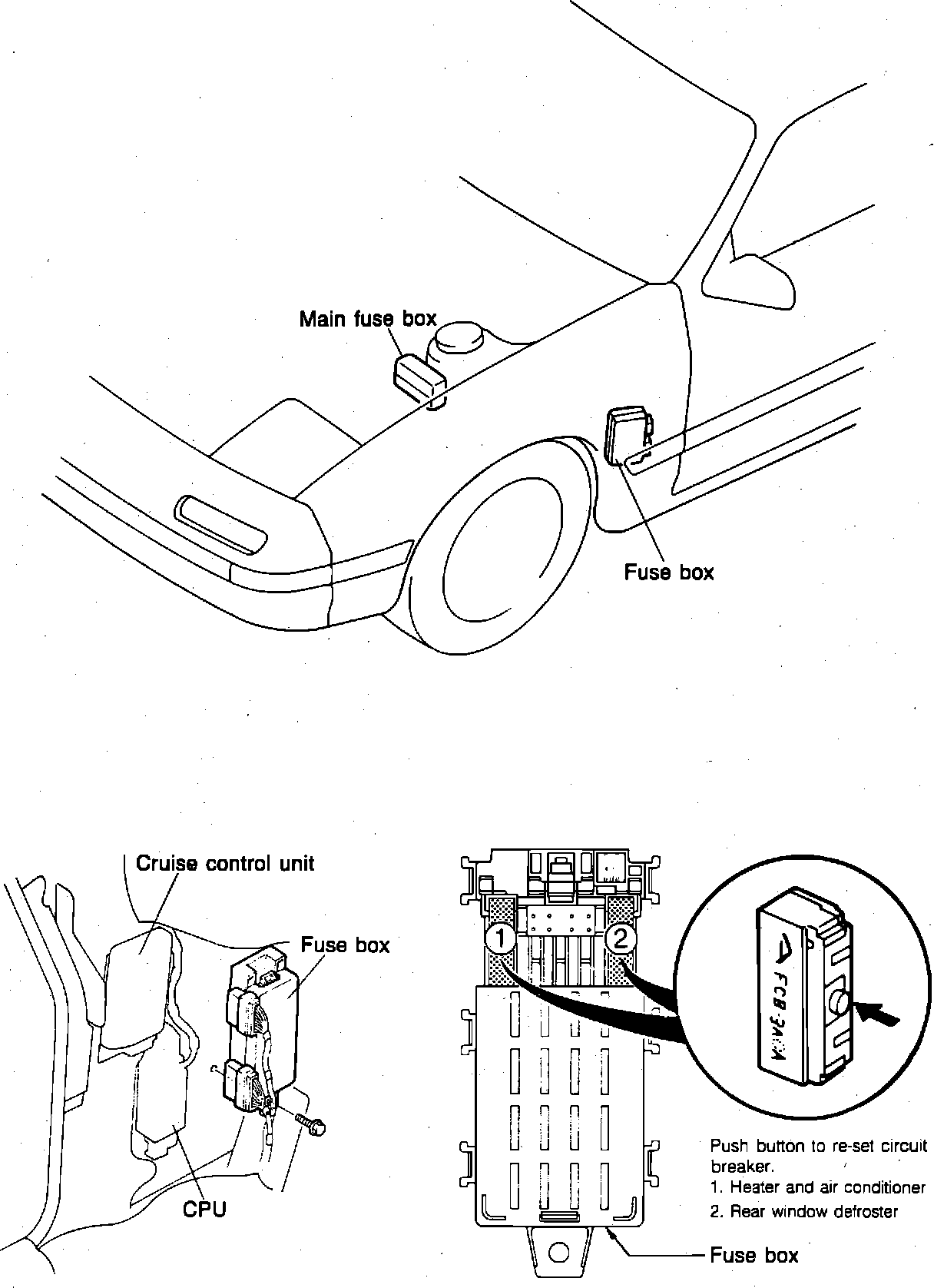

Fuse Box Locations.:




Behind LH Kick Panel

Applicable to: 1986 Models
