Dropping Resistor: Locations

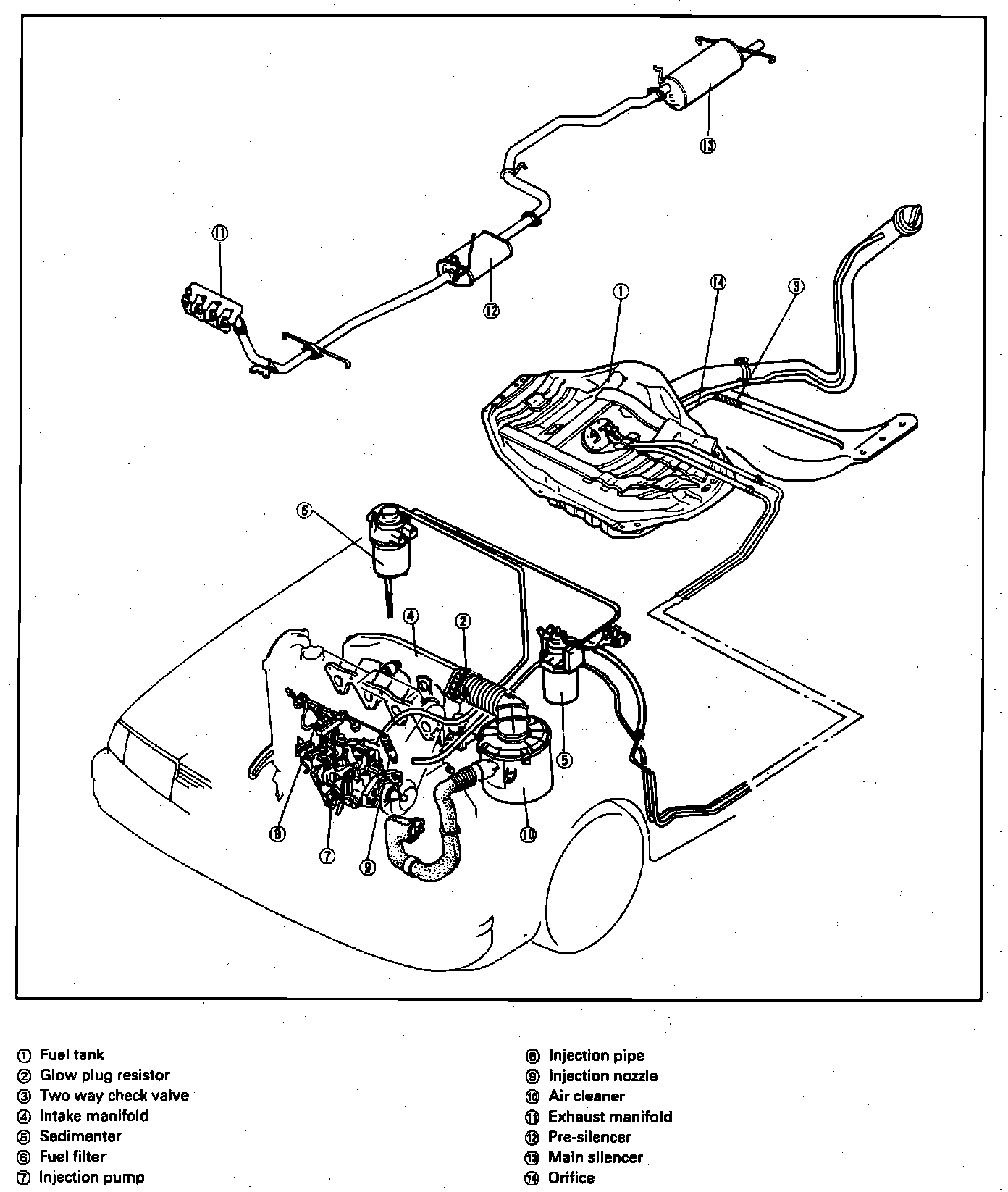

Fuel System.:




Rear LH Side Of Engine Compartment

Applicable to: 1985 Diesel Models
