Control Module: Locations

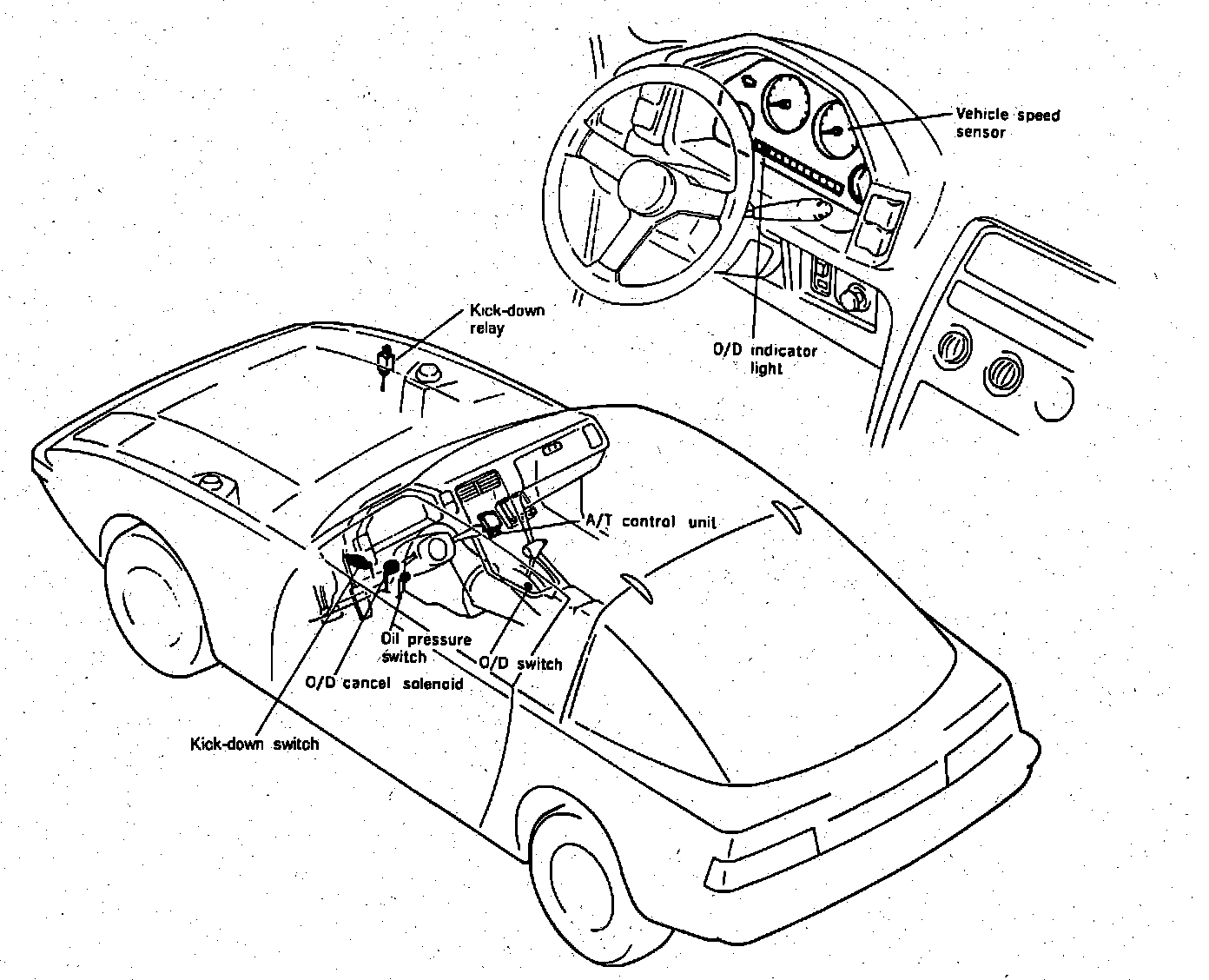

Over Drive System.:
Behind Center Console

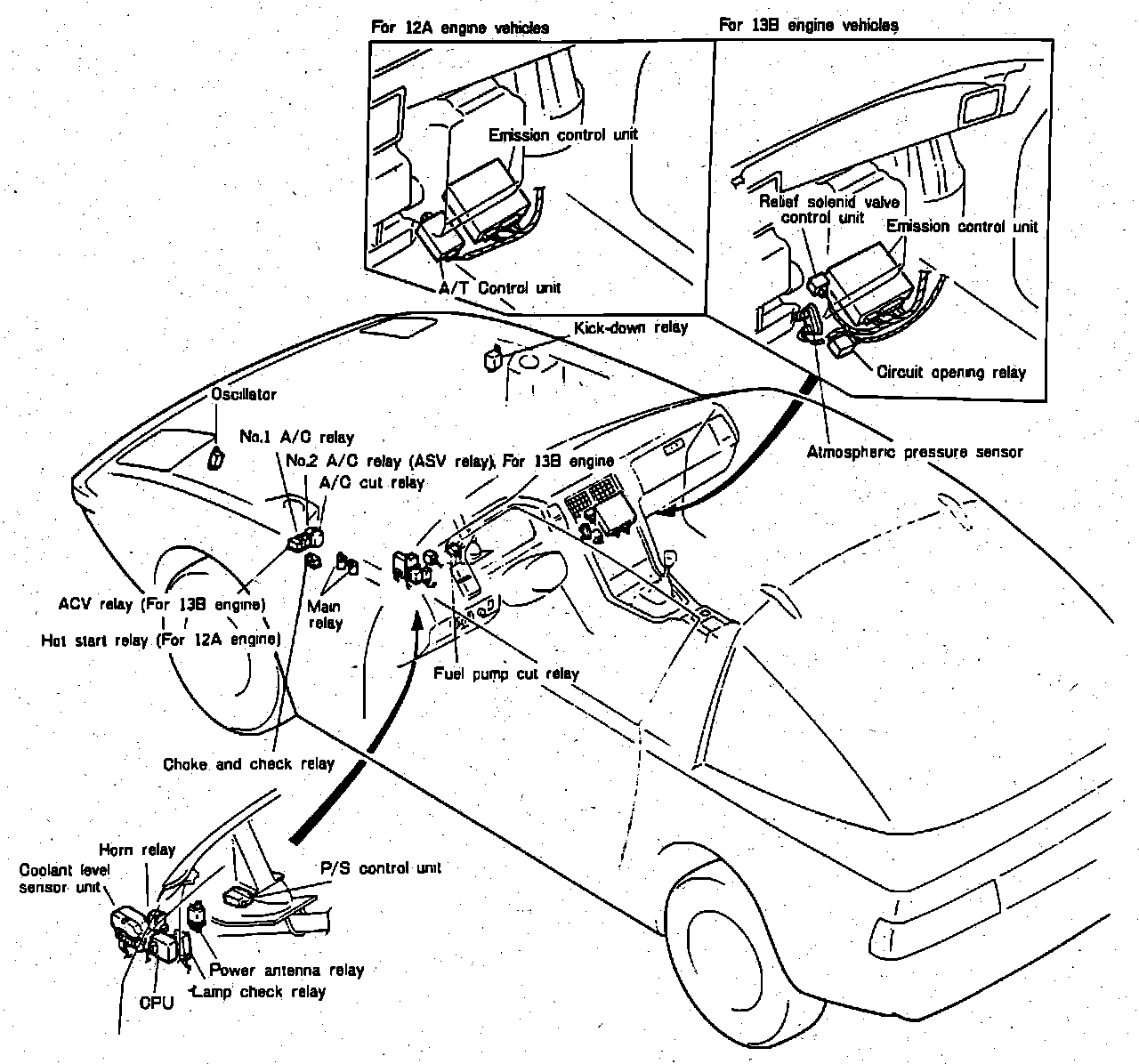

Relay Locations.:
Behind RH Side Of I/P
Applicable to: 1984 Models
