Home >> Mazda >> 1984 >> RX7 2RTR-1146cc 70 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection

Computers and Control Systems: Testing and Inspection

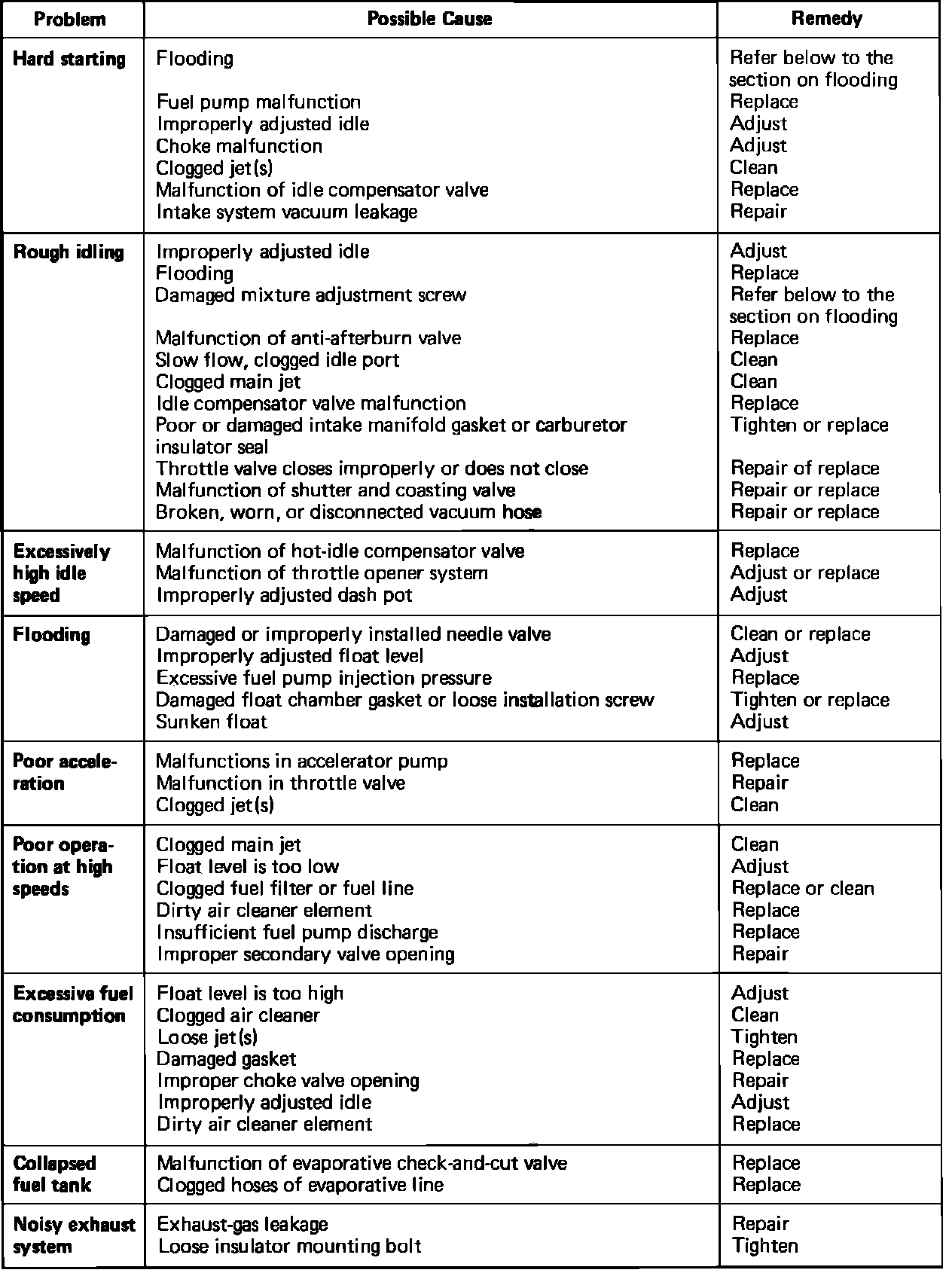

Fig. 1 Troubleshooting Guide:
