Computers and Control Systems: Locations

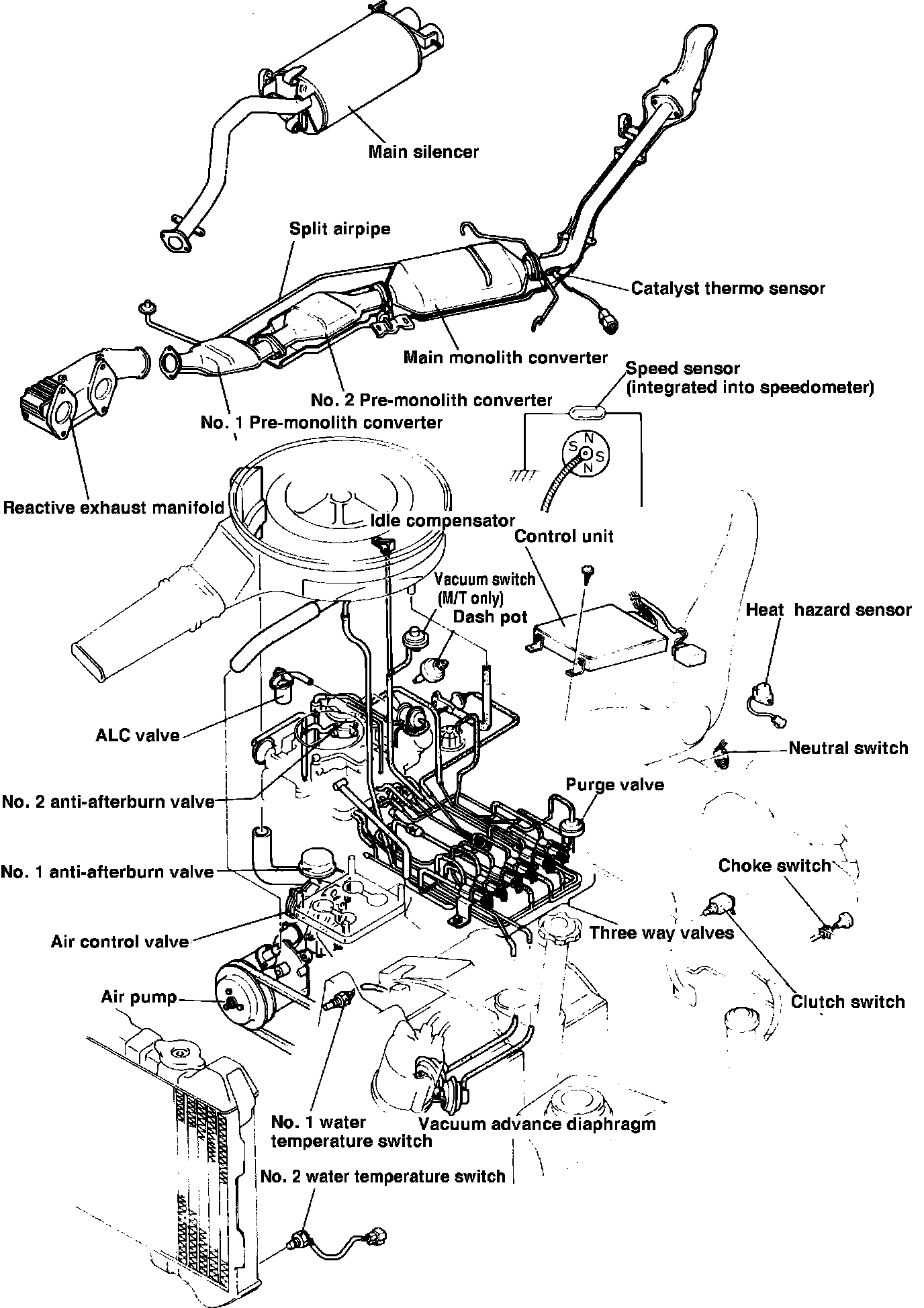

Fig. 2b Engine compartment reference diagram.:

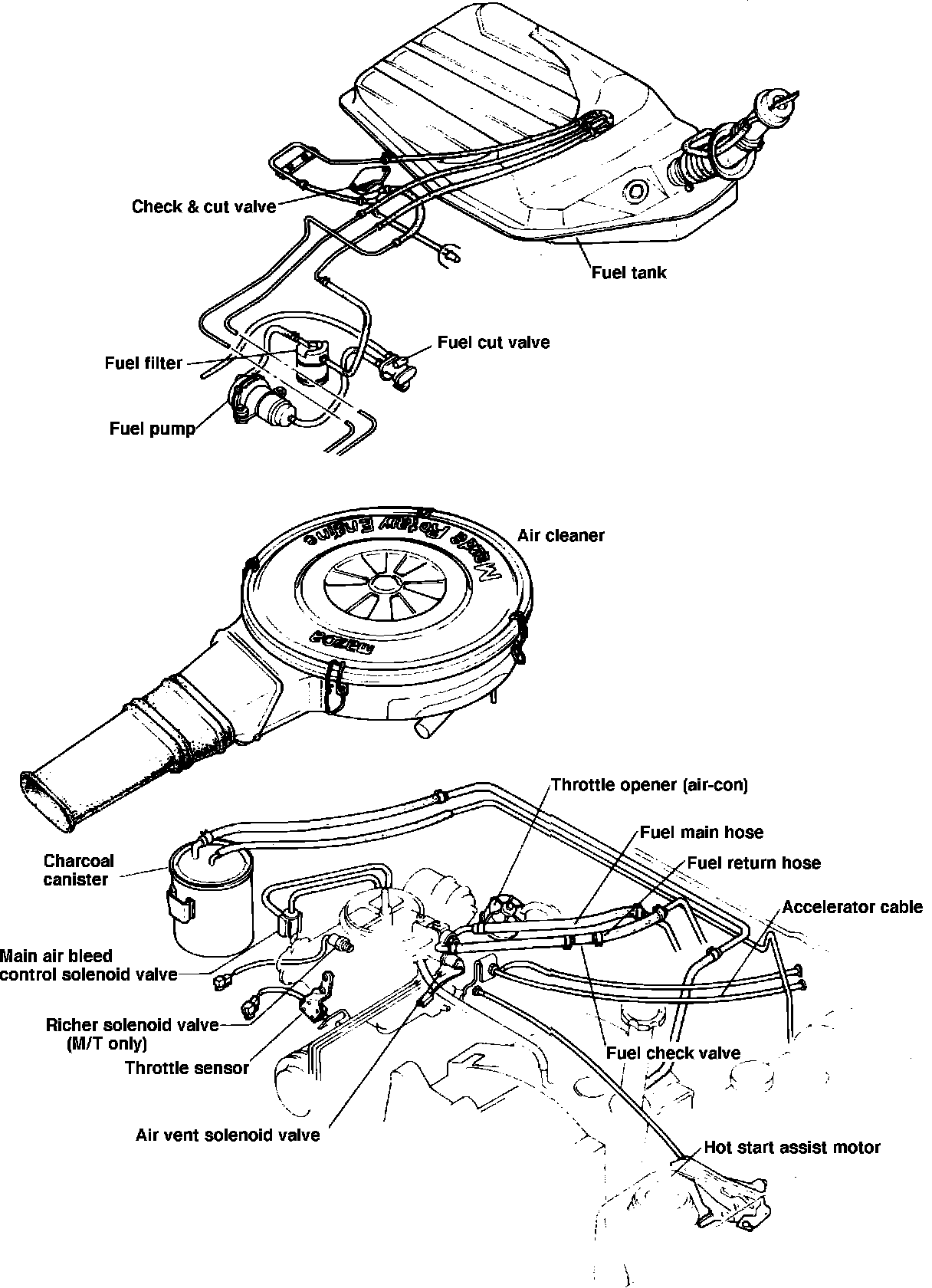

Fig. 3b Engine compartment reference diagram.:
