Vacuum Control Unit, Trailing

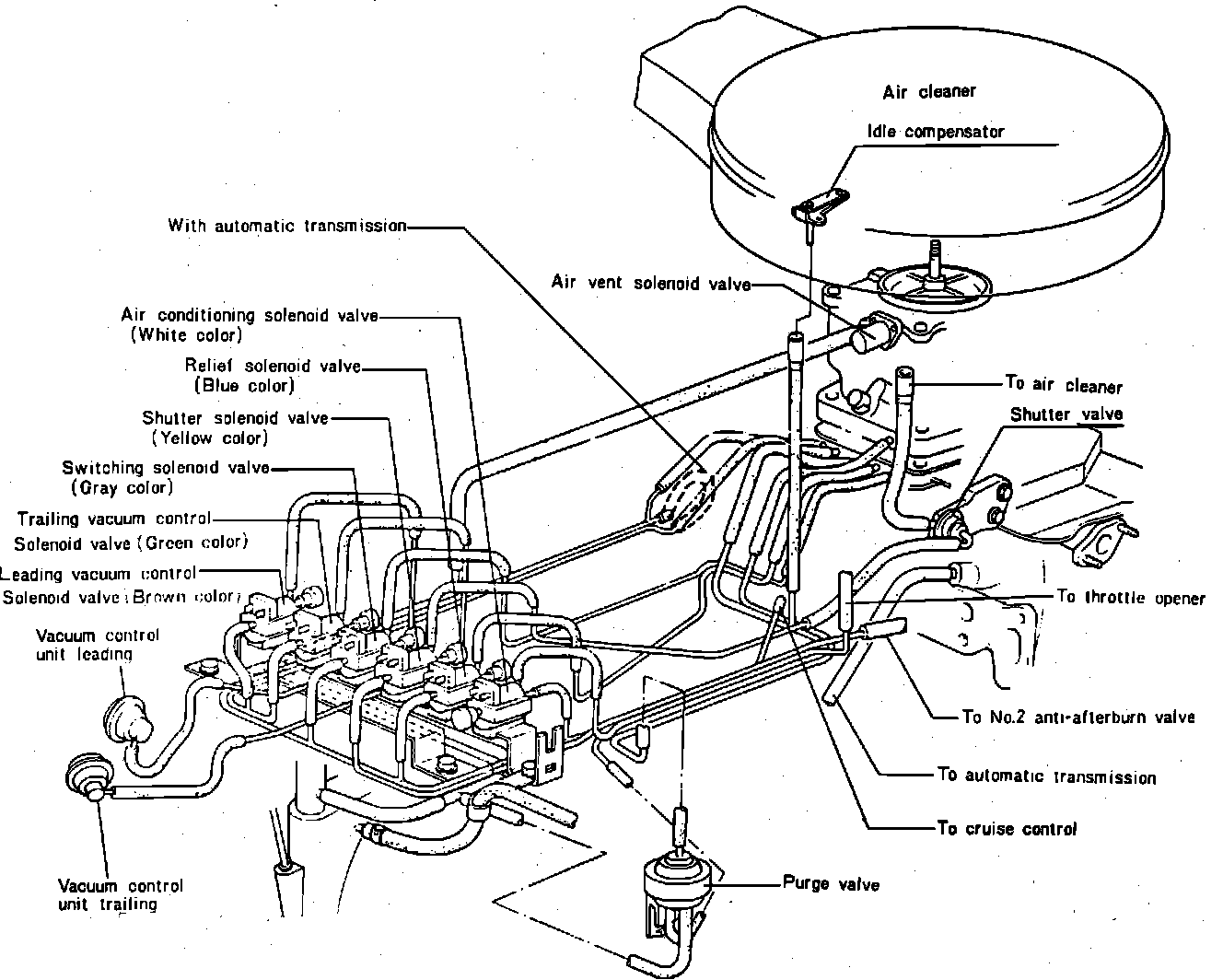

Vacuum Hose Routing.:




LH Side Of Engine

Applicable to: 1983 Models
