Exterior Lighting Module

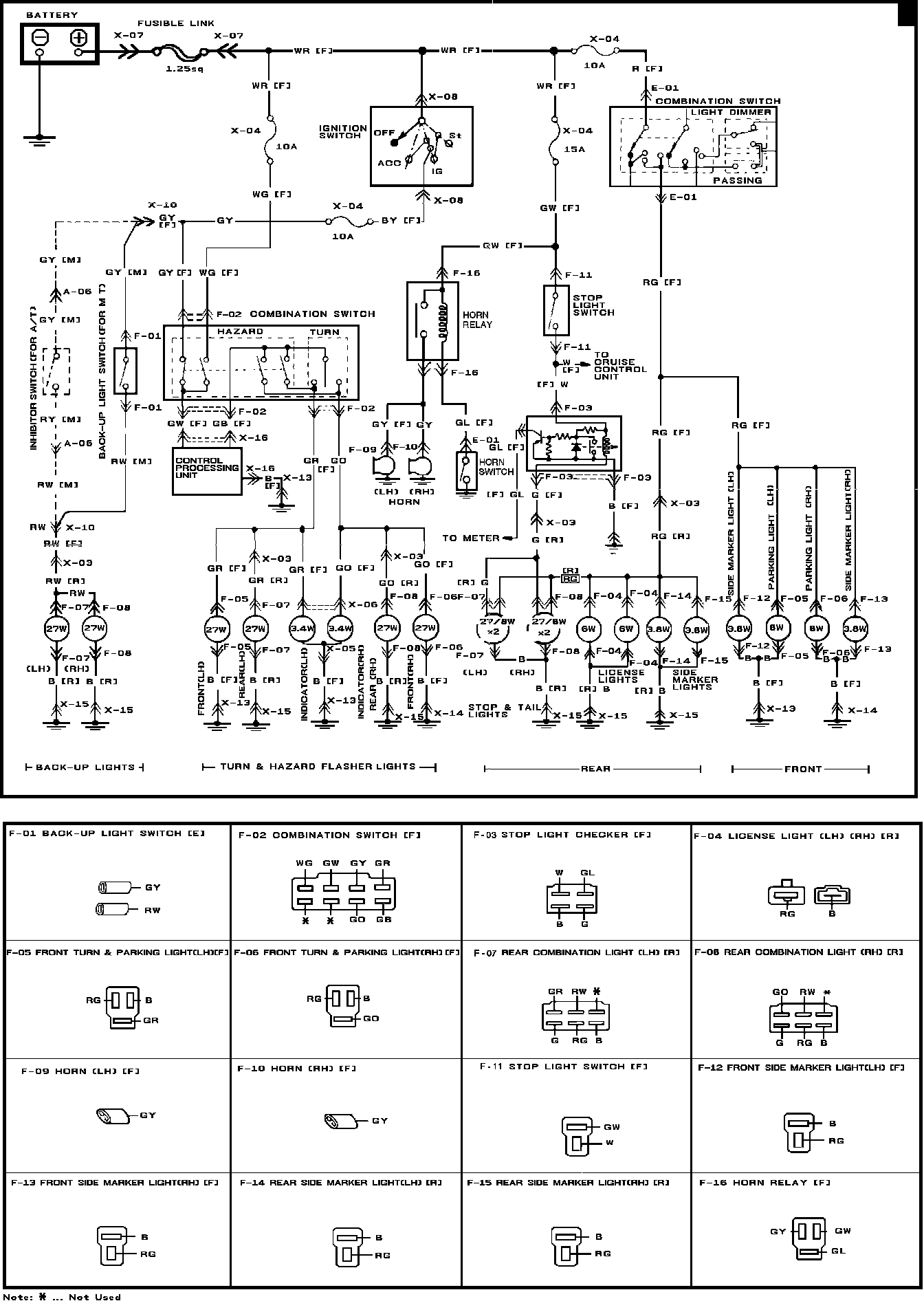

Fig. 24 Back-Up, Front Parking, Hazard Flasher, License, Side Marker, Stop, Tail & Turn Signal Lights & Horn Wiring Circuit:
