Home >> Mazda >> 1983 >> 626 L4-2000 1998cc >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Idle Up Control Valve >> Testing and Inspection >> Schematic Diagram

Schematic Diagram

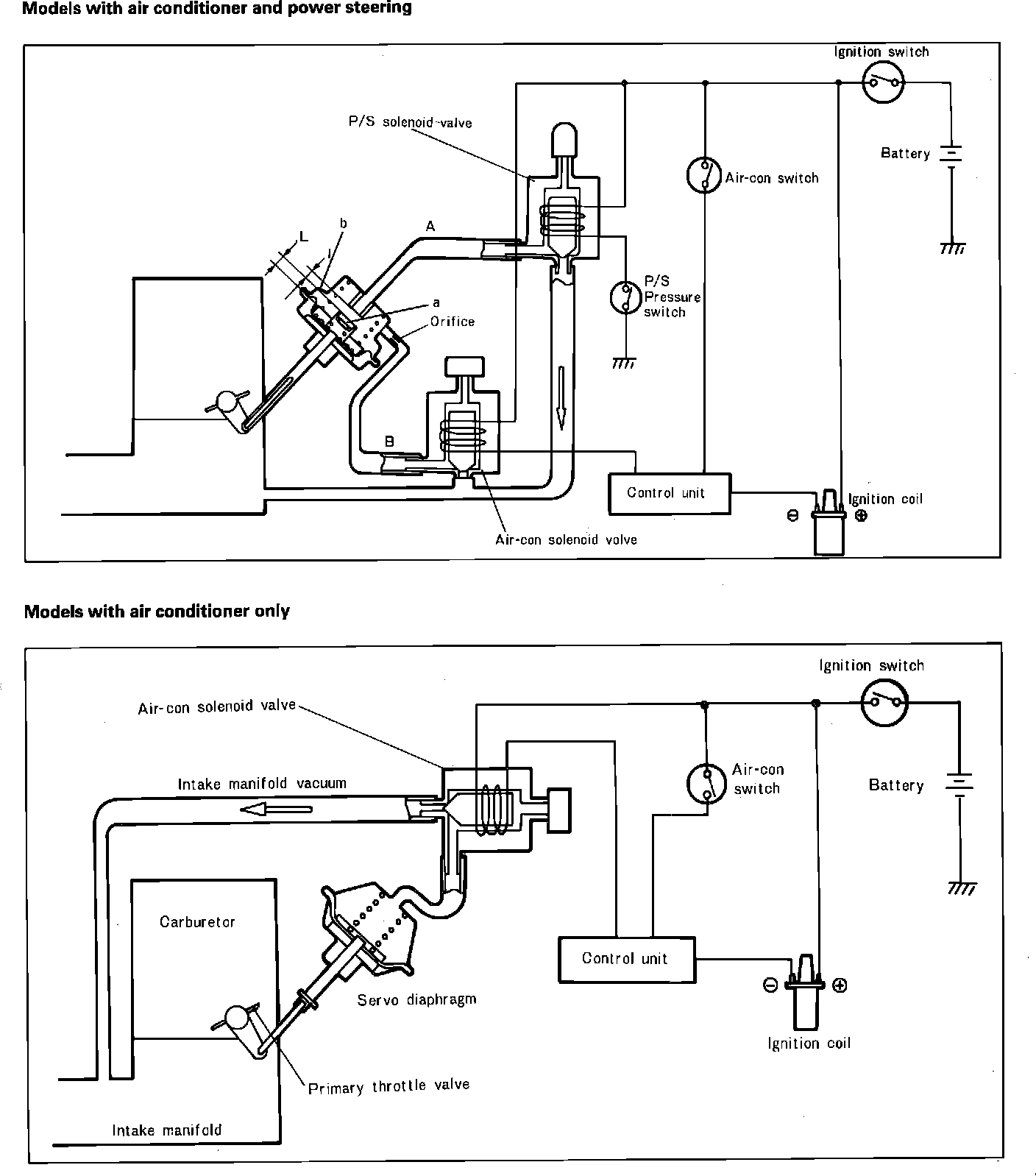

Fig. 31 Idle Up System:
