Home >> Mazda >> 1982 >> 626 L4-2000 1970cc >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Troubleshooting Charts

Troubleshooting Charts

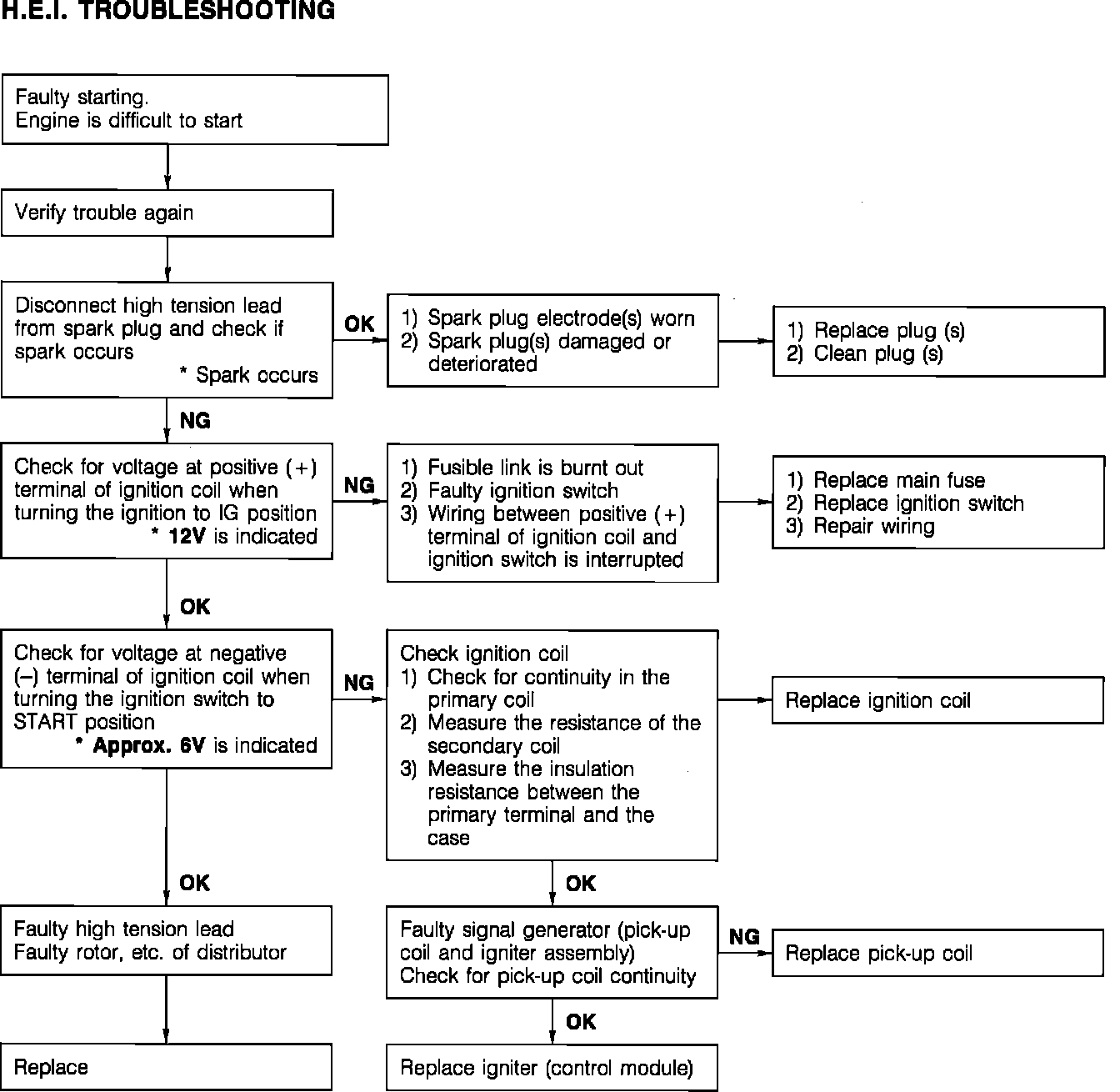

Fig. 18 Troubleshooting table, High Energy Ignition:
