Mazda Truck
>>
2011
>>
CX-7 AWD L4-2.3L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Audio Unit
>>

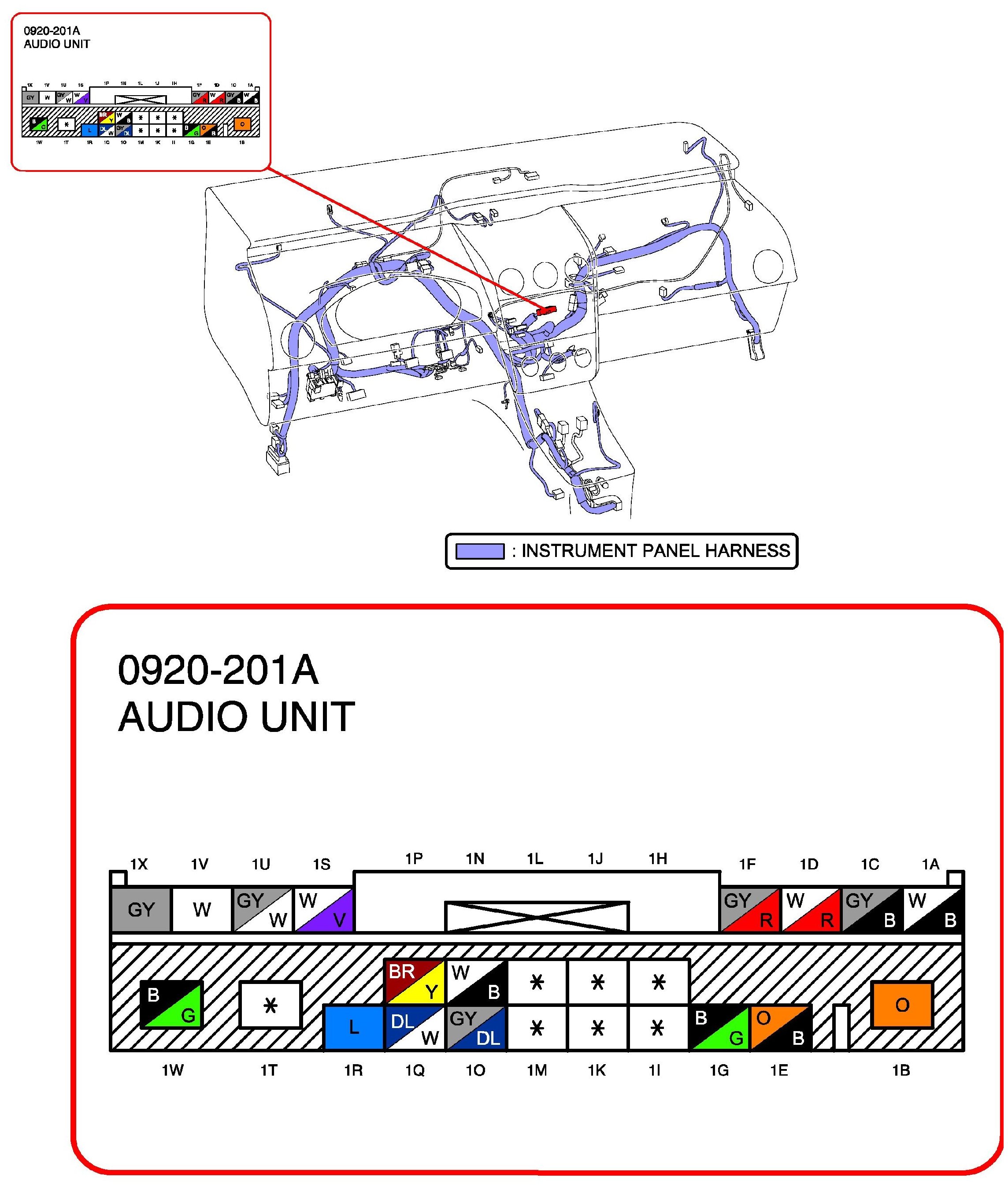

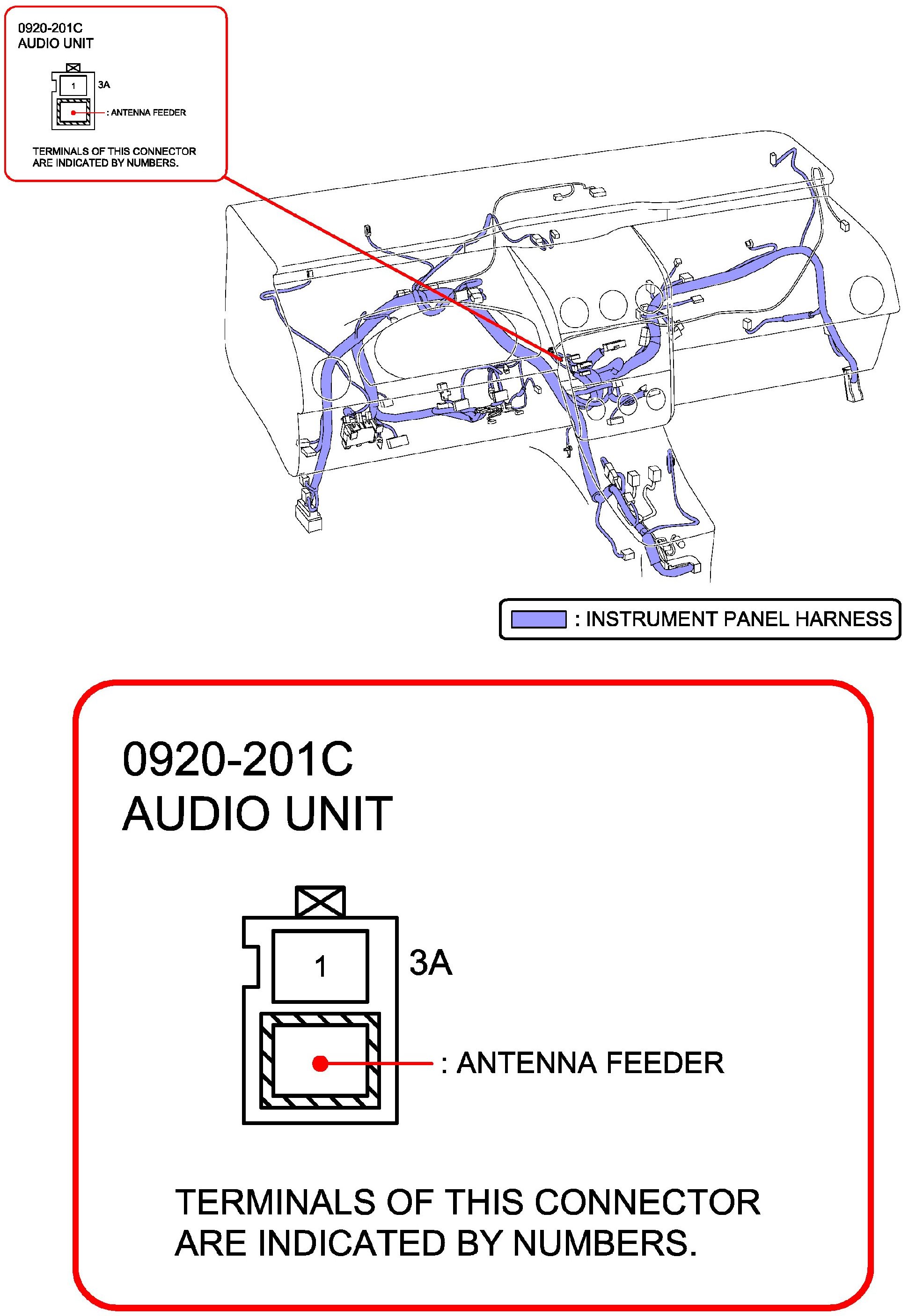

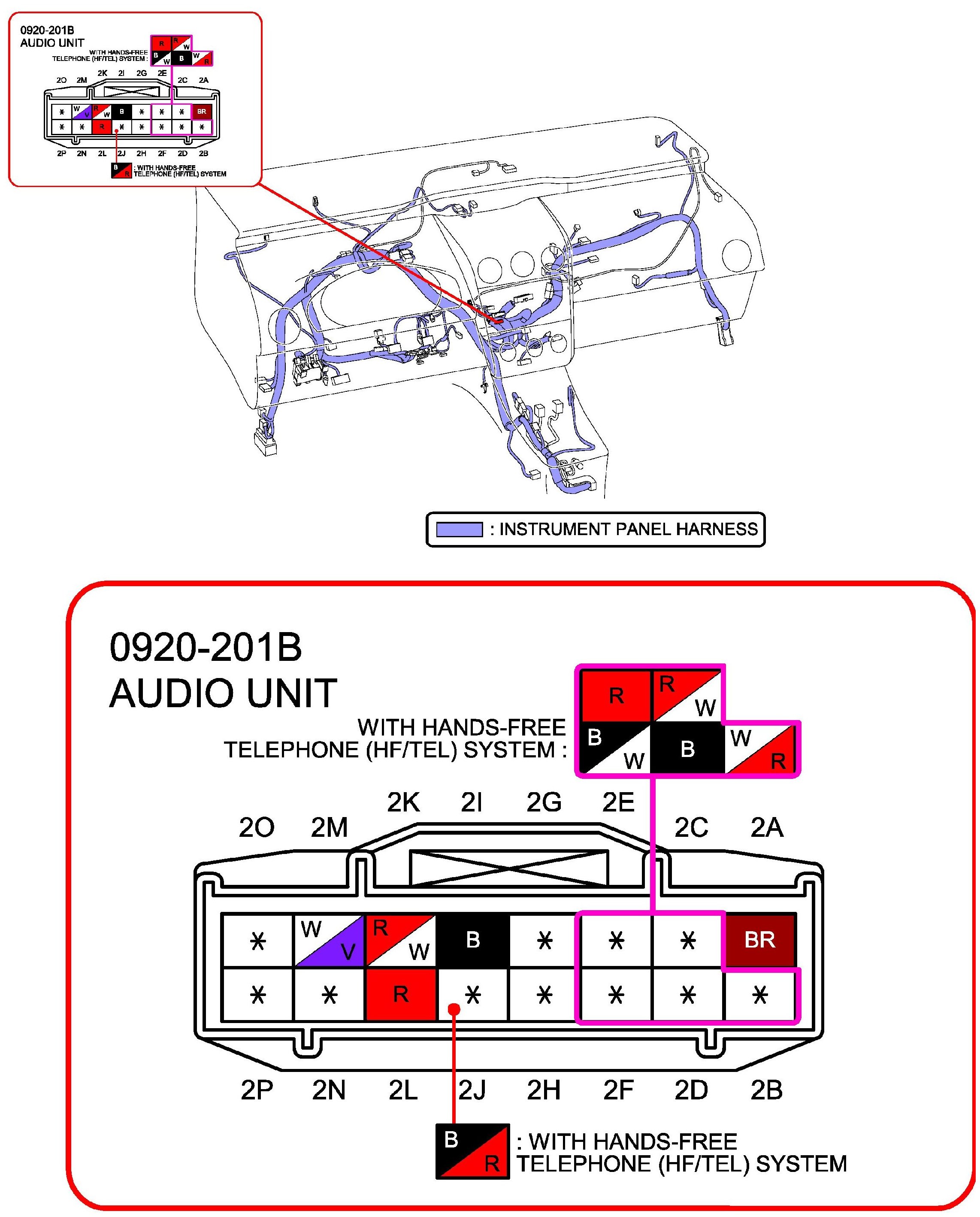

Audio System (Standard Type Audio/With Car-Navigation System)
Audio System (Standard Type Audio/With Car-Navigation System)
