Mazda Truck
>>
2010
>>
CX-7 AWD L4-2.3L Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Vehicle Speed Sensor
>>
Locations
Vehicle Speed Sensor: Locations

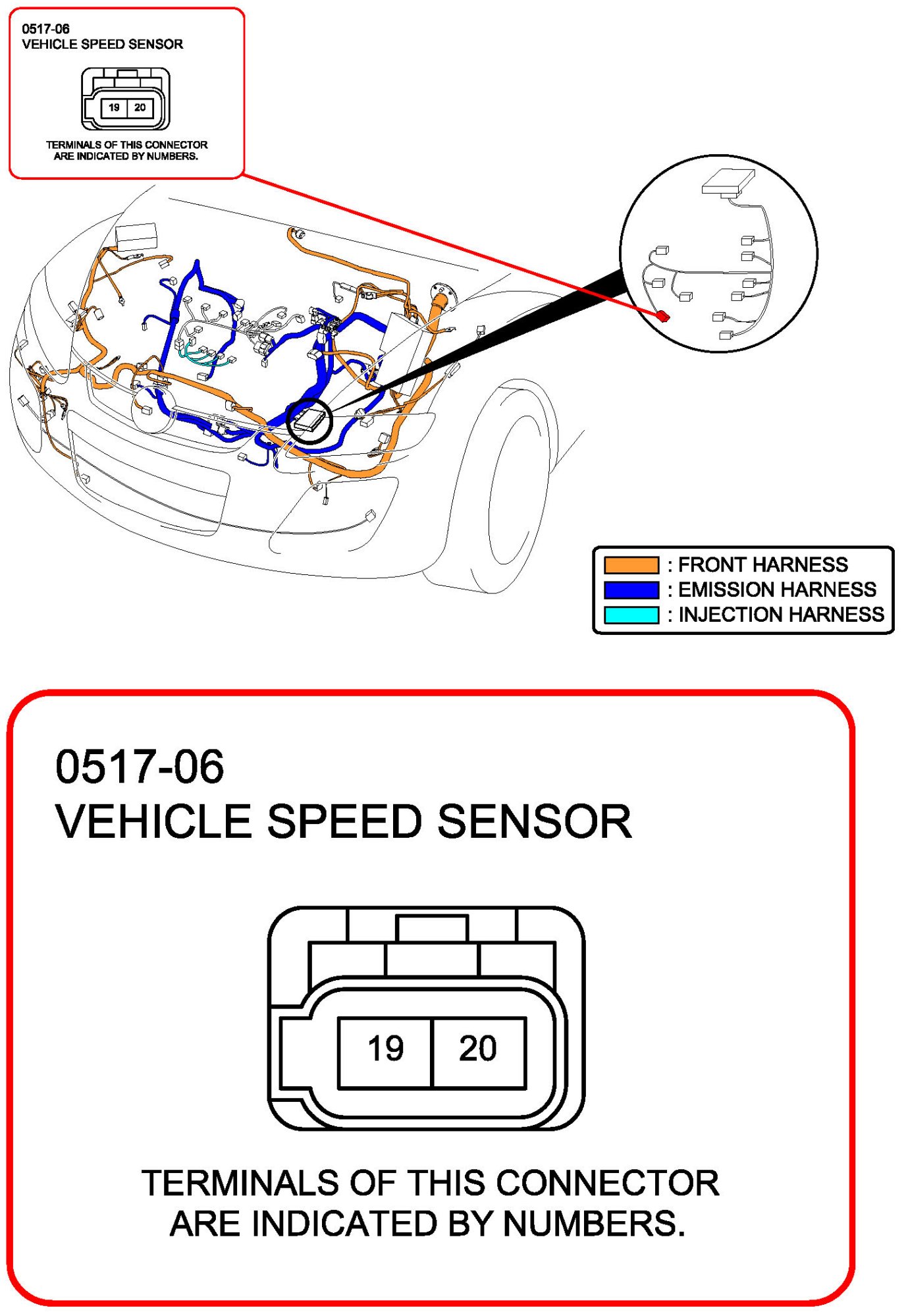

AW6A-EL, AW6AX-EL
Vehicle Speed Sensor:

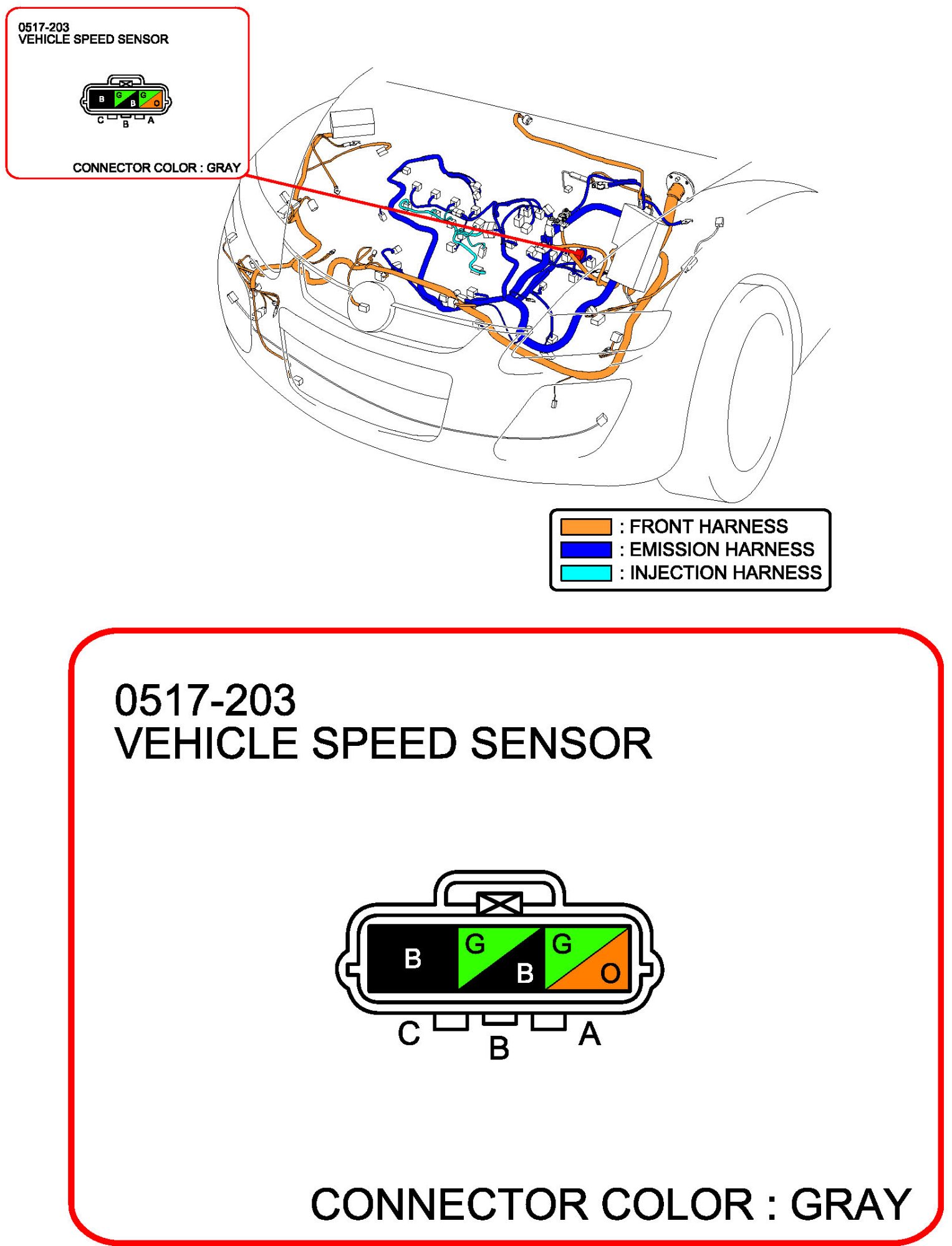

FS5A-EL
Vehicle Speed Sensor:
