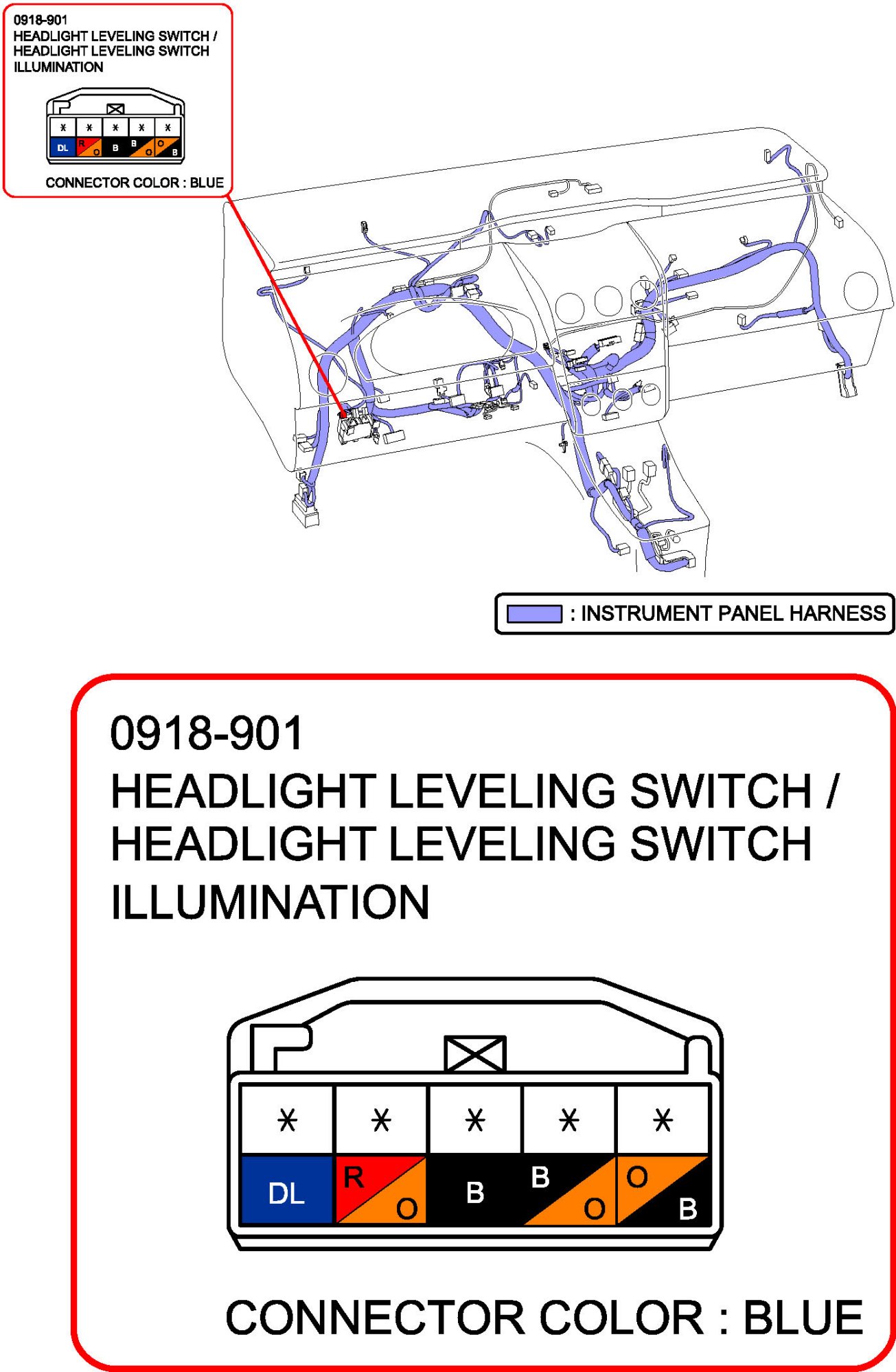

Headlight Leveling Switch/Headlight Leveling Switch/Illumination
Headlight Leveling Switch/Headlight Leveling Switch/Illumination
Headlight Levelling Switch/Headlight Levelling Switch Illumination:
