Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>

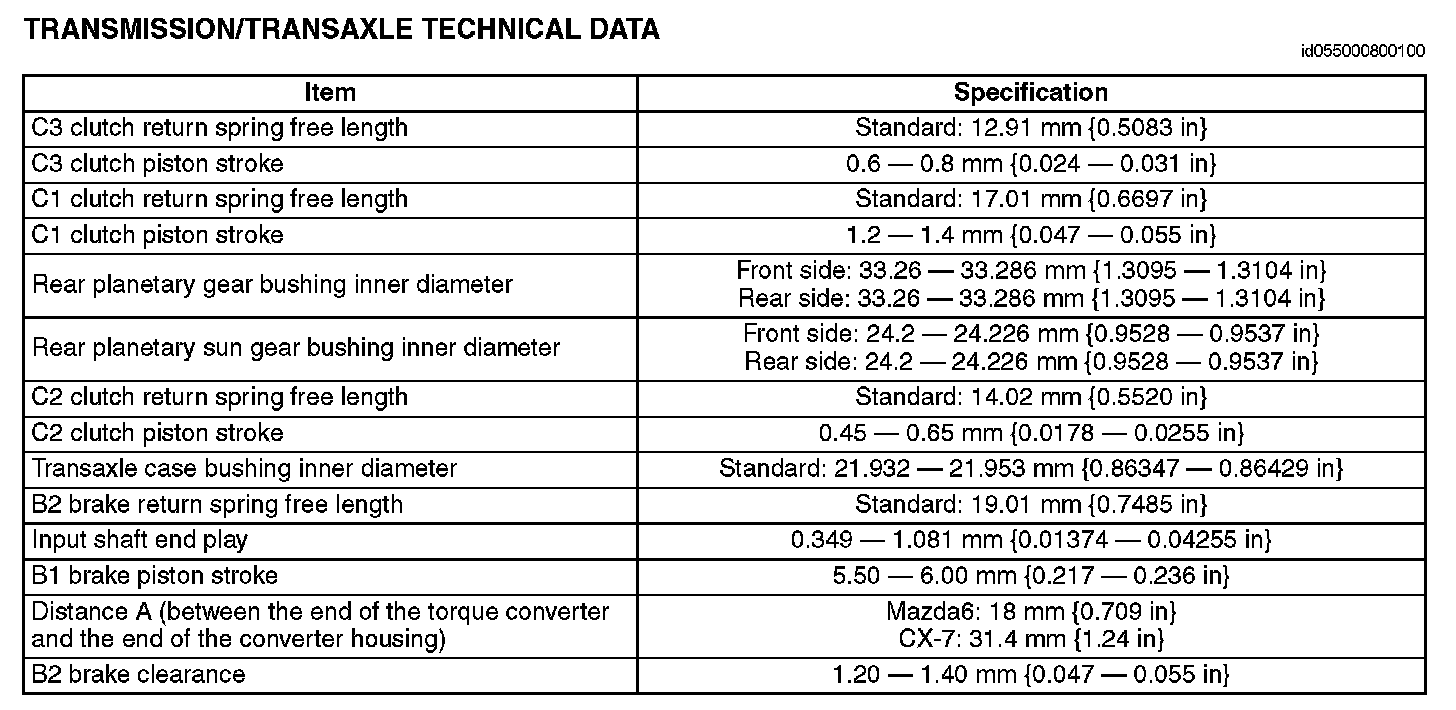

Transmission/Transaxle Technical Data AW6A-El
Transmission/Transaxle Technical Data AW6A-El
Transmission/Transaxle Technical Data
Transmission/Transaxle Technical Data:
Counter drive gear starting and rotating torque
