Request Switch (Driver-Side)
Request Switch (Driver-Side)

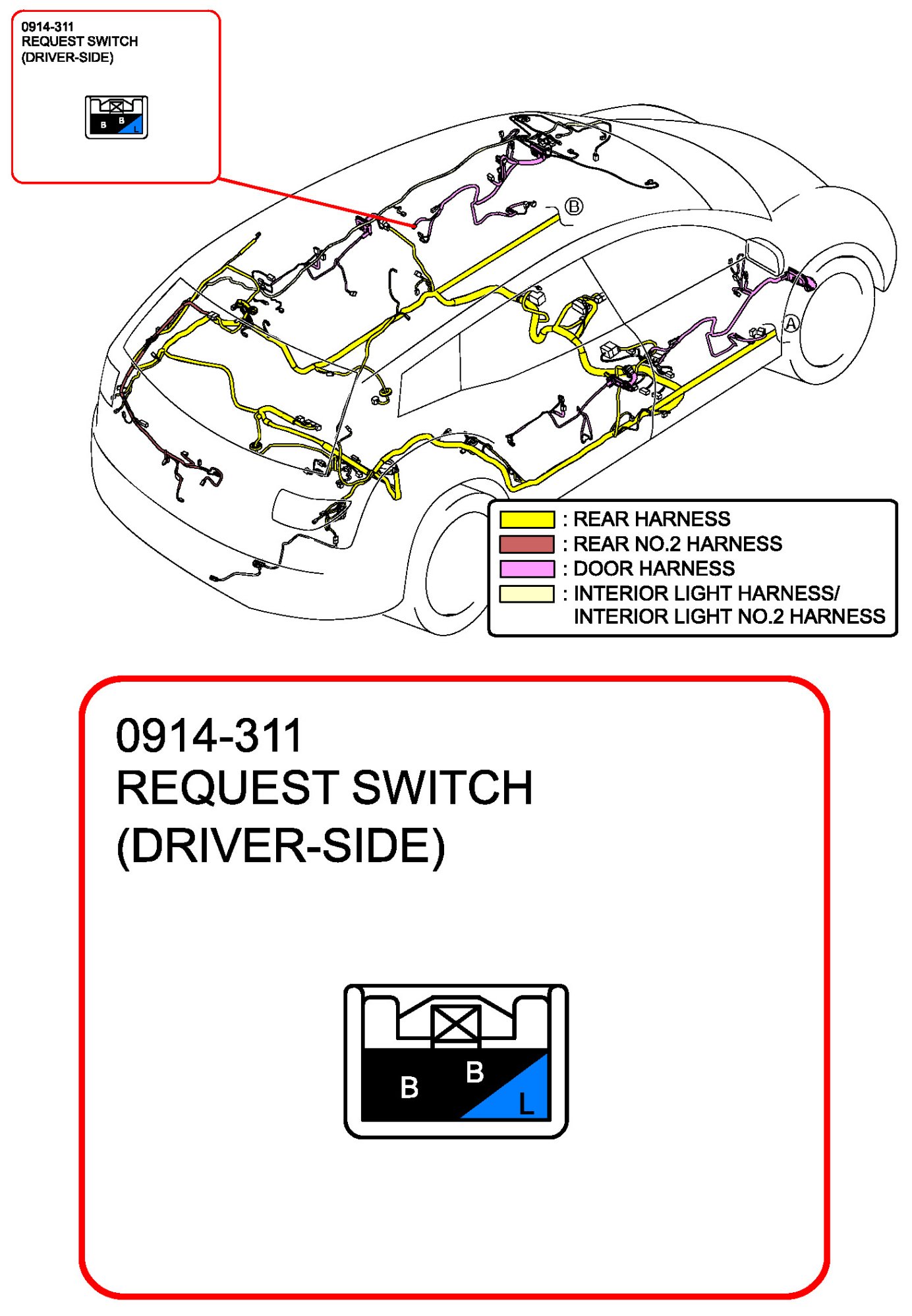

Request Switch (Driver-Side):

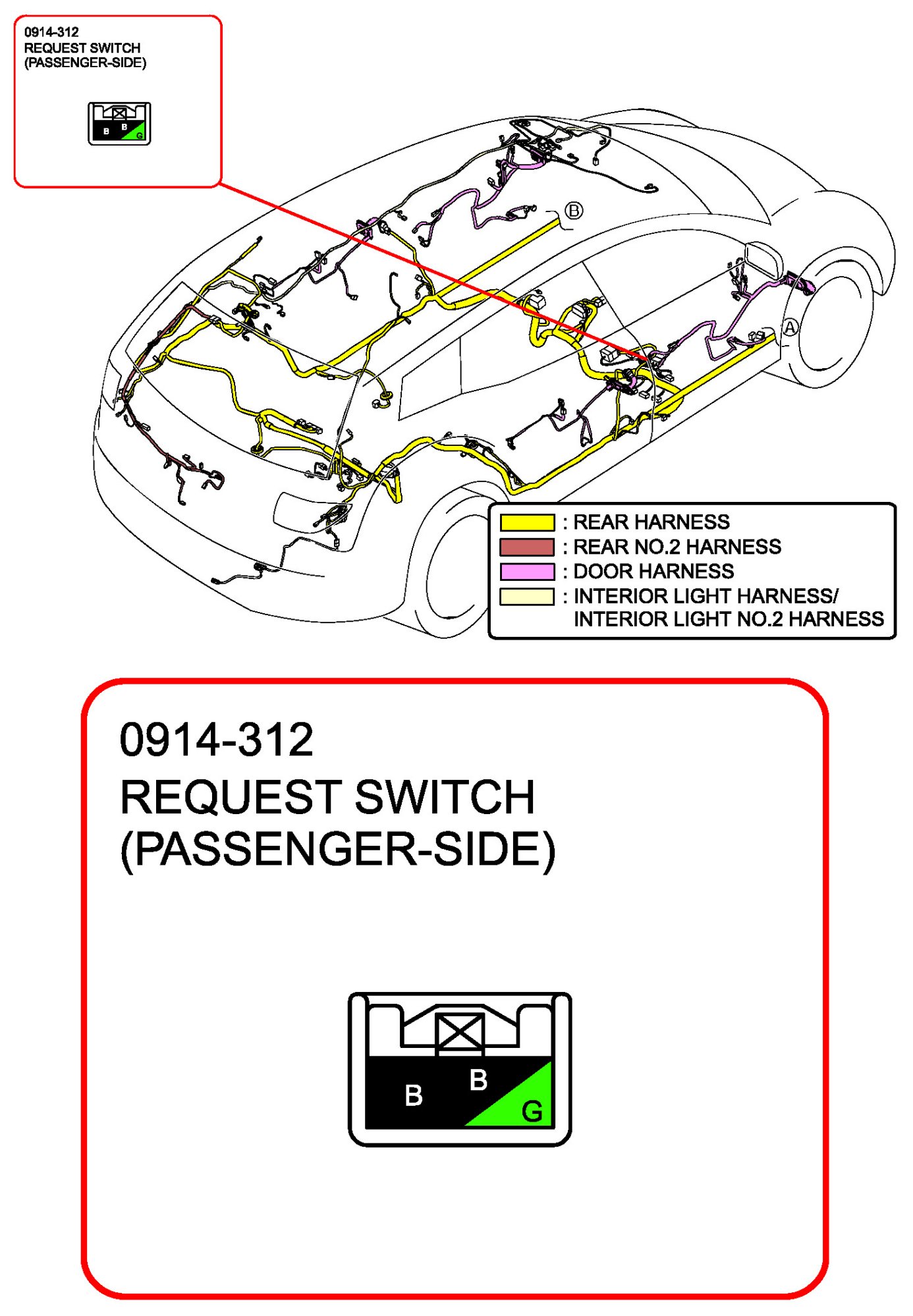

Request Switch (Passenger-Side):
