Power Window Main Switch/Power Outer Mirror Switch

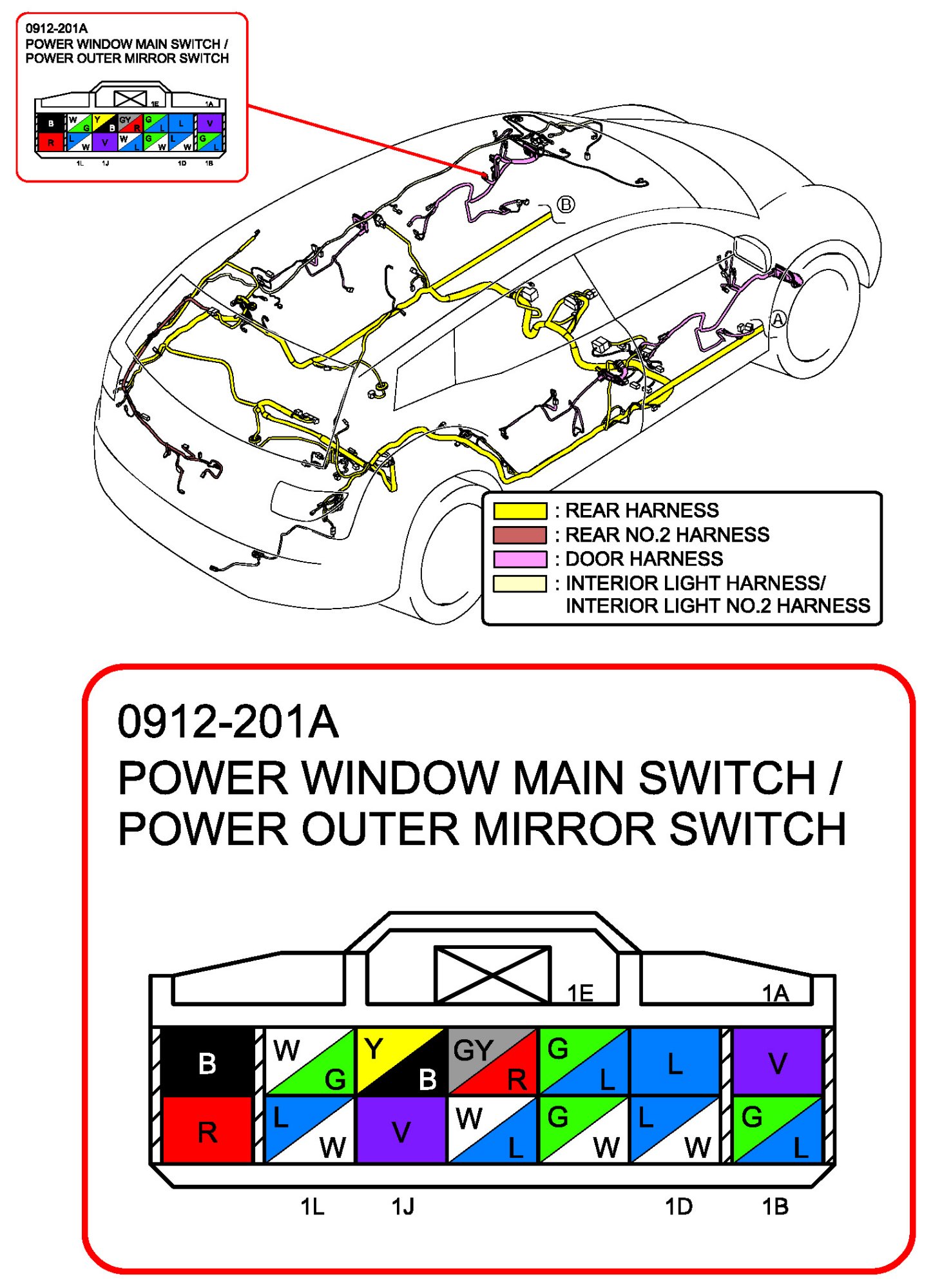

Power Window Main Switch/Power Outer Mirror Switch:



Power Window Main Switch:



Rear Power Window Subswitch LR:

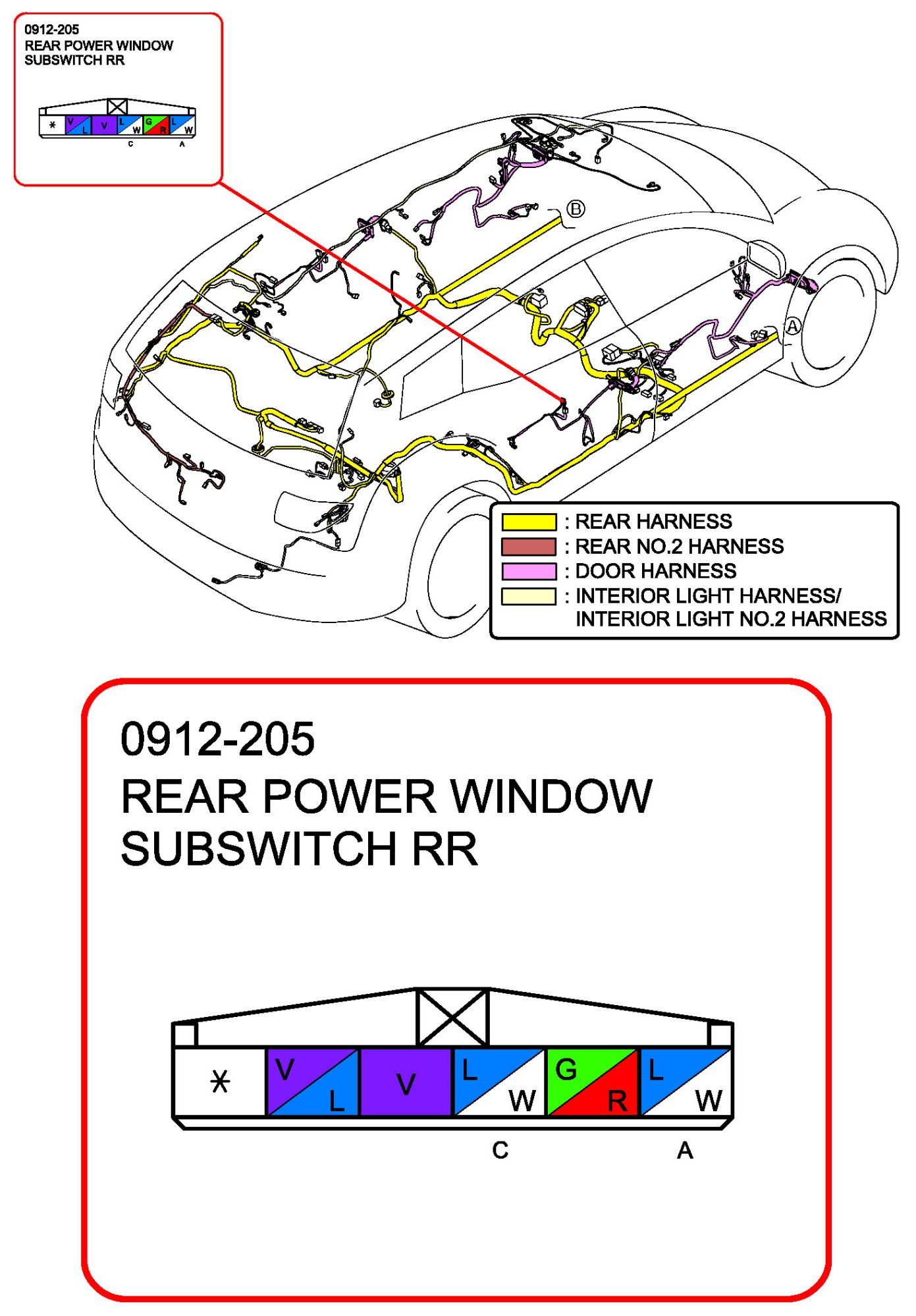

Rear Power Window Subswitch RR:



Power Window Subswitch:
