FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mazda Truck
>>
2007
>>
CX-7 L4-2.3L Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>

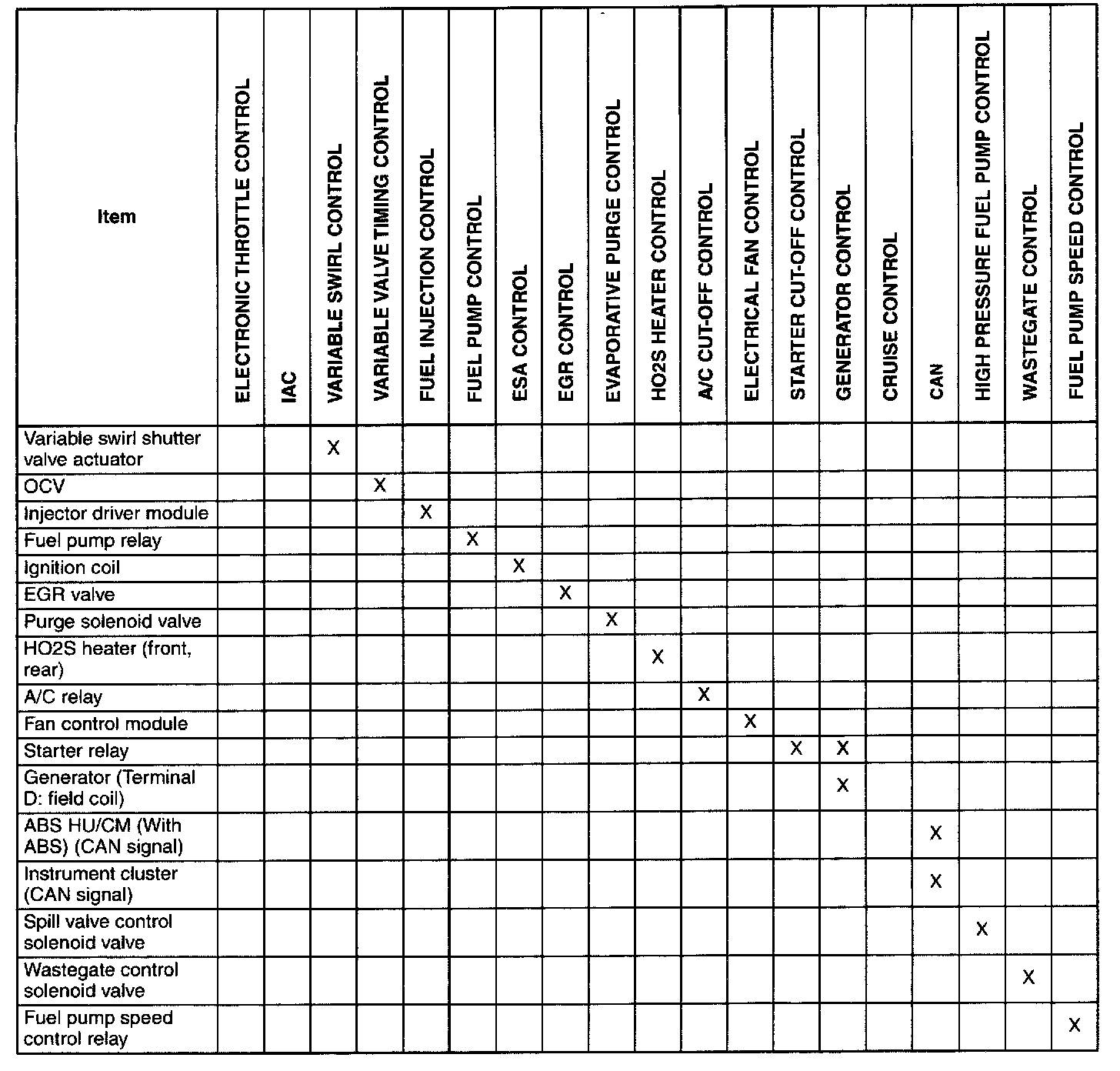

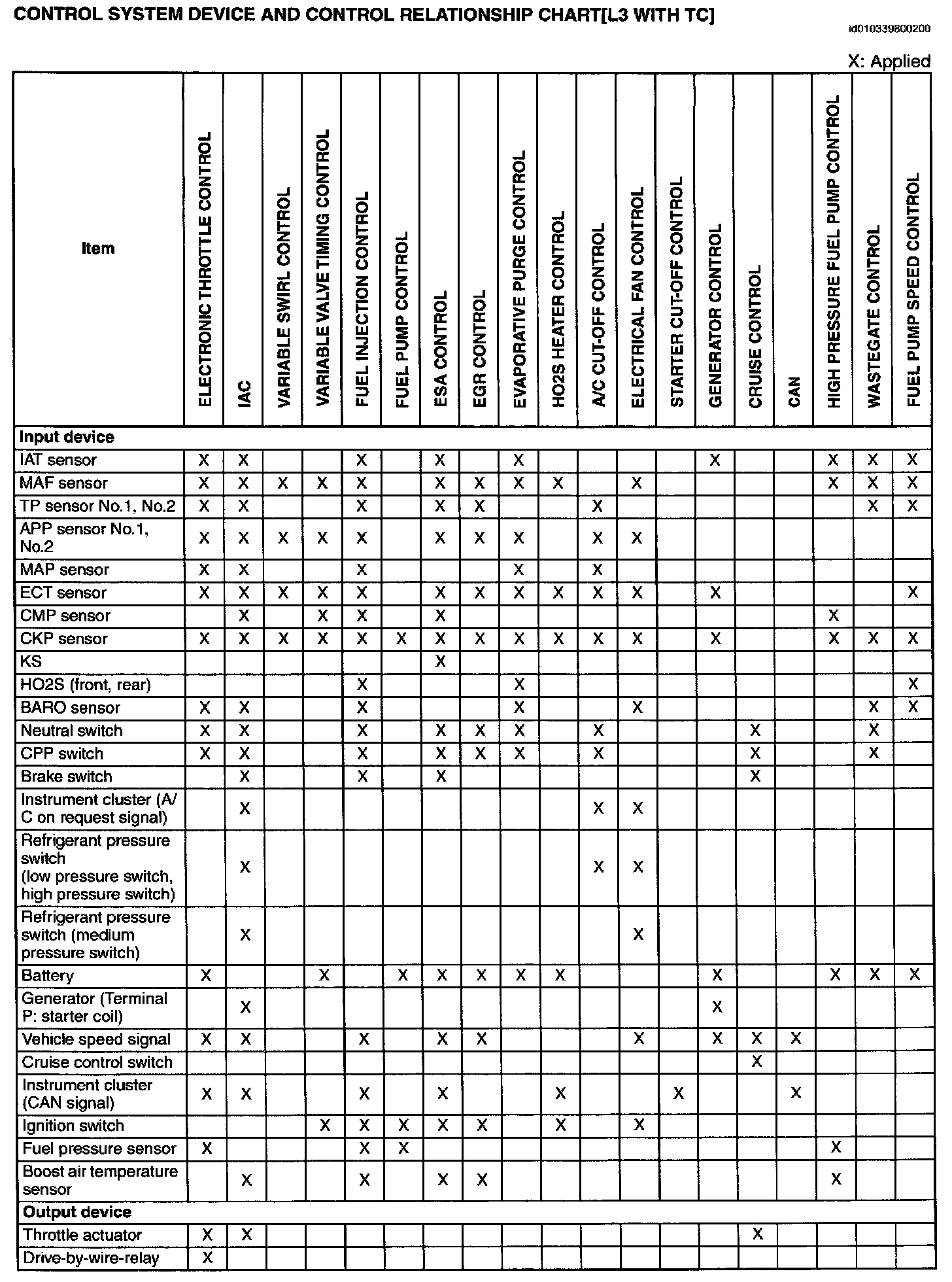

Control System Device and Control Relationship Chart
Control System Device and Control Relationship Chart
Control System Device And Control Relationship Chart:
Control System Device And Control Relationship Chart:
