Technical Data

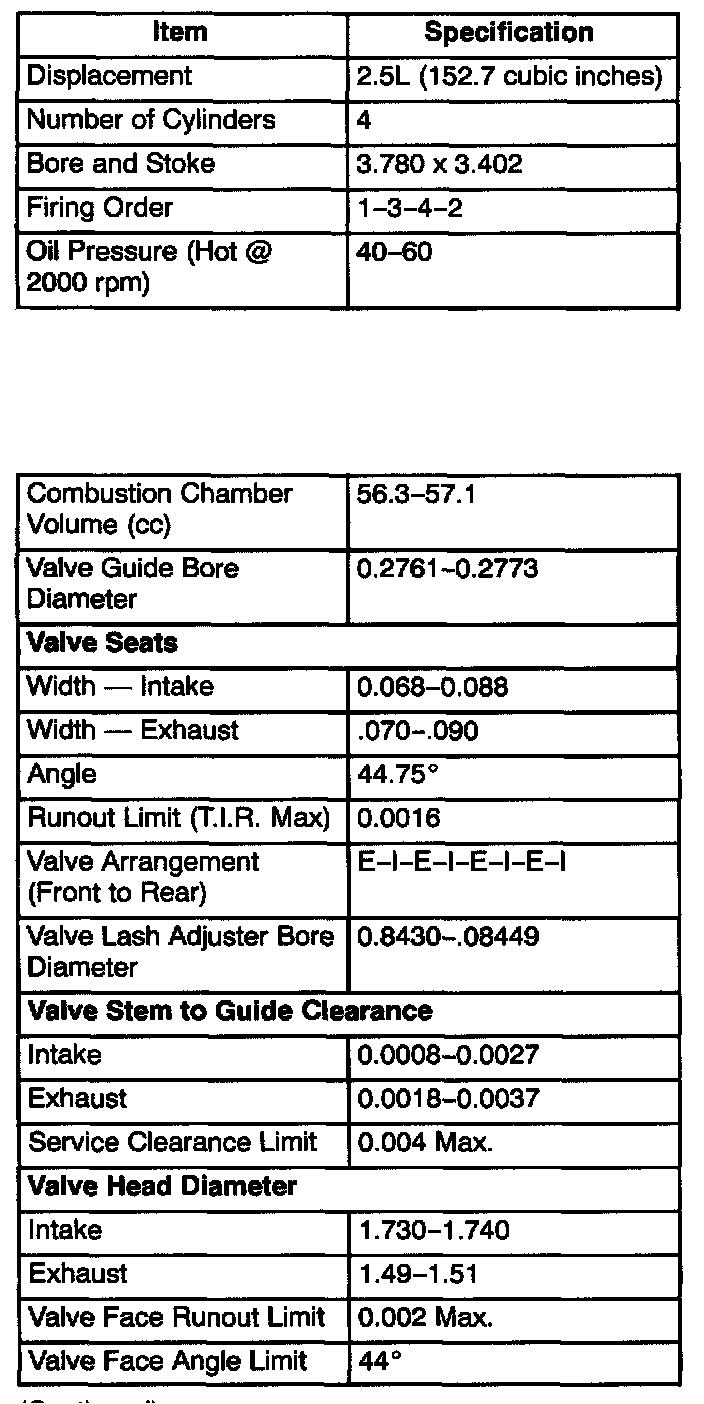

GENERAL SPECIFICATIONS

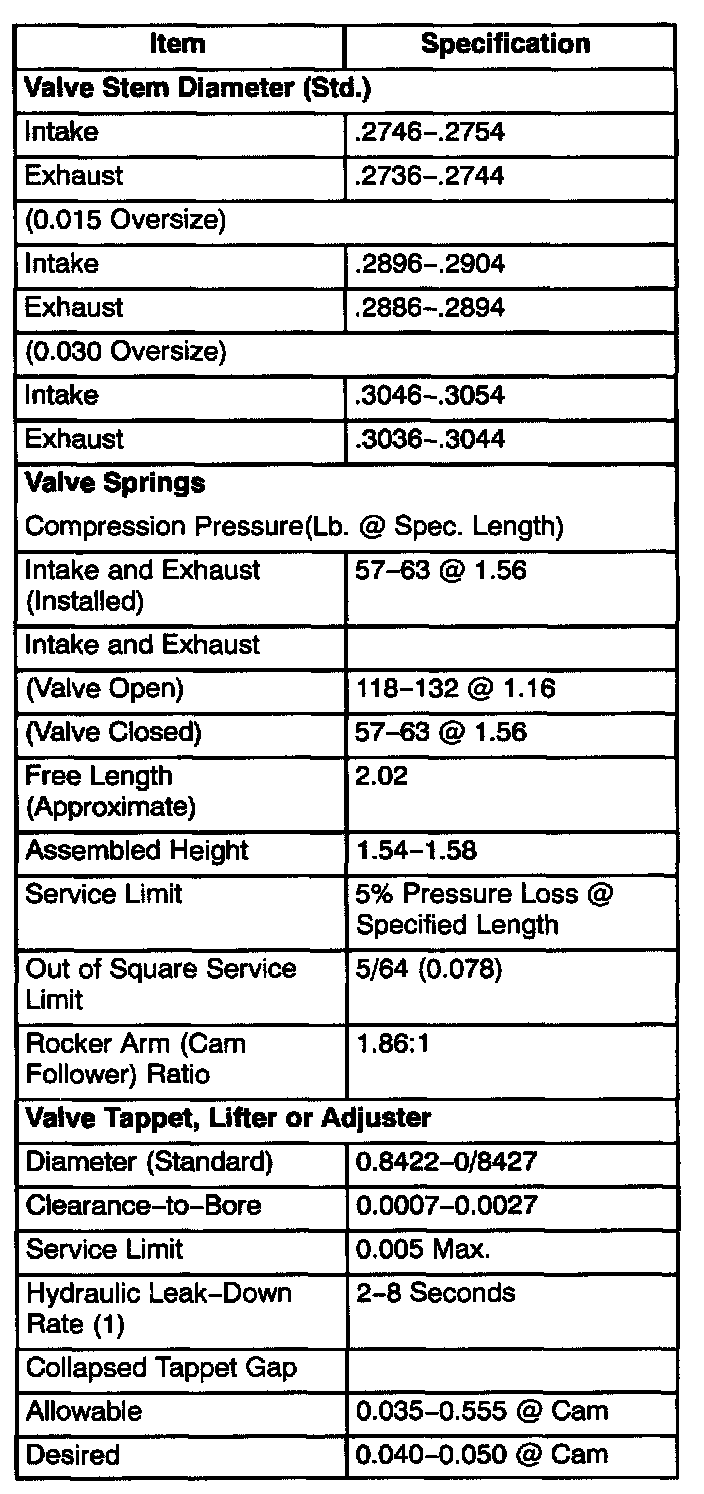

CAMSHAFT SPECIFICATIONS

CYLINDER BLOCK SPECIFICATIONS

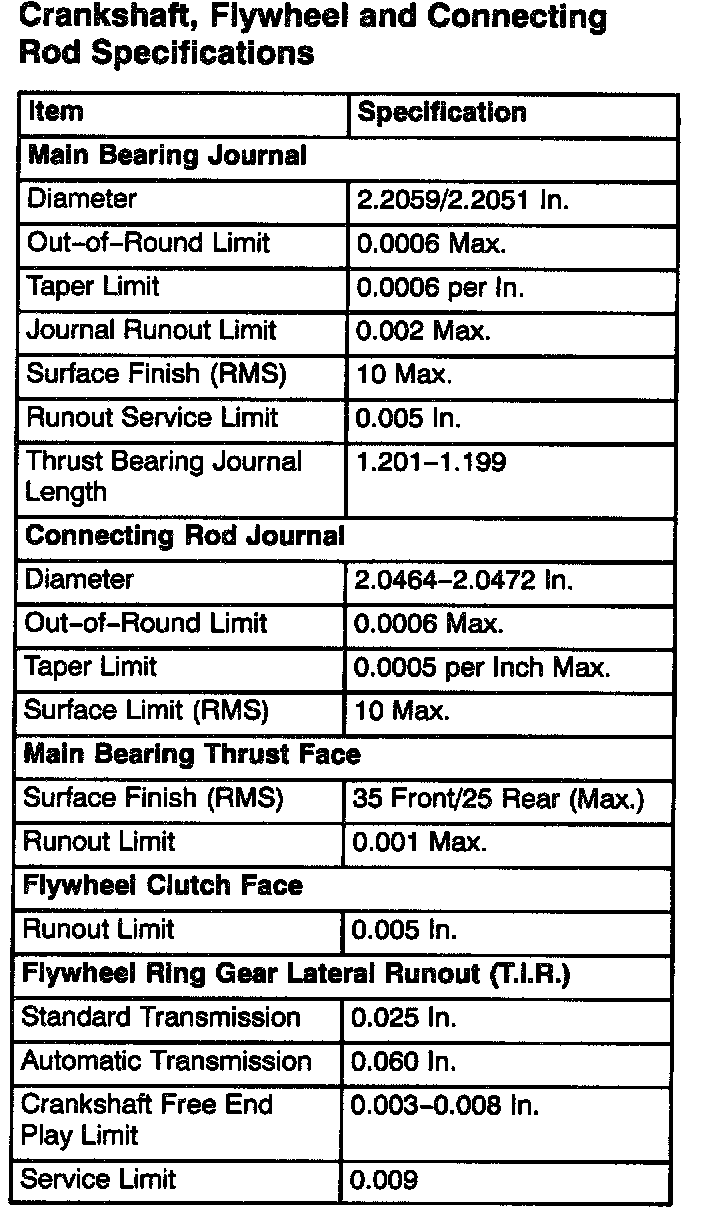

CRANKSHAFT, FLYWHEEL AND CONNECTING ROD SPECIFICATIONS

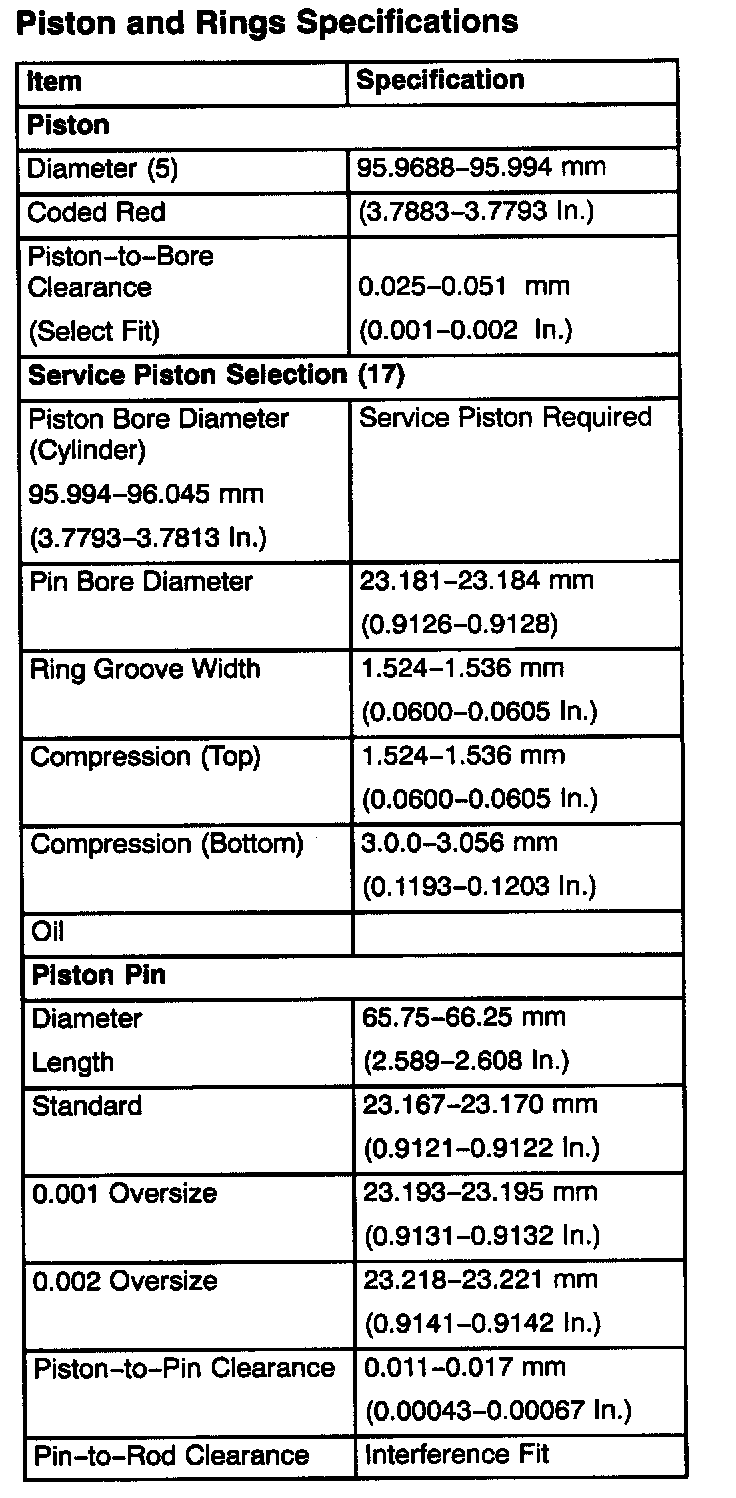

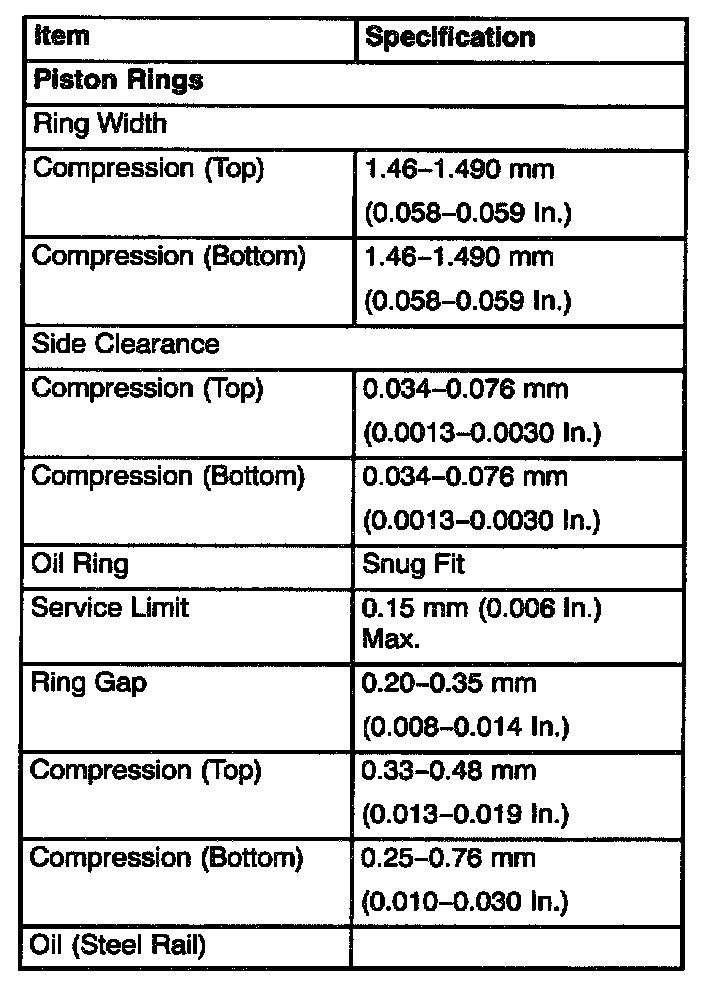

PISTON AND RINGS SPECIFICATIONS
