Mazda Truck
>>
1993
>>
Navajo 2WD V6-4.0L OHV
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Computers and Control Systems
>>
Engine Control Module
>>
With Calif. Emissions
With Calif. Emissions

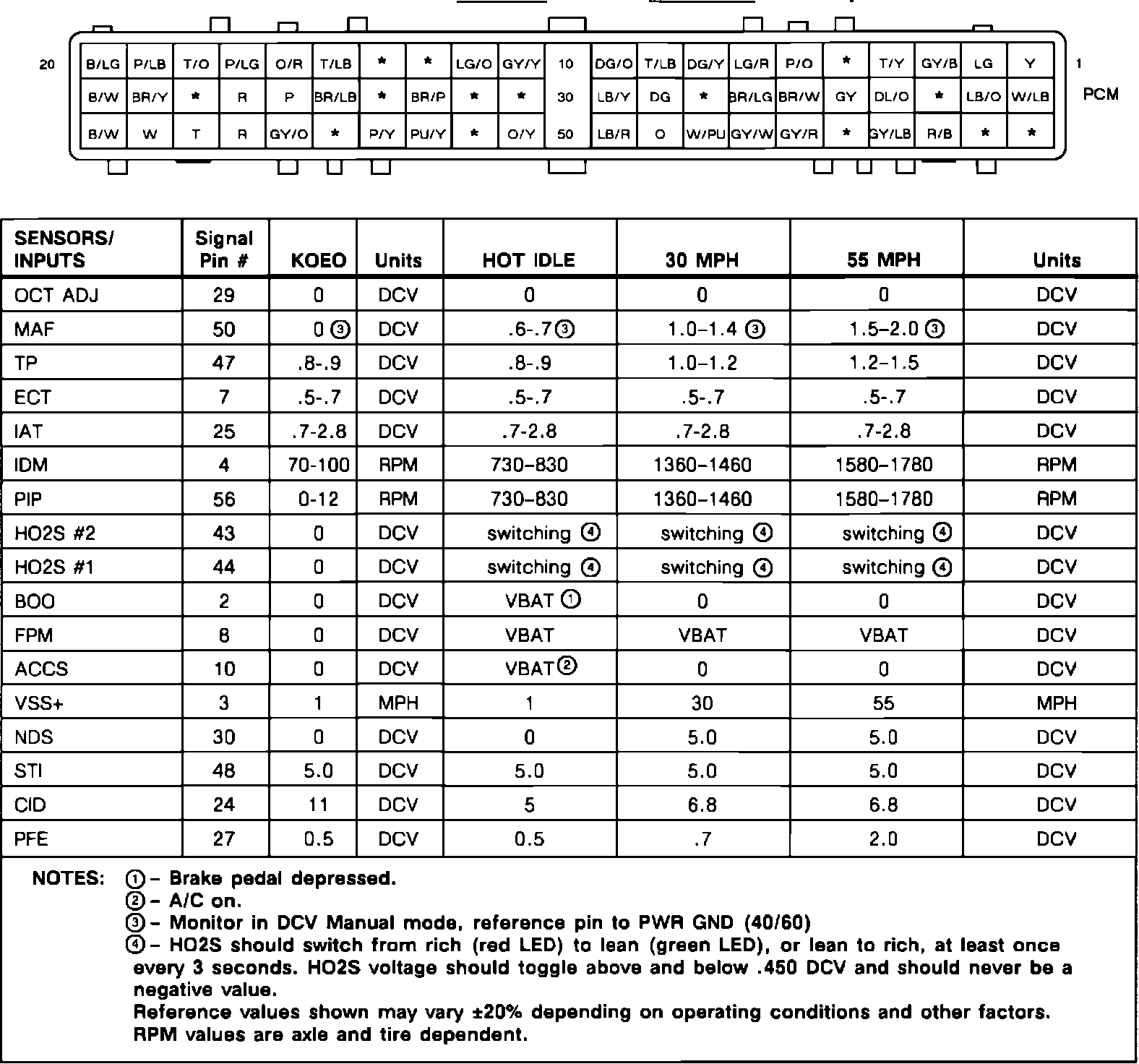

Powertrain Control Module Terminal (Unit Side, With Calif. Emissions):

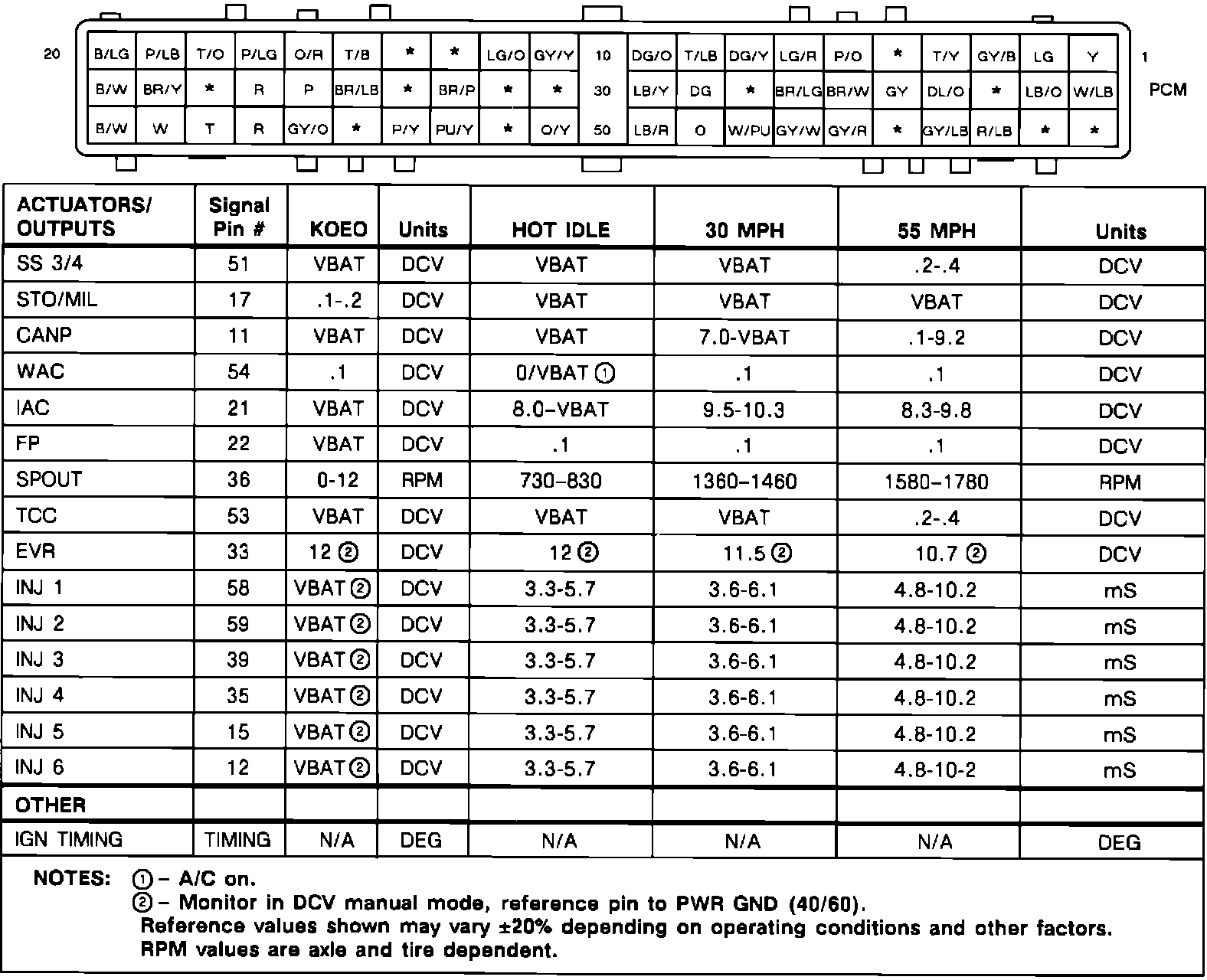

Powertrain Control Module Terminal (Unit Side, With Calif. Emissions):
