Home >> Mazda Truck >> 1993 >> Navajo 2WD V6-4.0L OHV >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Specifications >> Without Calif. Emissions

Without Calif. Emissions

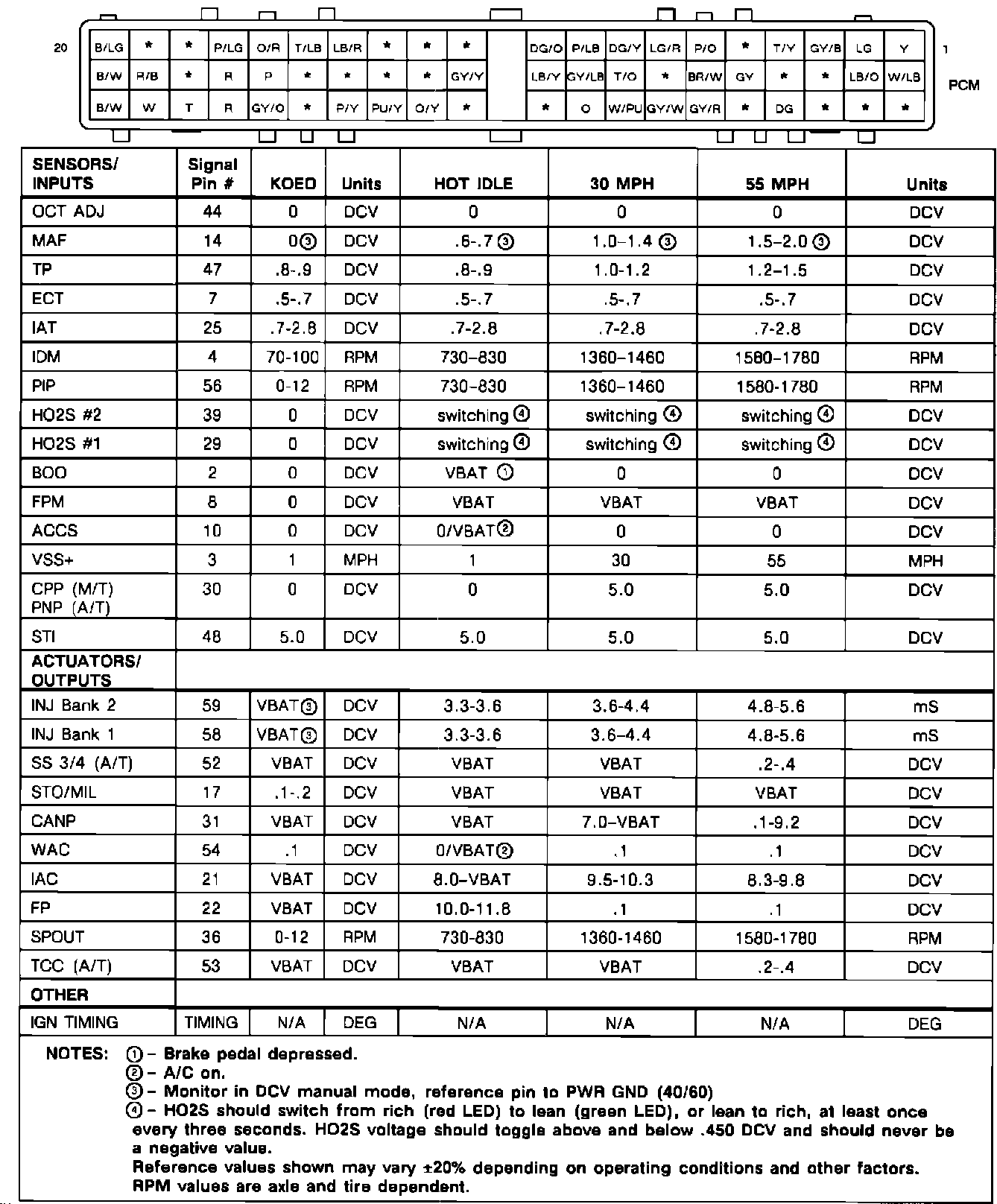

Powertrain Control Module Terminal (Unit Side, Without Calif. Emissions):
