Home >> Lincoln >> 2011 >> Town Car V8-4.6L Flex Fuel >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Timing Cover

Timing Cover

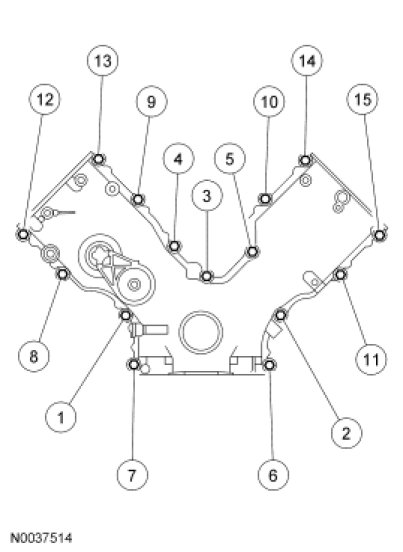

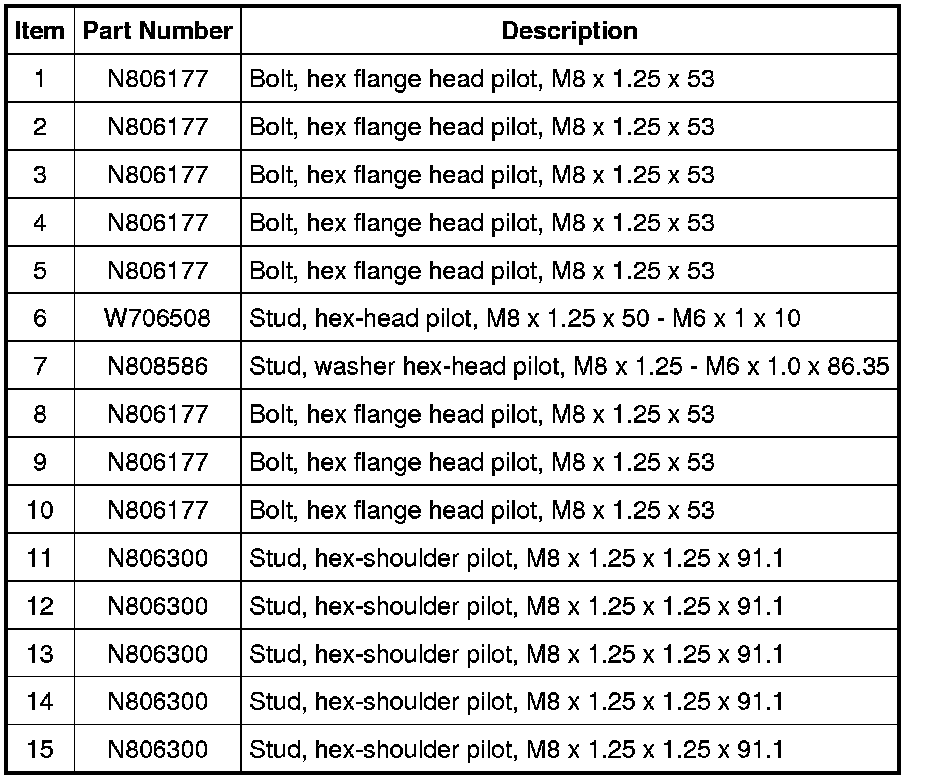

Tighten the front cover fasteners in the sequence shown to 25 Nm (18 lb-ft).
