Home >> Lincoln >> 2007 >> MKZ AWD V6-3.5L VIN T >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Control Module >> Locations >> Active Torque Control Coupling Solenoid

Active Torque Control Coupling Solenoid

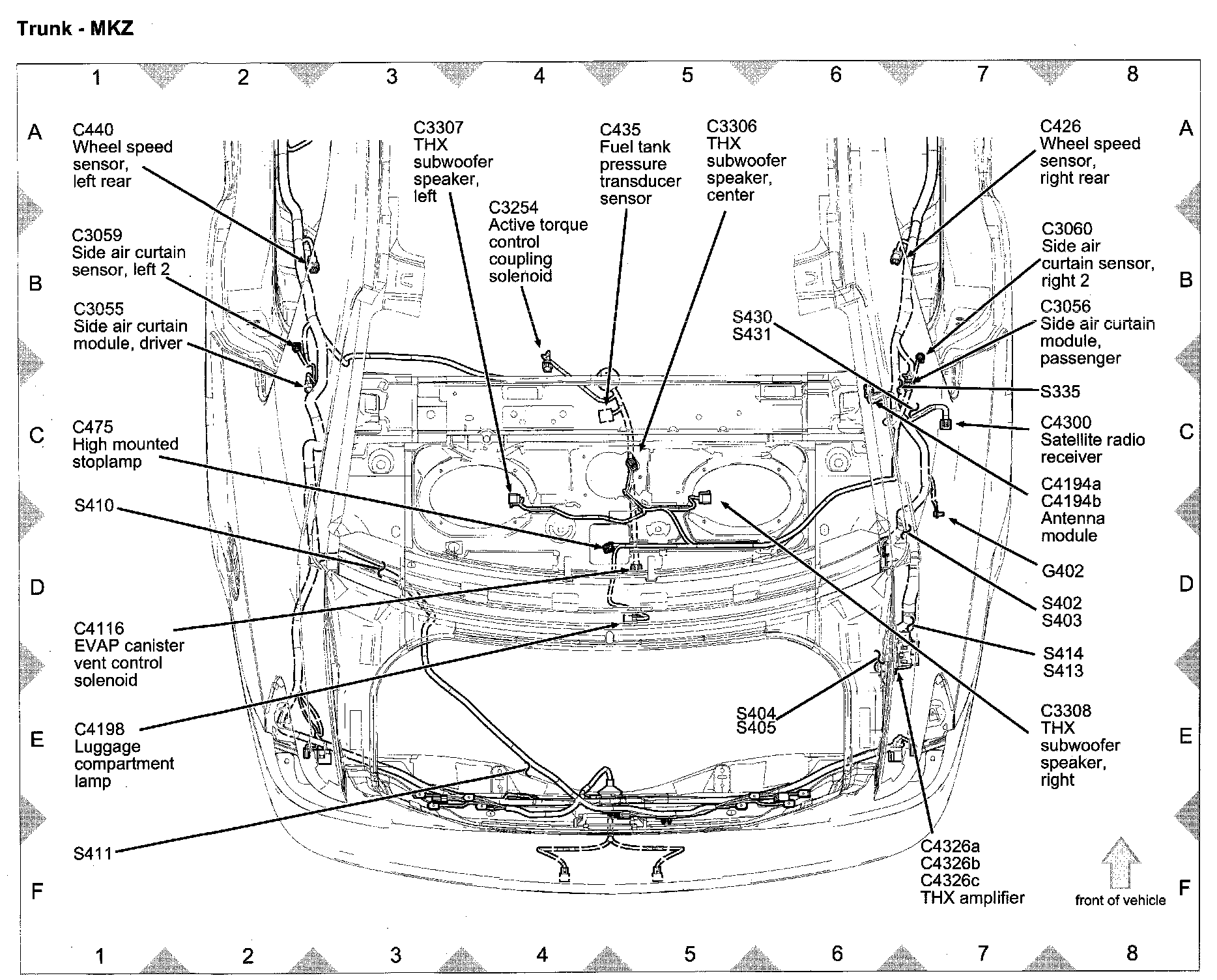

View 151-31 (Trunk - MKZ):
