Home >> Lincoln >> 2006 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Control Module >> Locations >> Heated Seat Module, Right/Left Rear

Heated Seat Module, Right/Left Rear

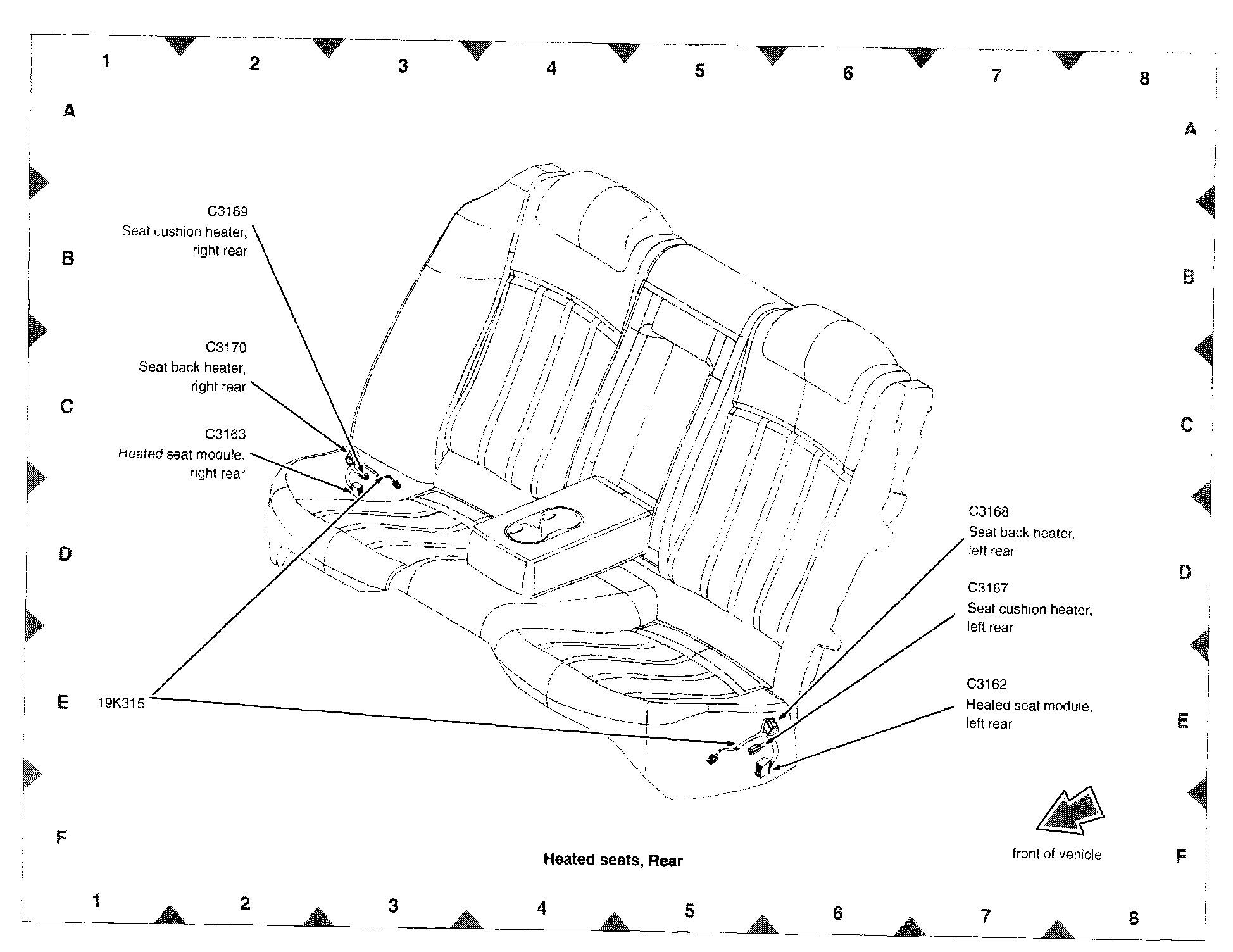

View 151-55 (Heated Seats, Rear):
