Home >> Lincoln >> 2005 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Brake Signal >> Locations

Brake Signal: Locations

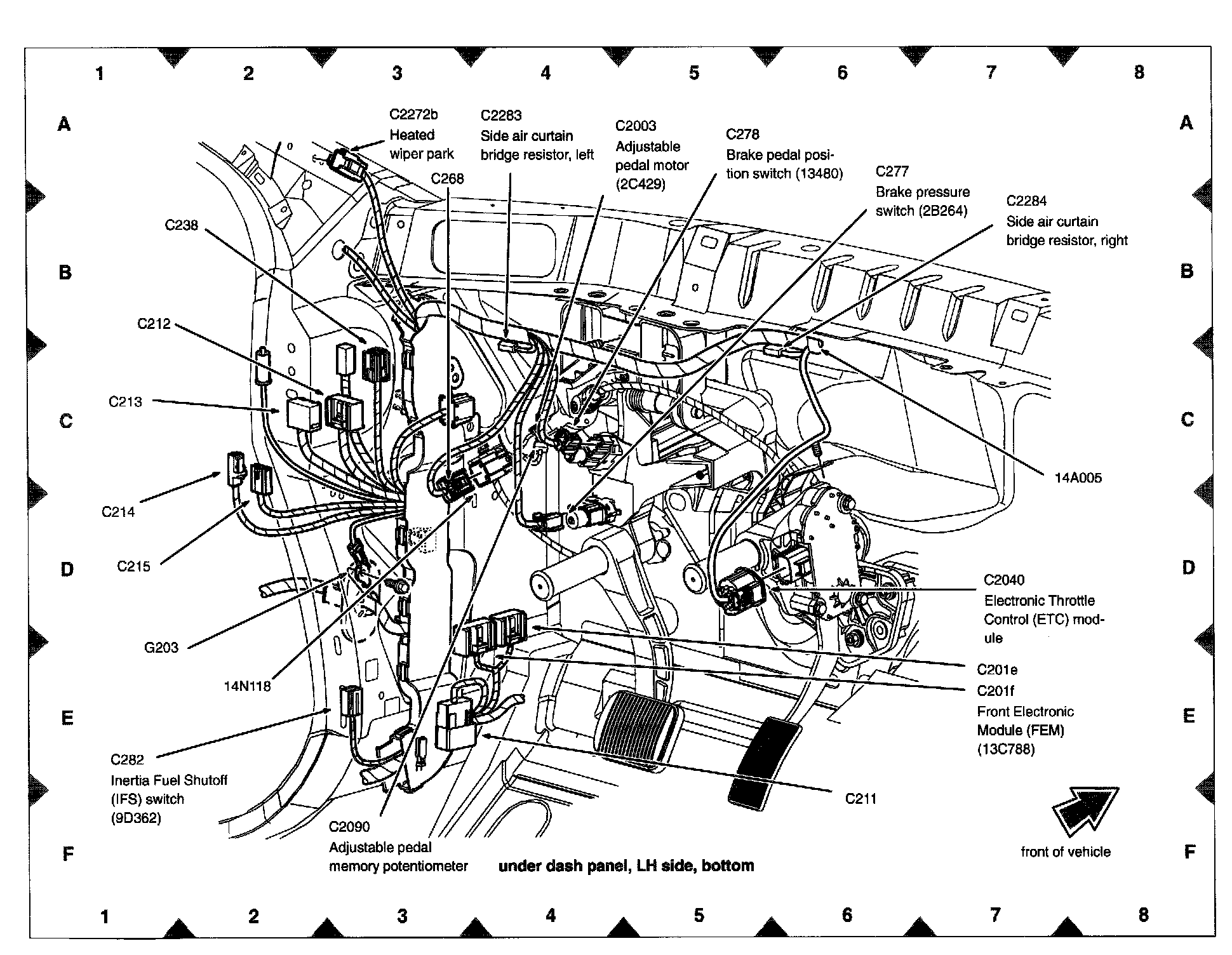

View 151-25 (under Dash Panel, LH Side, Bottom):
