Home >> Lincoln >> 2005 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Locations >> Splice Locations

Splice Locations

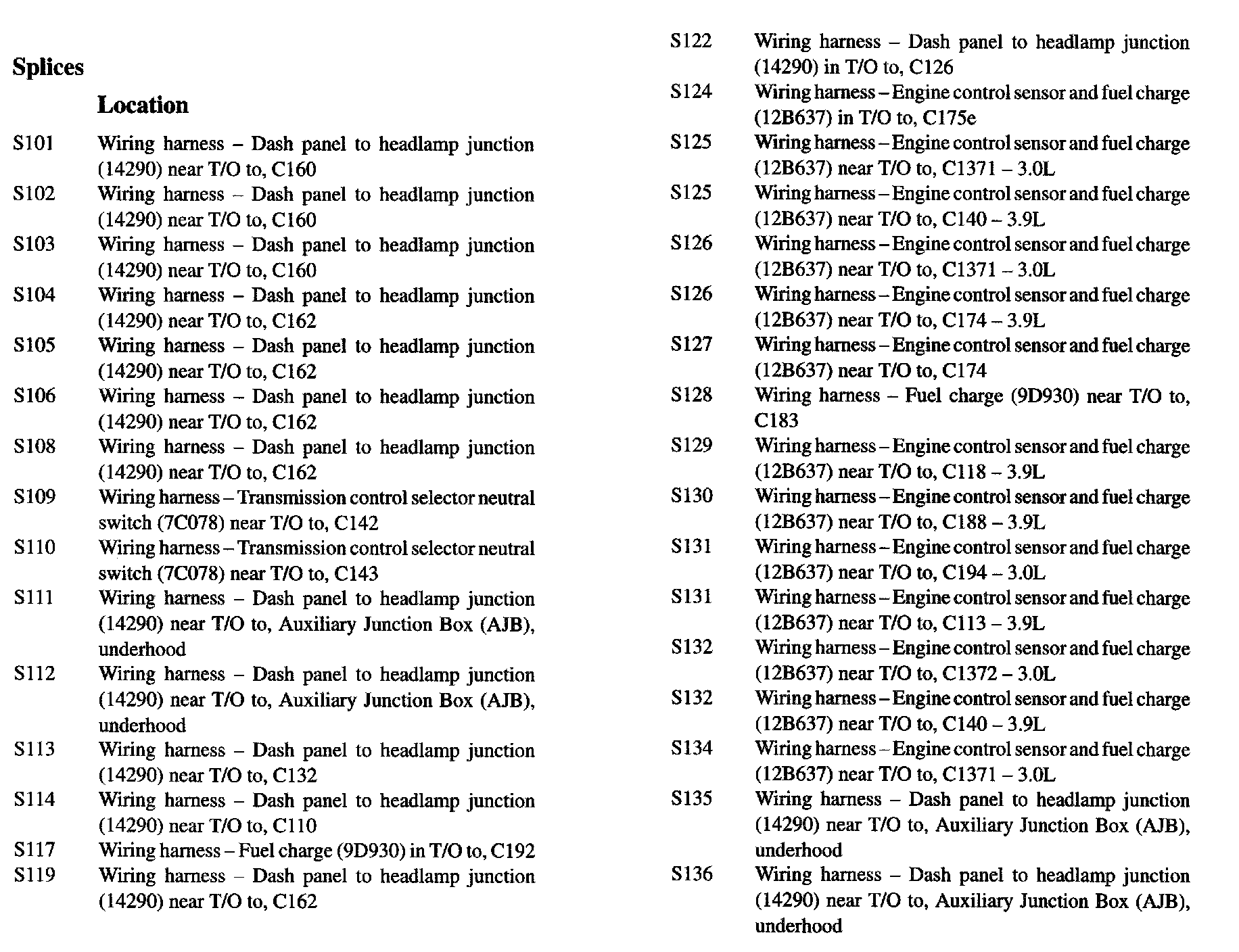

S101-S136:

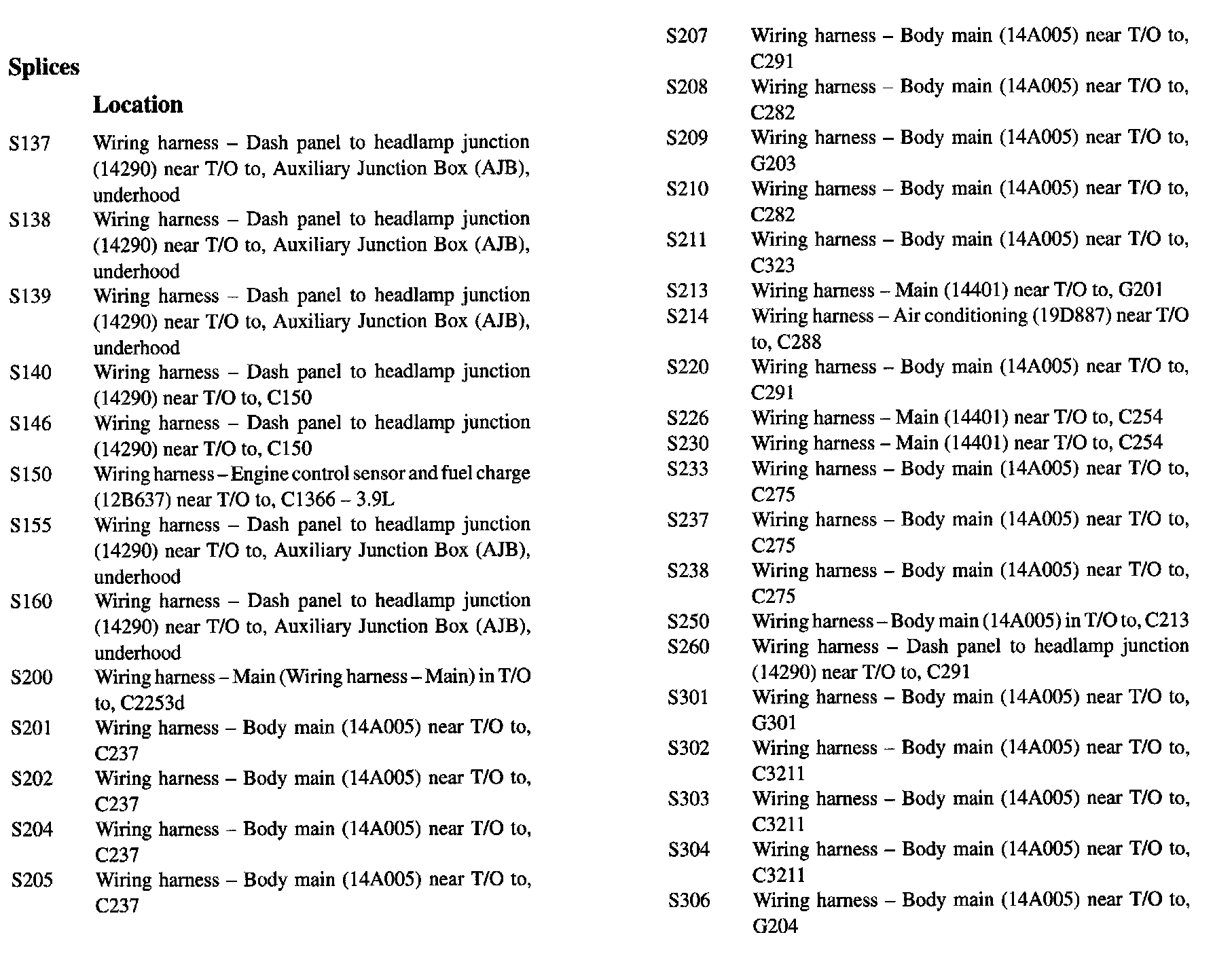

S137-S306:

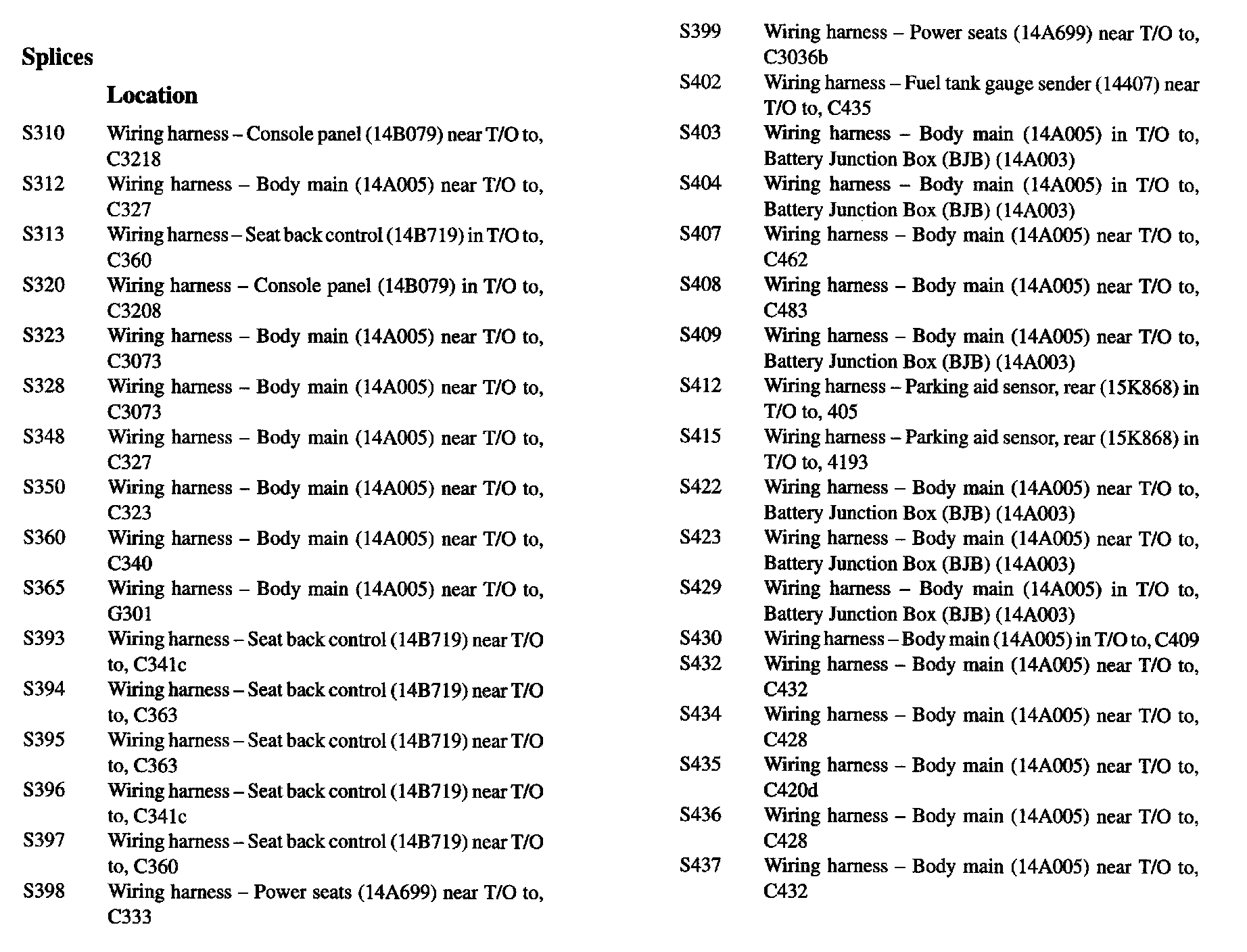

S310-S437:

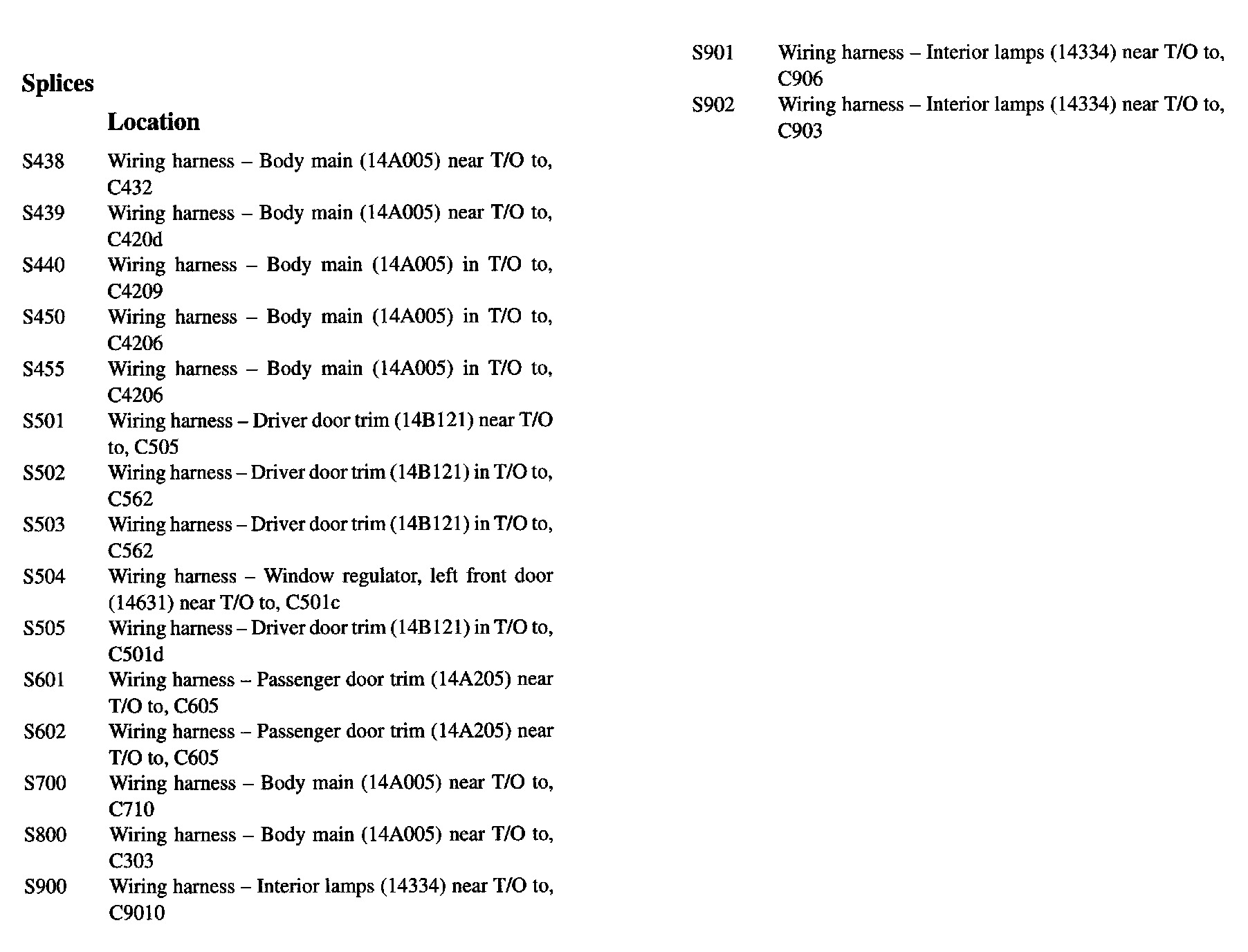

S438-S902:
