Navigation System Module C4209

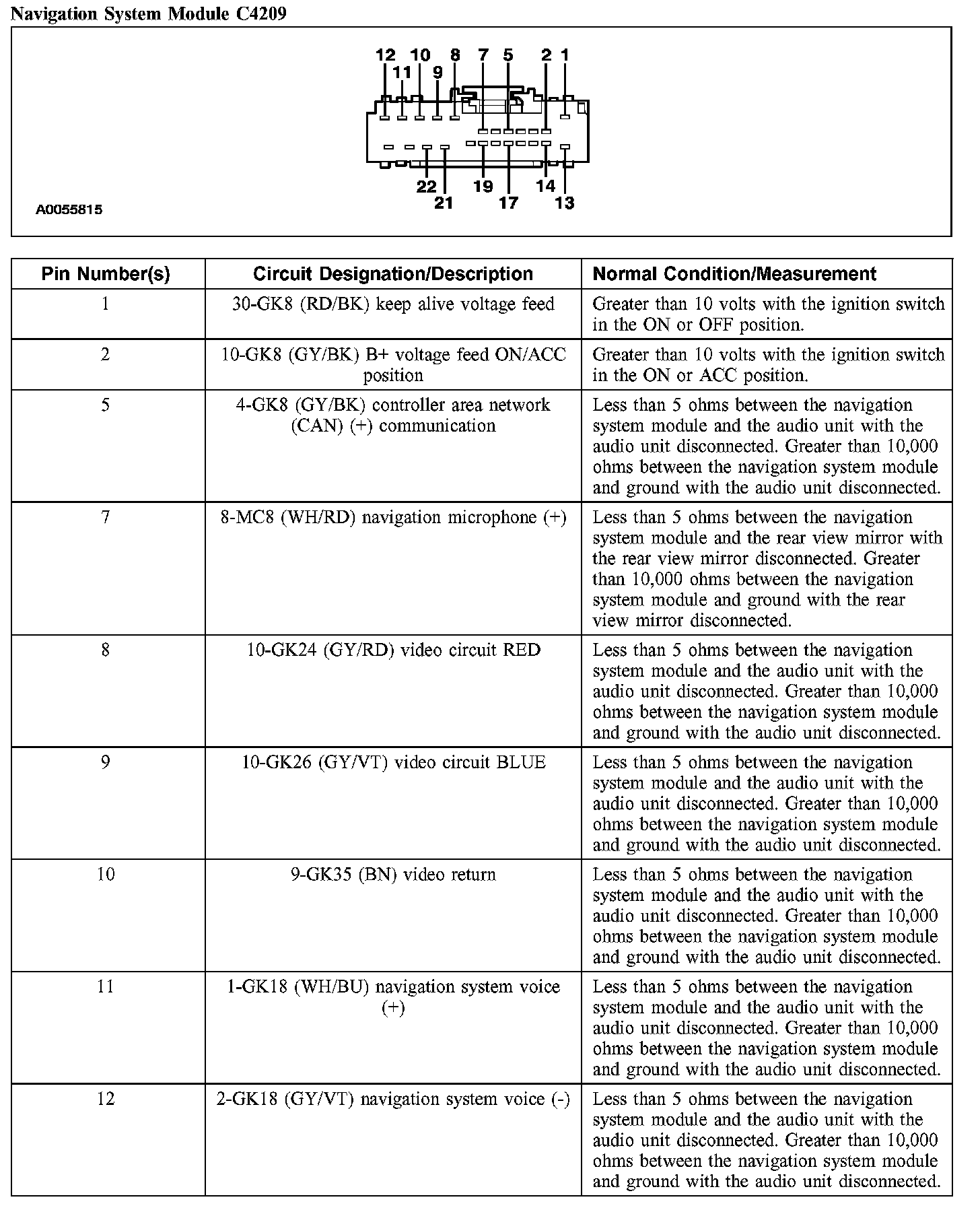

Navigation System Module C4209 (Part 1):

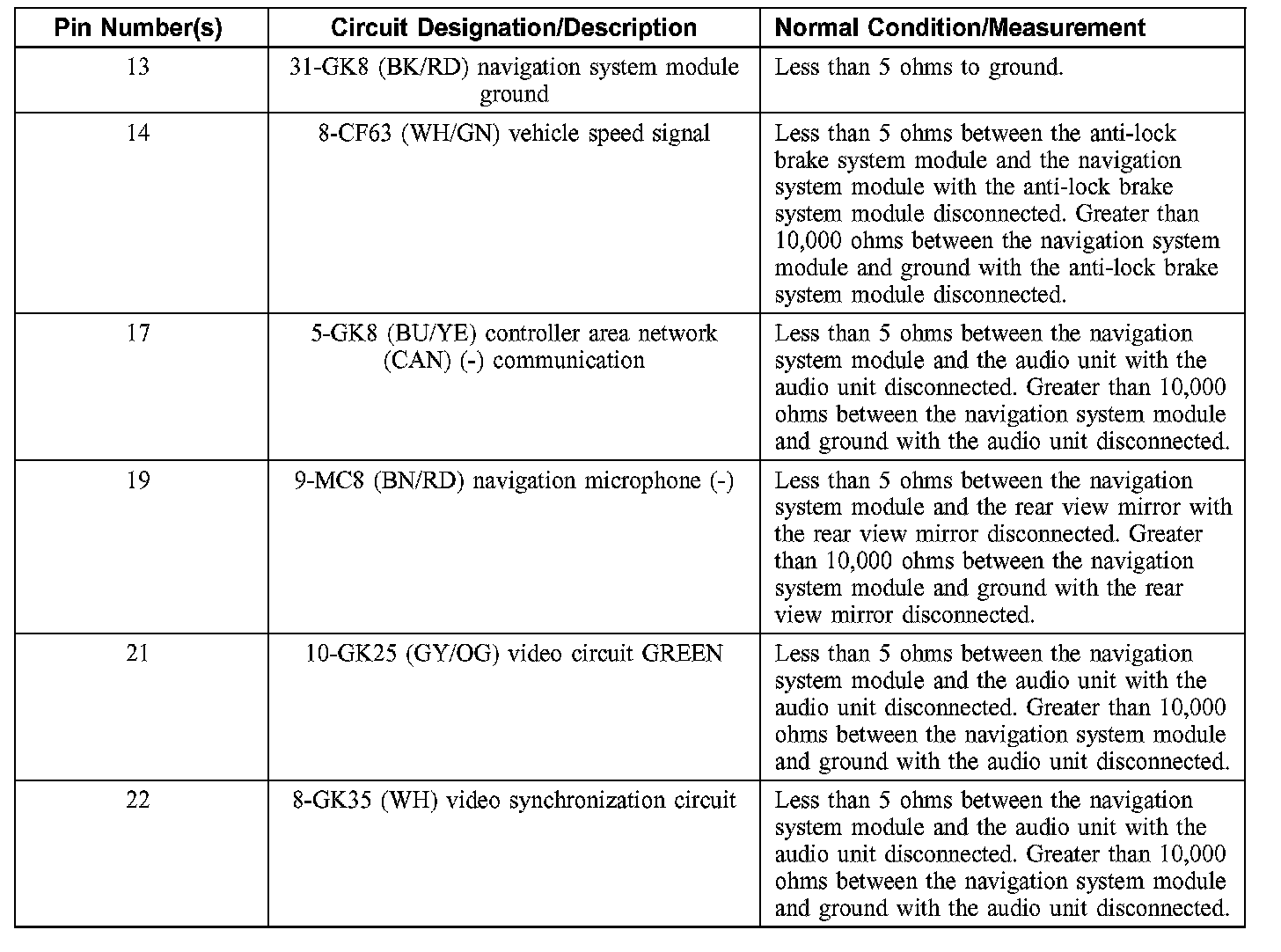

Navigation System Module C4209 (Part 2):
