Home >> Lincoln >> 2003 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Heating and Air Conditioning >> Locations

Heating and Air Conditioning: Locations

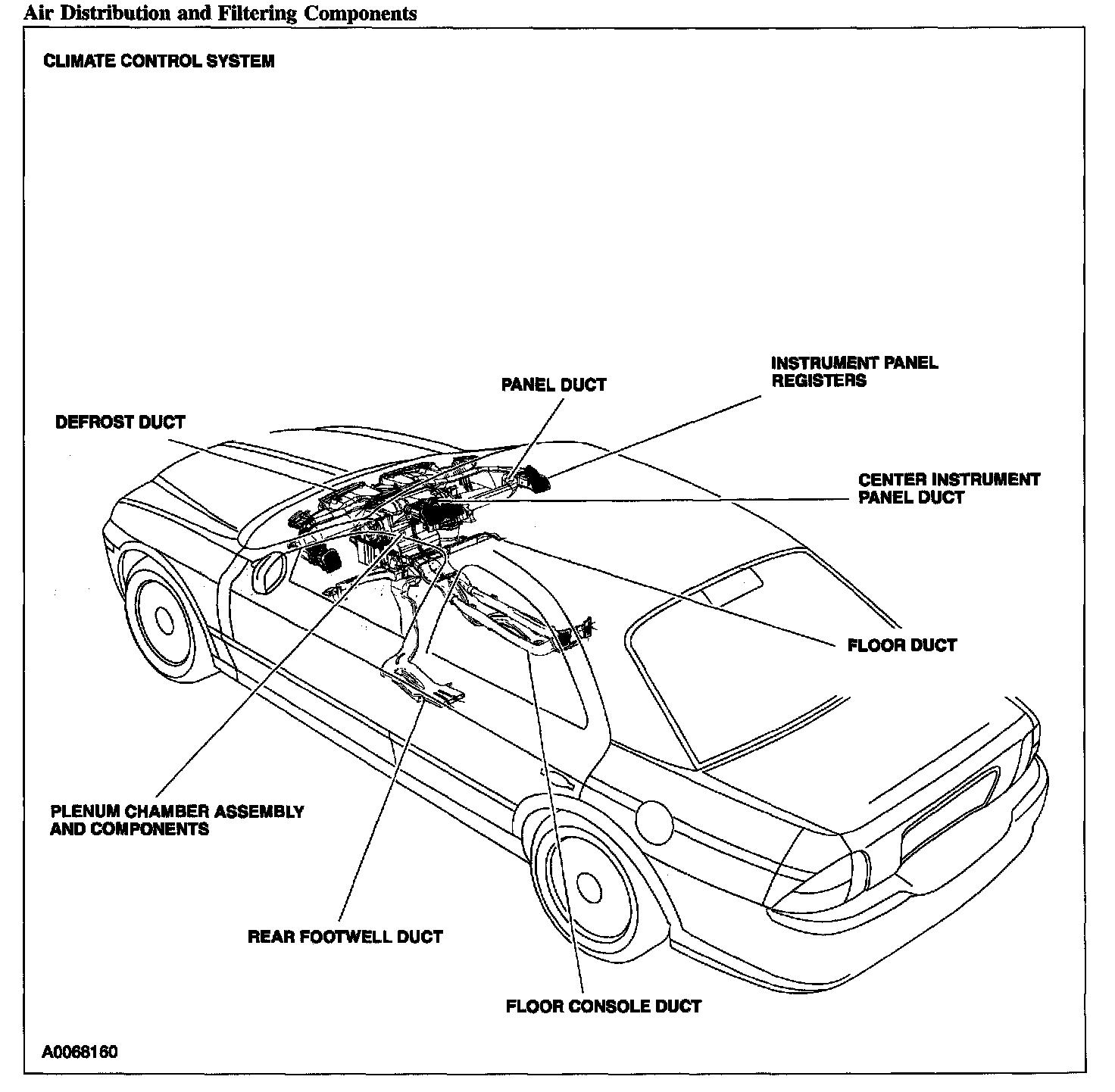

Air Distribution And Filtering Components:

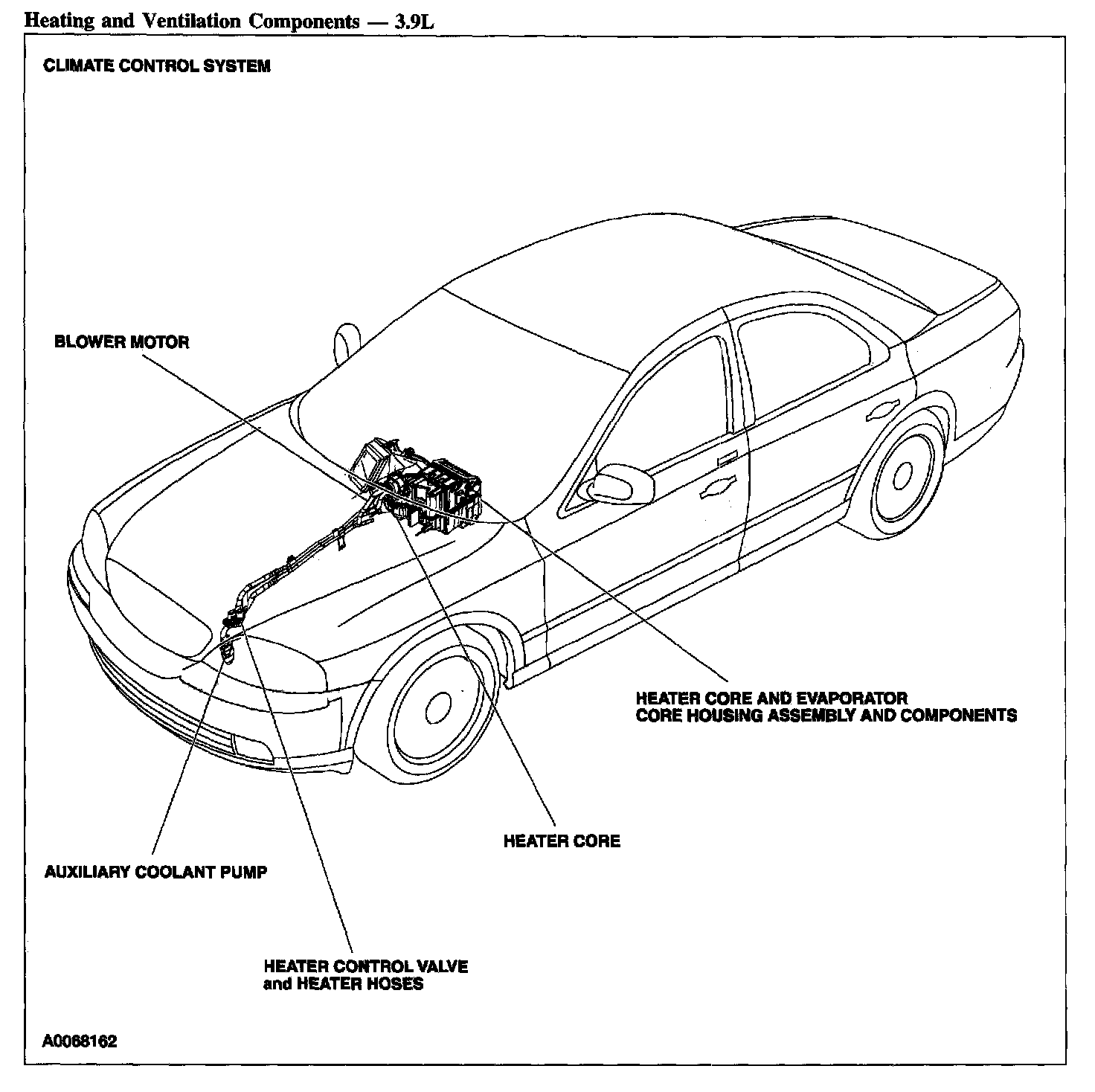

Heating And Ventilation Components:

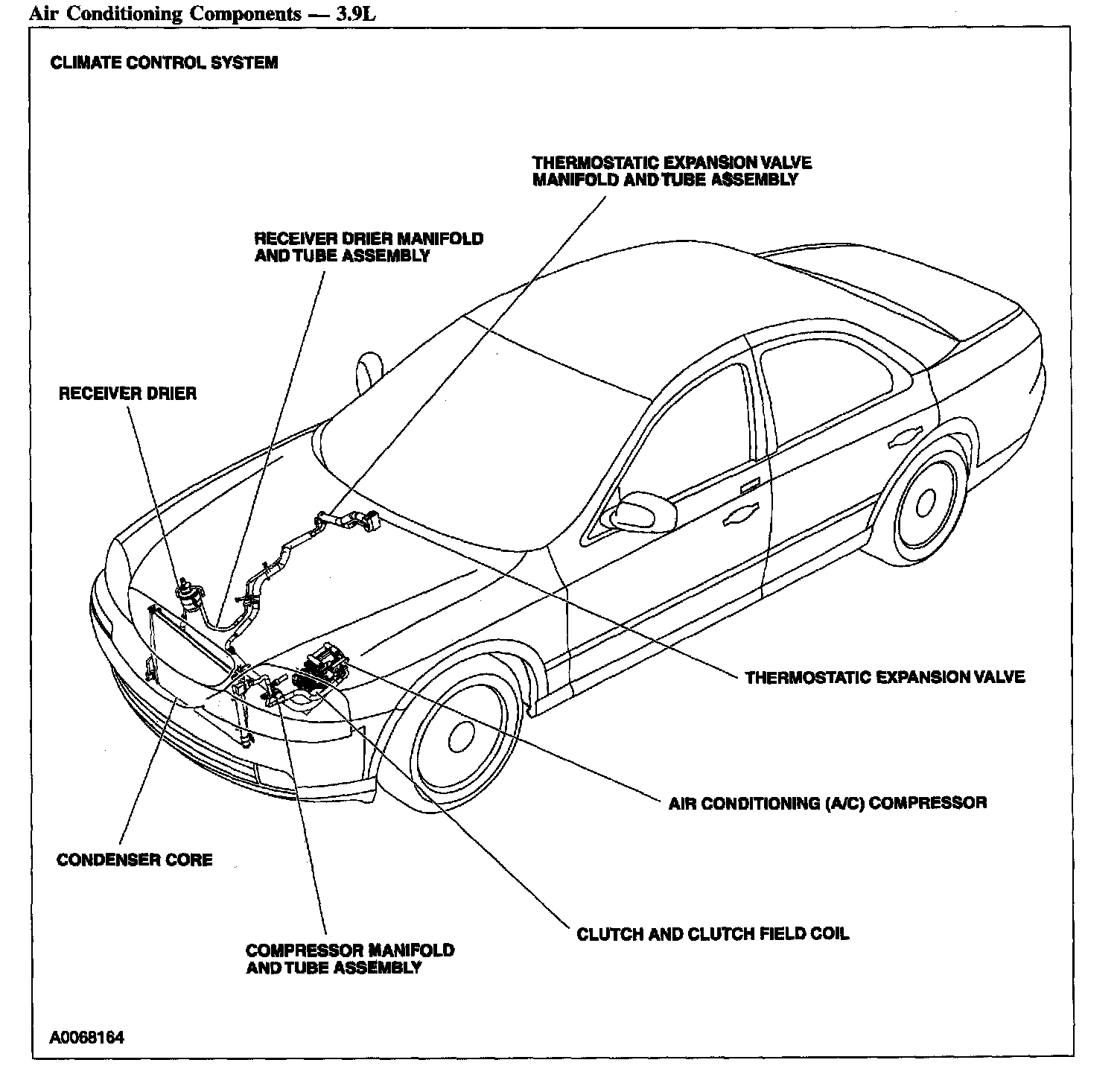

Air Conditioning Components:

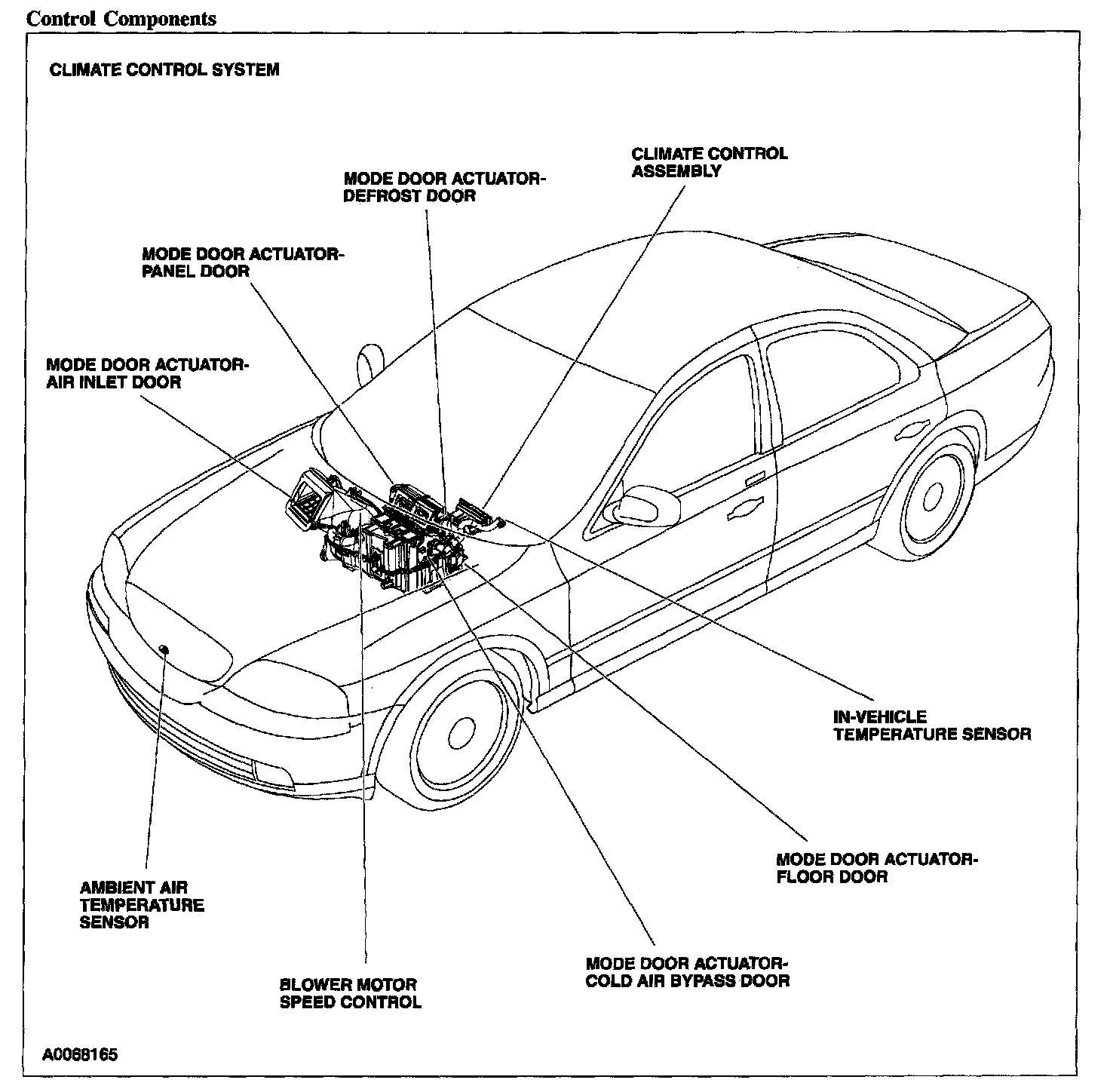

Control Components:
