Navigation System Module C4209

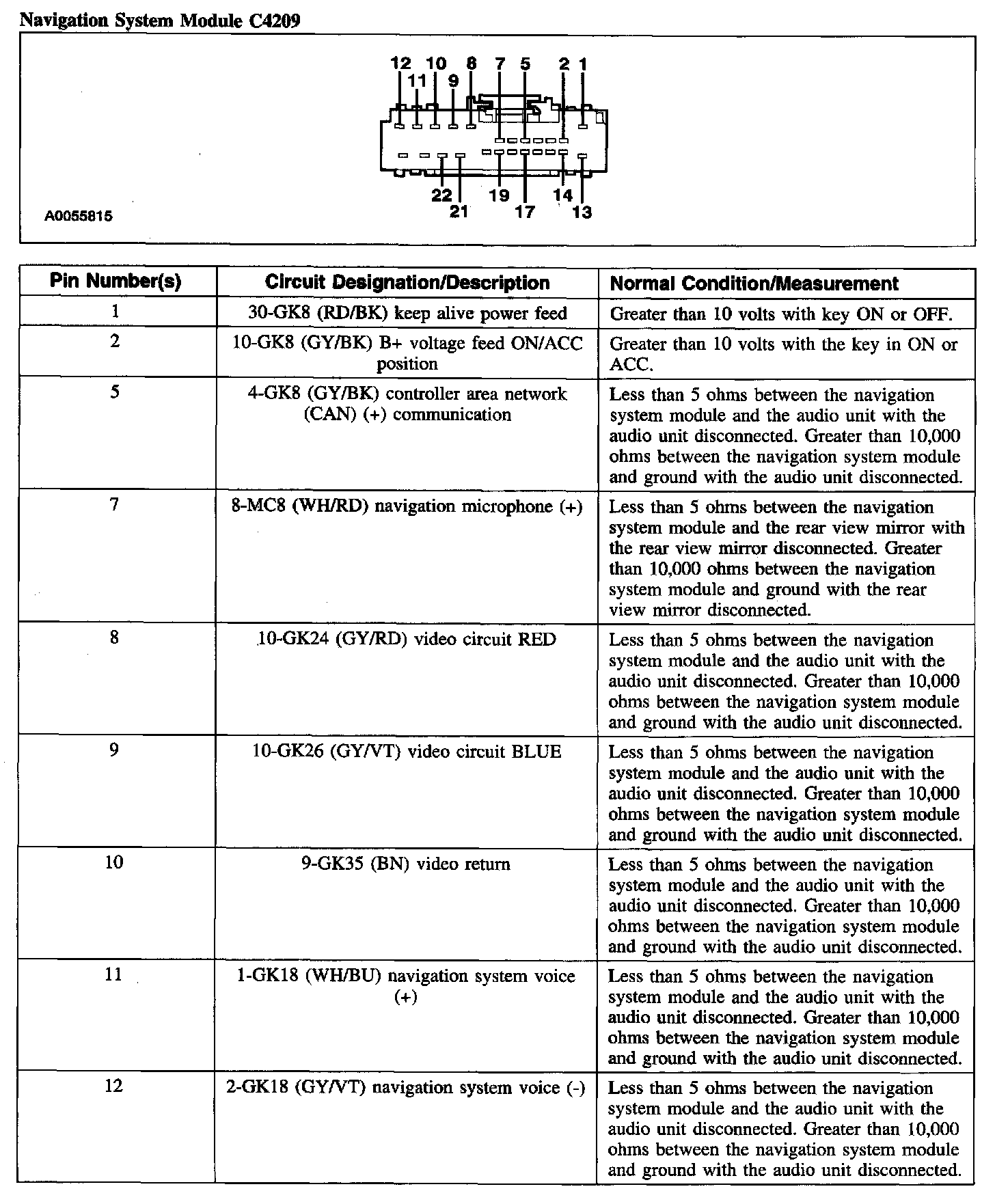

Navigation System Module C4209, Part 1:

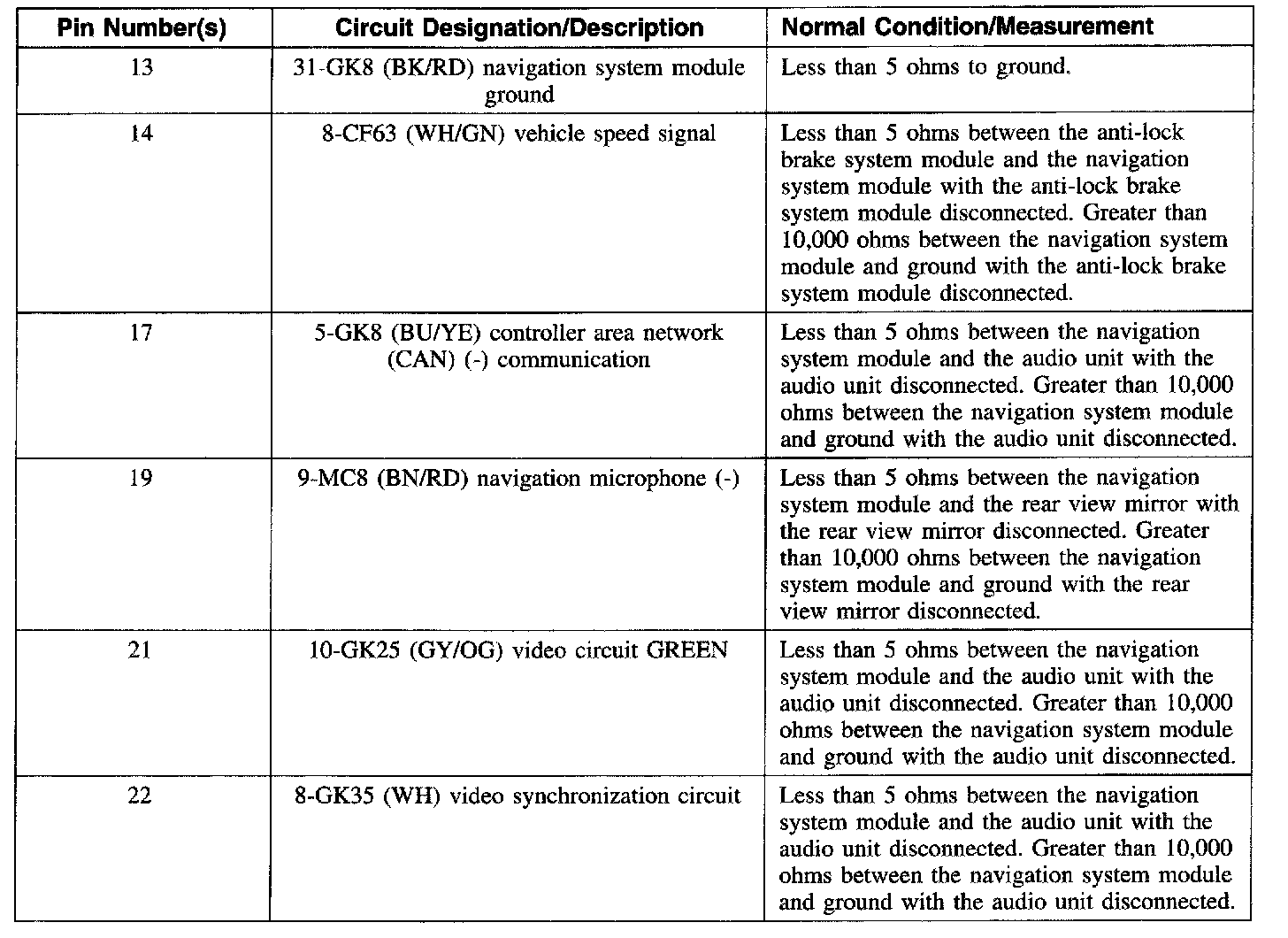

Navigation System Module C4209, Part 2:
