Home >> Lincoln >> 2002 >> Town Car V8-4.6L VIN W >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinpoint Tests >> Test I: Telematics Control Module Not Responding To Diagnostic Tool

Test I: Telematics Control Module Not Responding To Diagnostic Tool

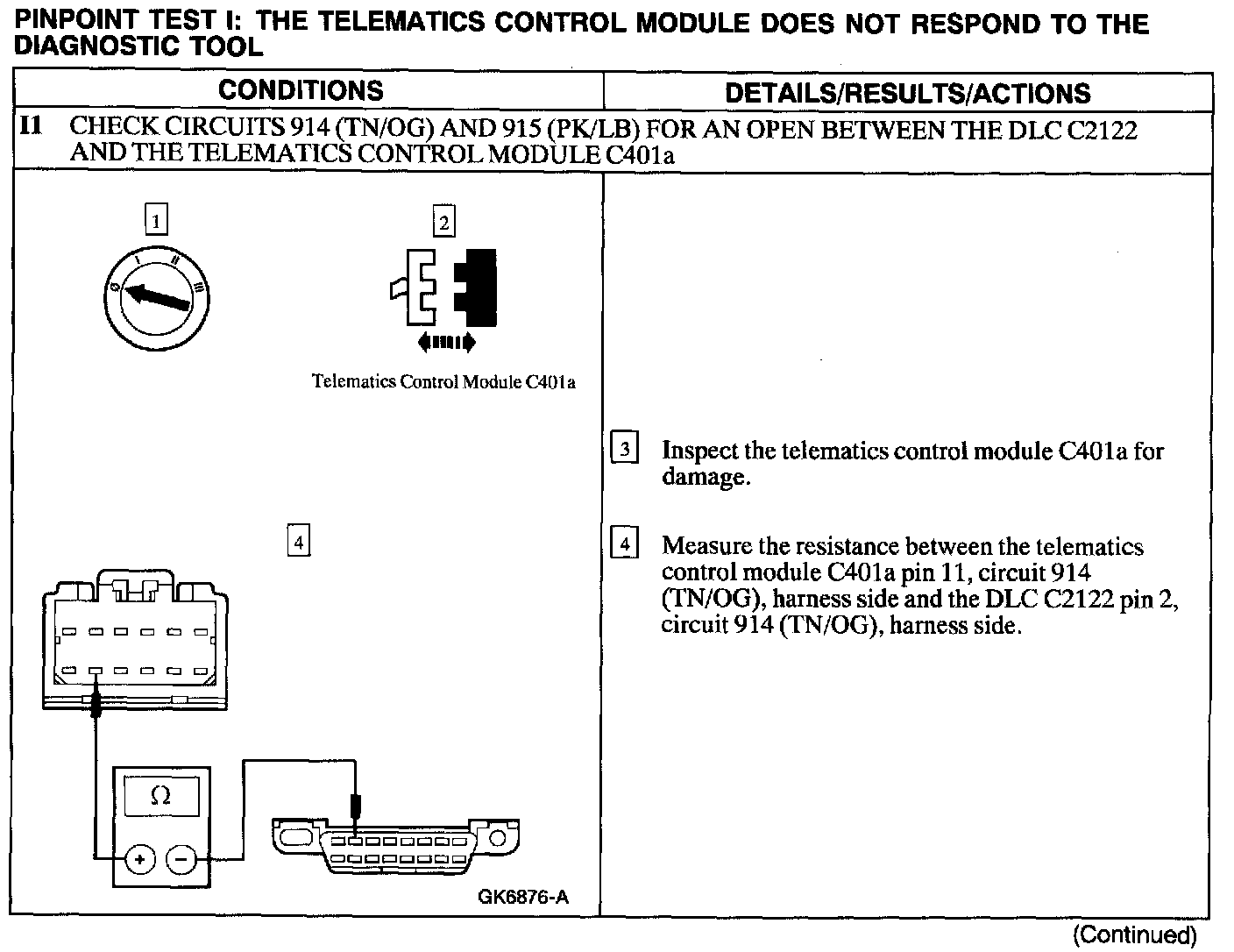

I1:

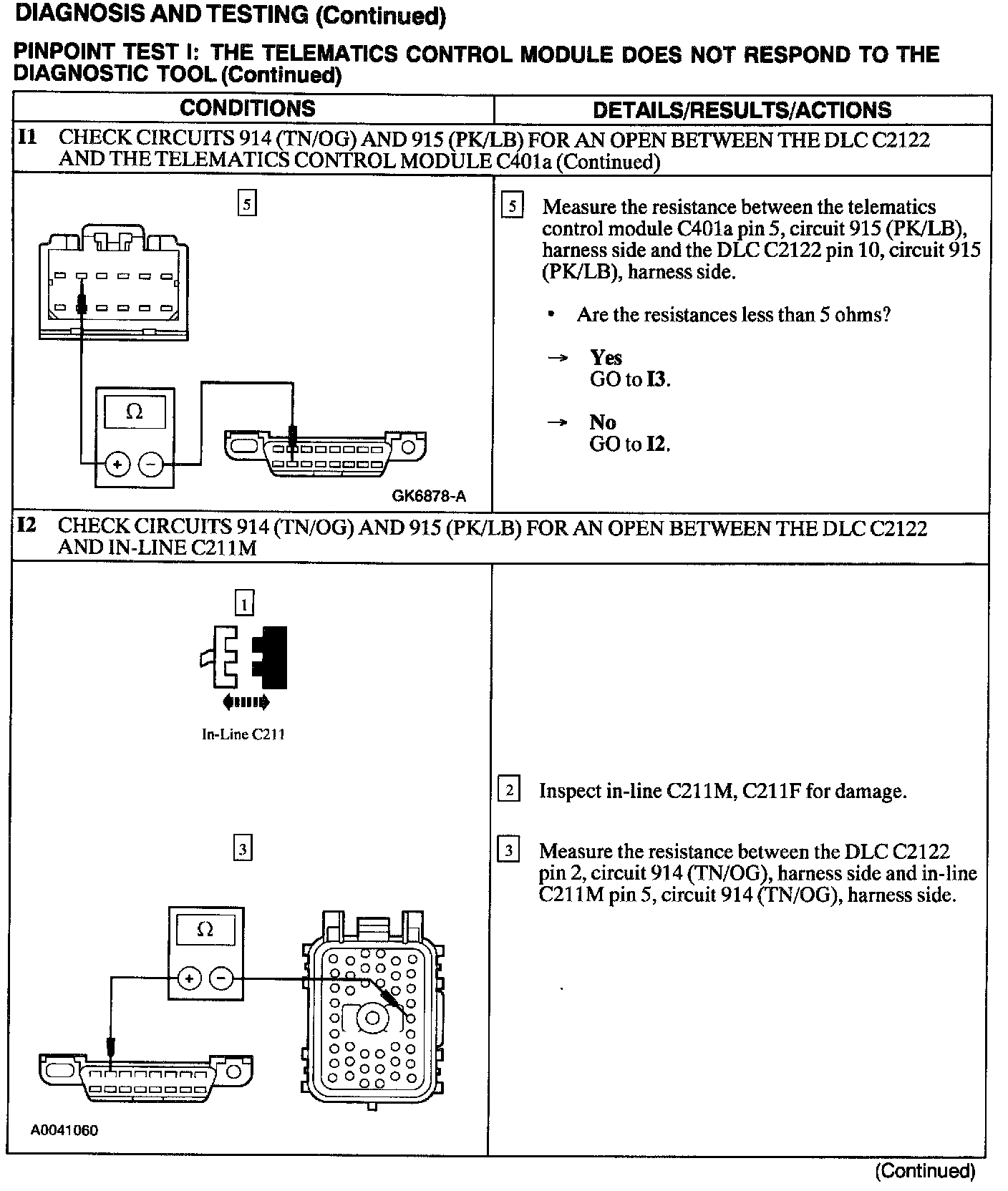

I1 - I2:

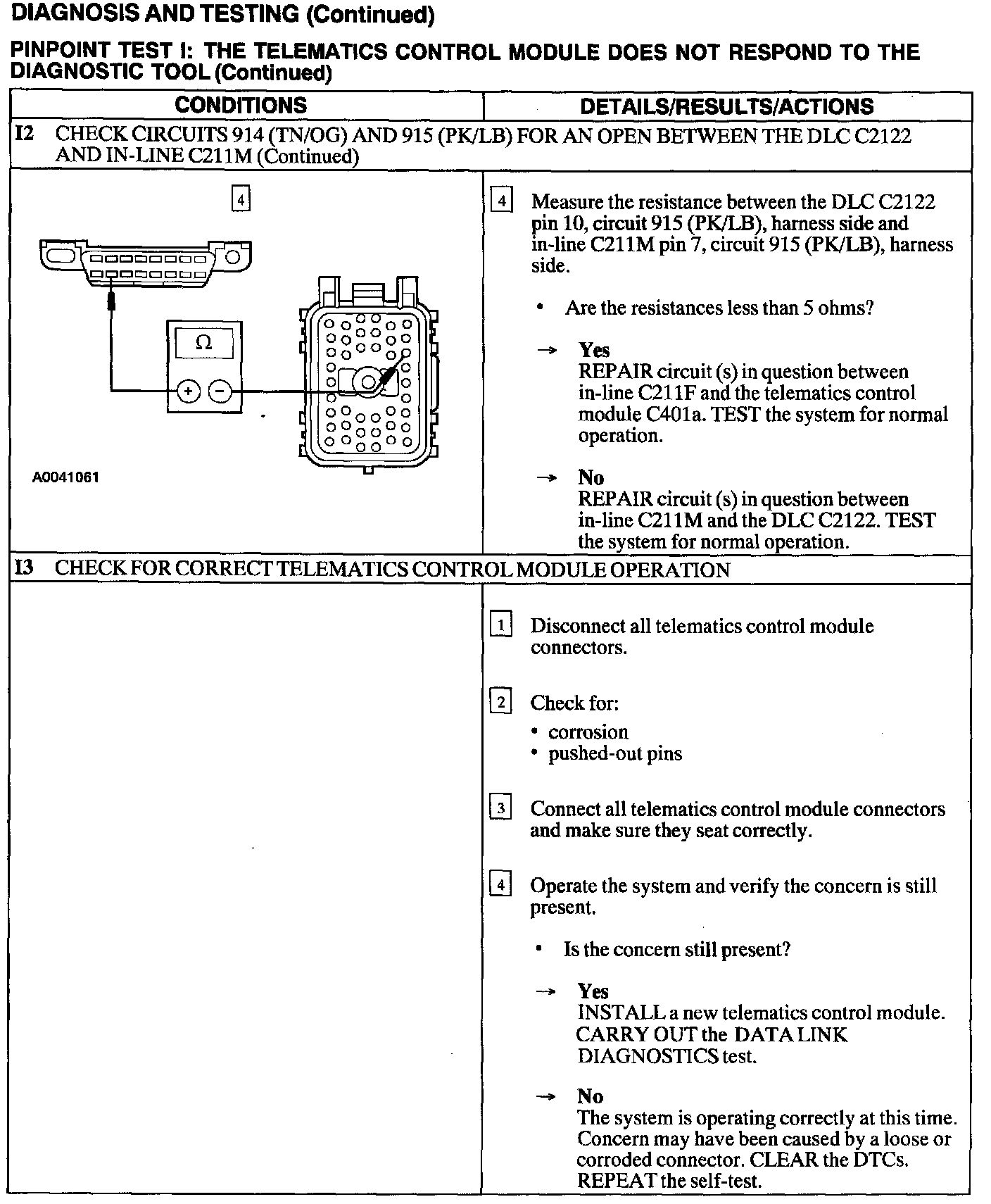

I2 - I3:
