Home >> Lincoln >> 2002 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Power and Ground Distribution >> Power Distribution Relay >> Application and ID

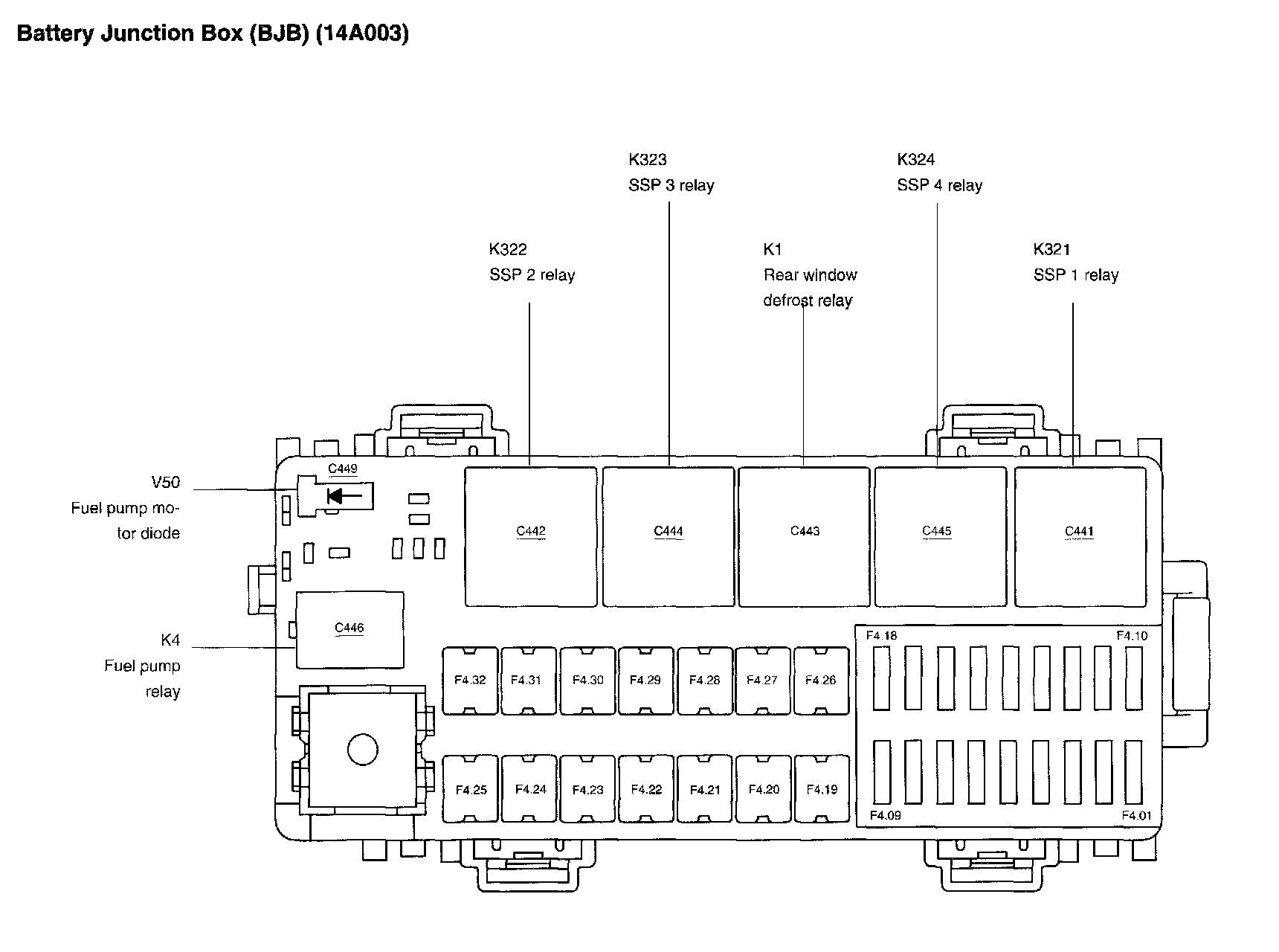

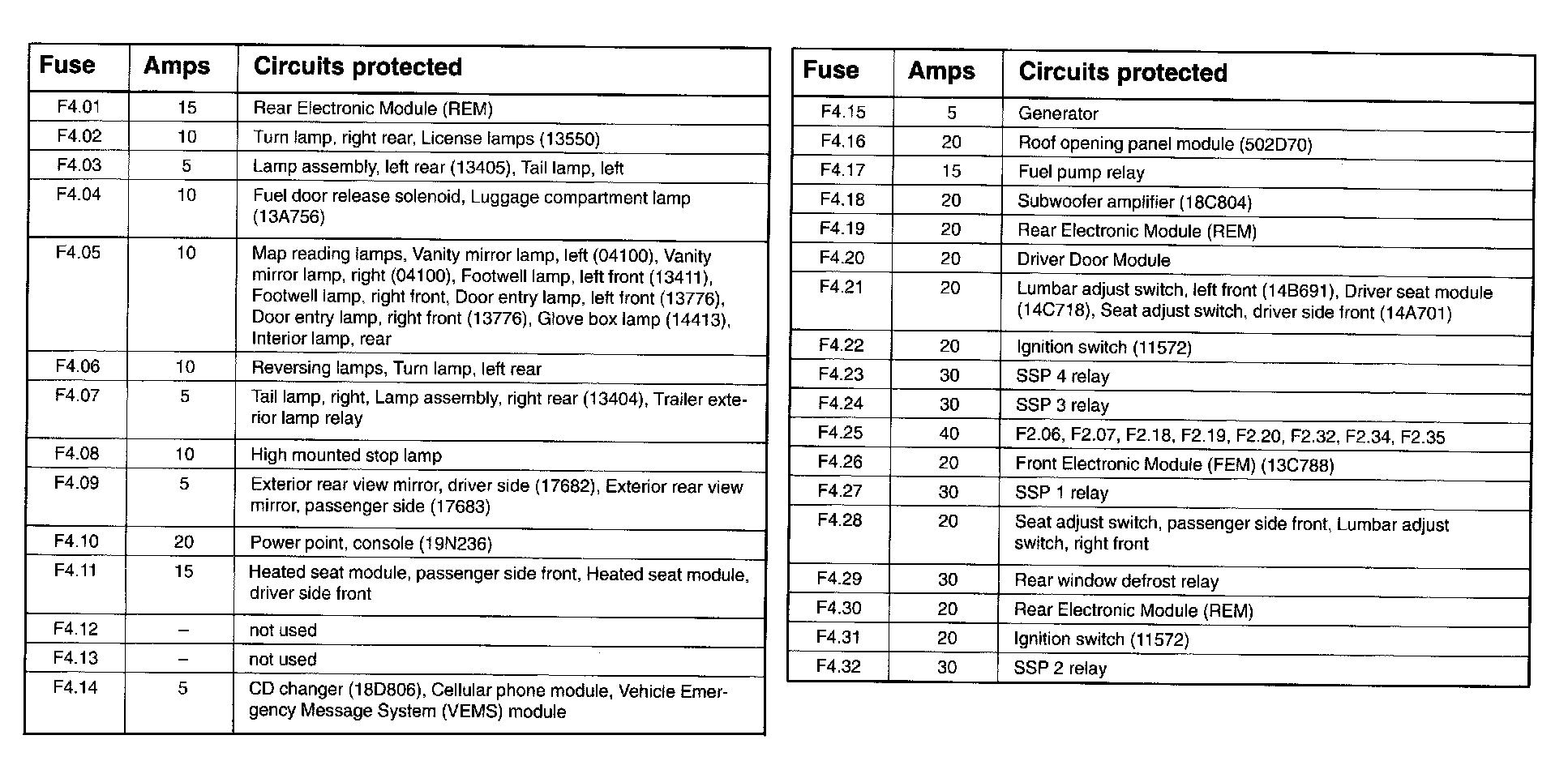

Power Distribution Relay: Application and ID

Part 1:



Part 2:
