Home >> Lincoln >> 2002 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Global Positioning System Module

Global Positioning System Module

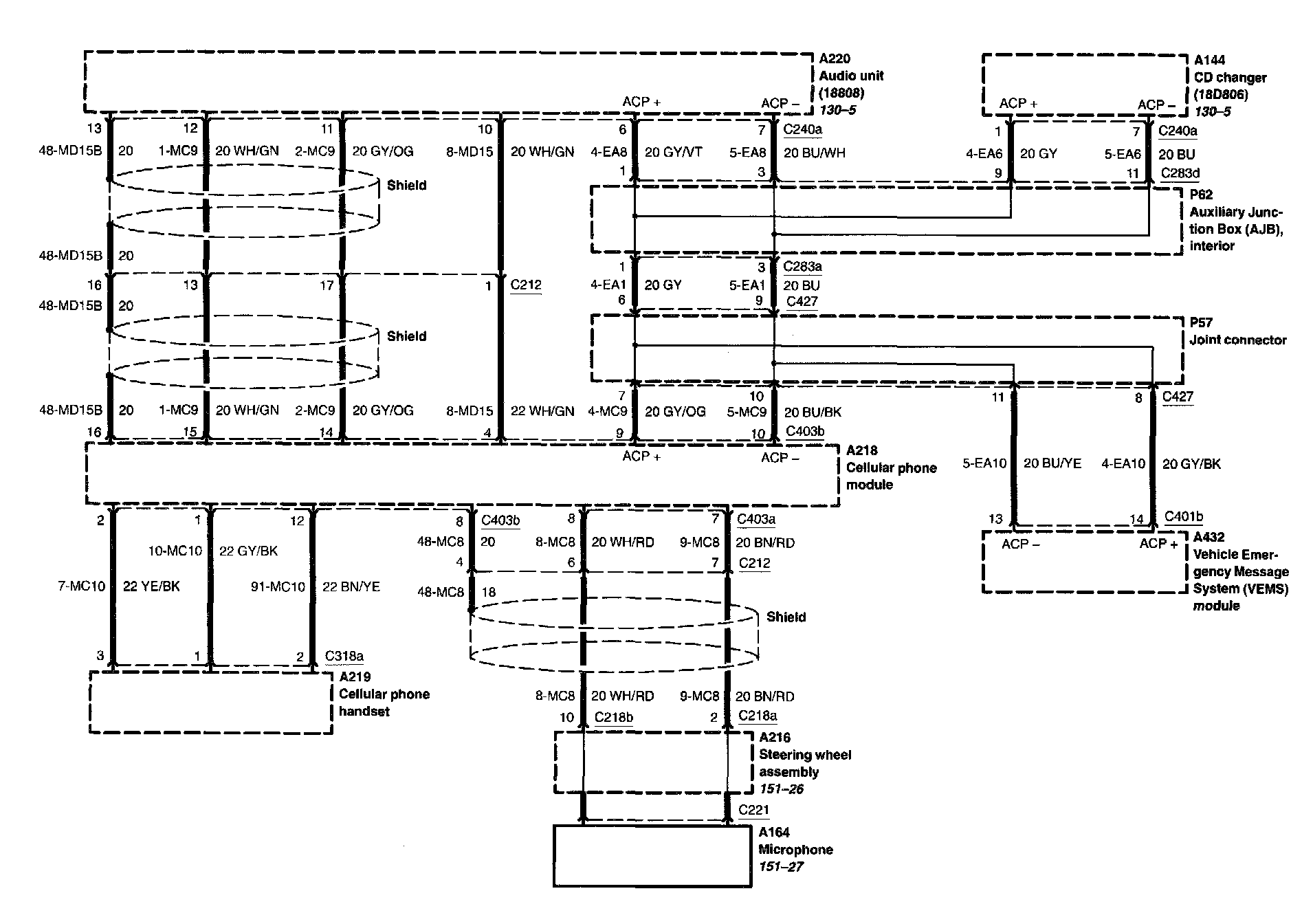

Diagram 136-1:

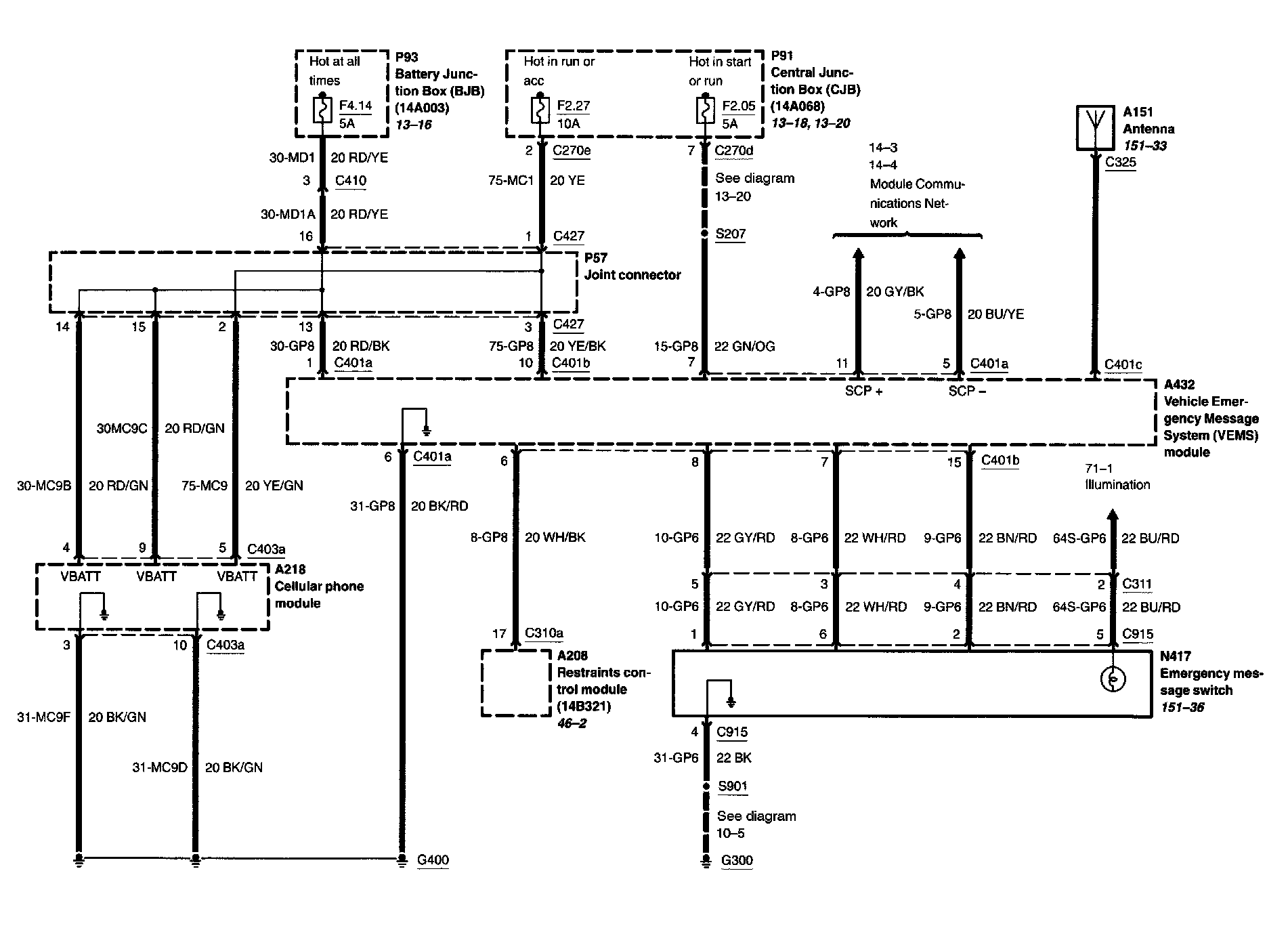

Diagram 136-2:

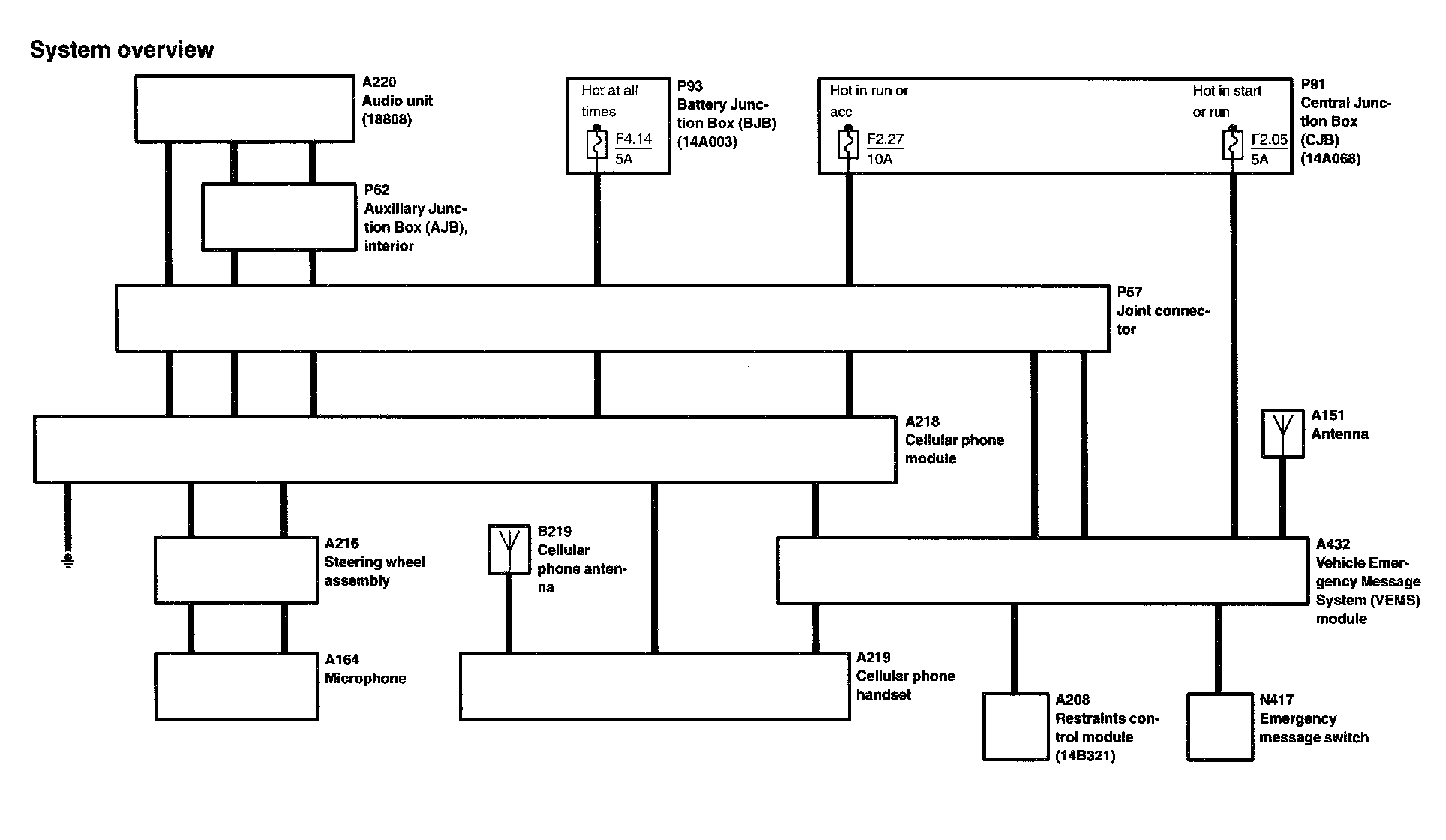

Diagram 136-3:

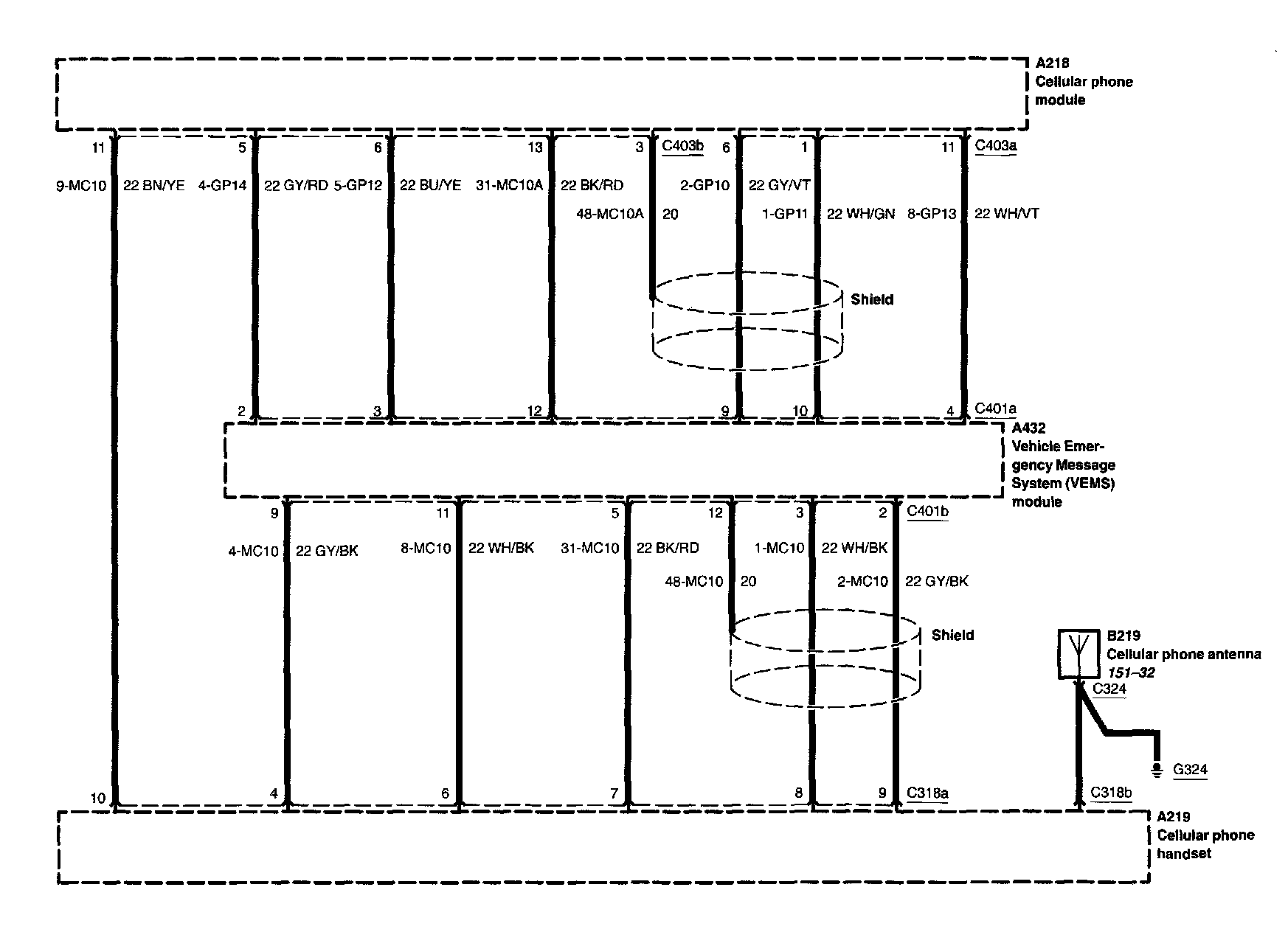

Diagram 136-4:
