Home >> Lincoln >> 2002 >> LS V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine

Engine

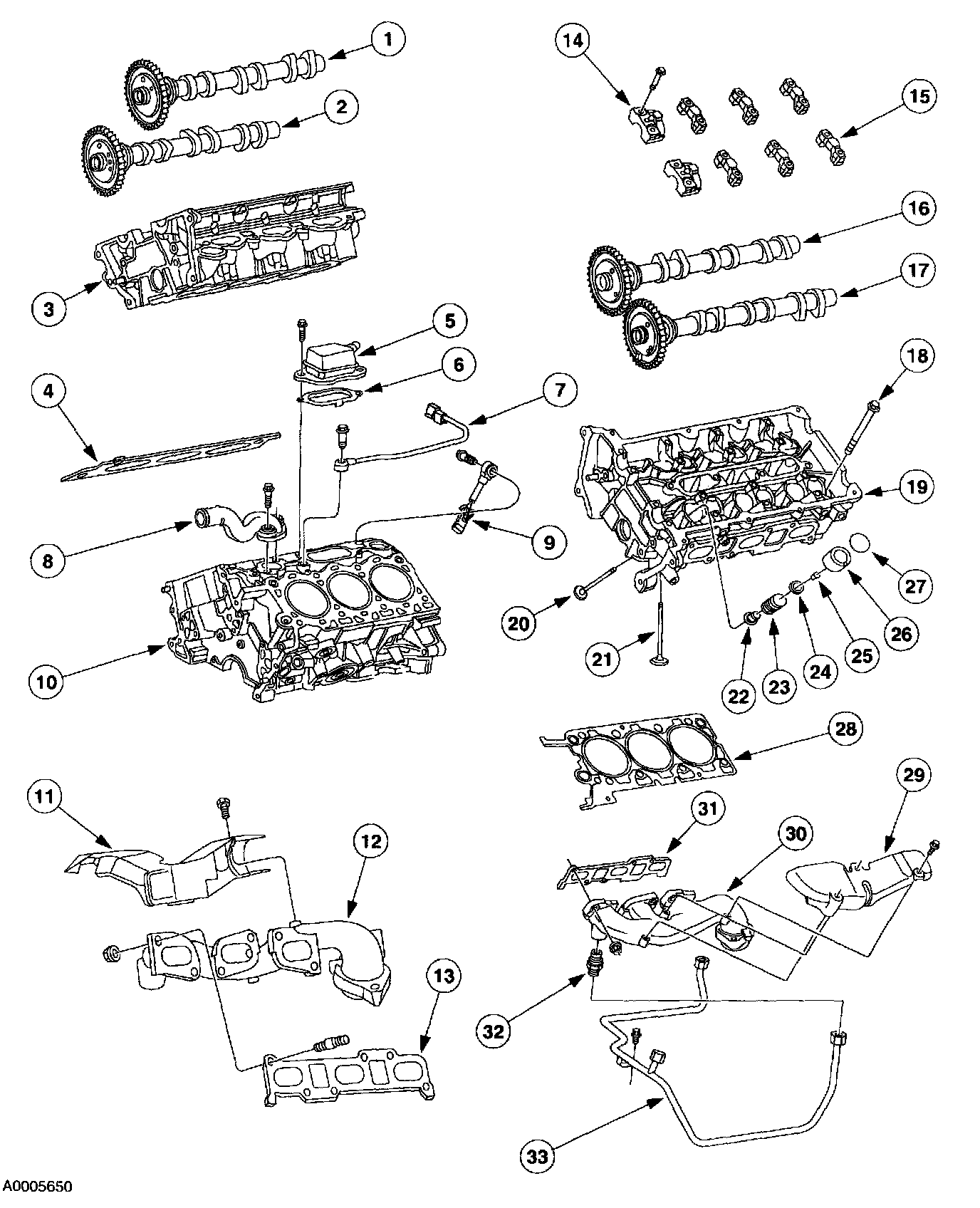

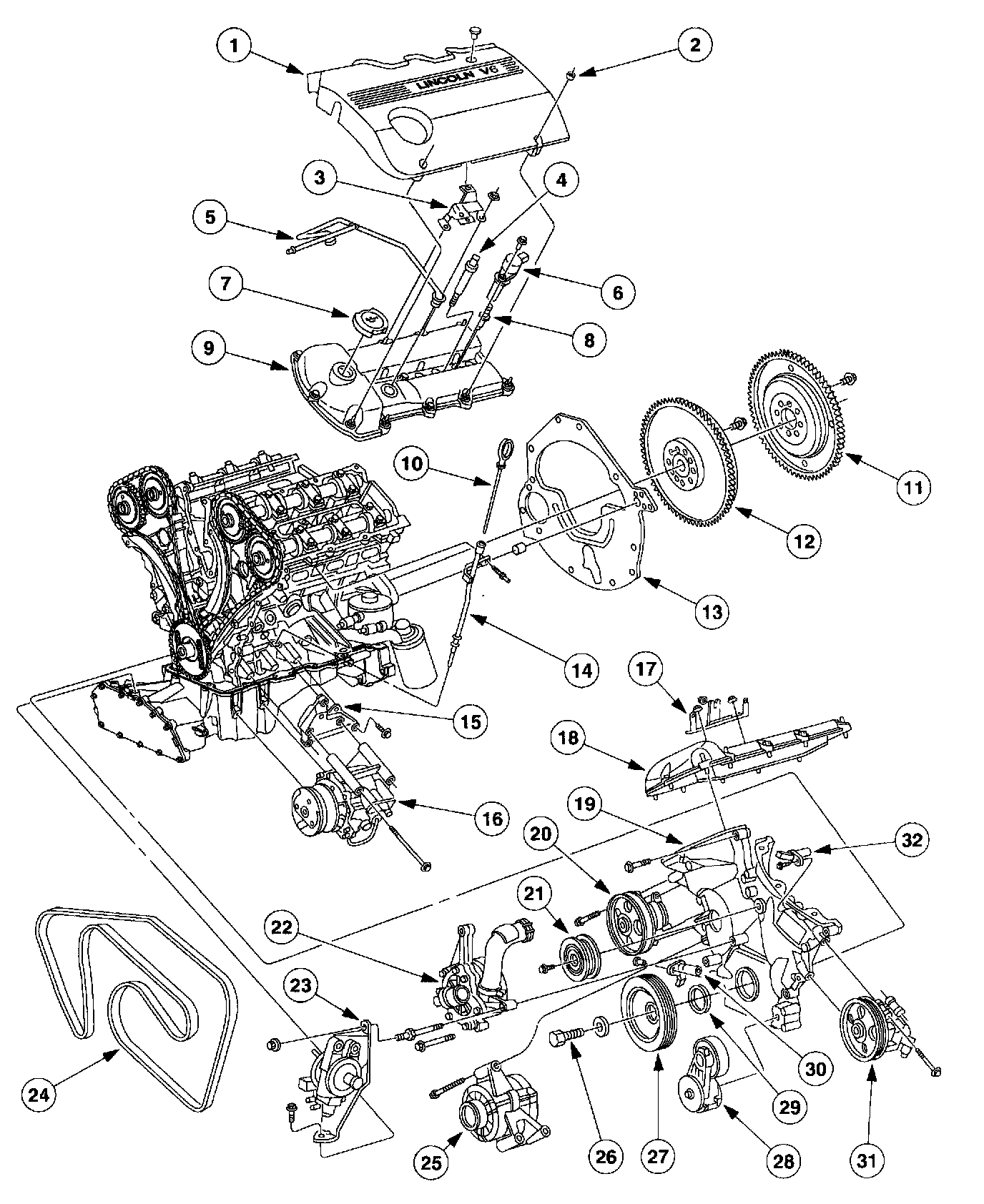

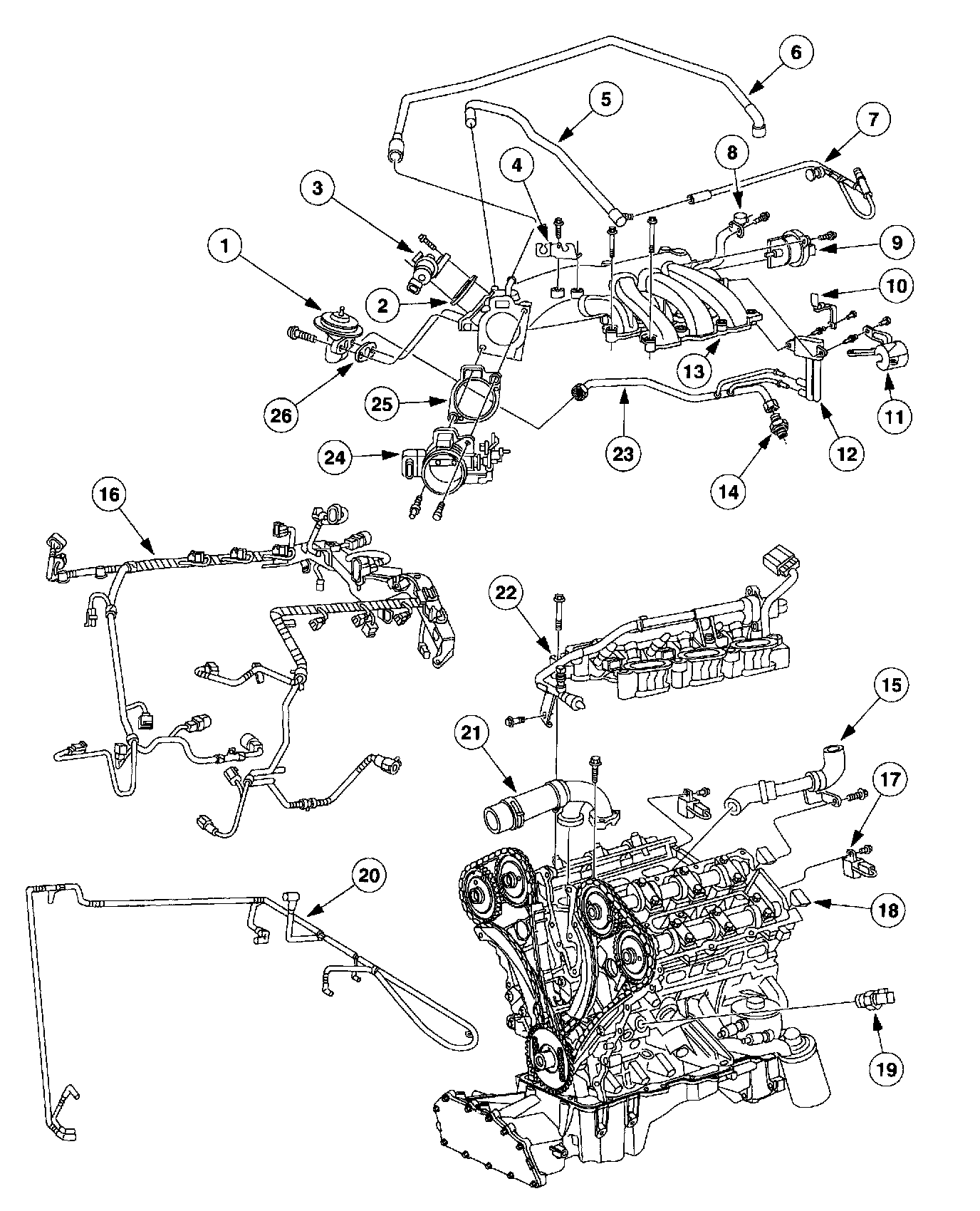

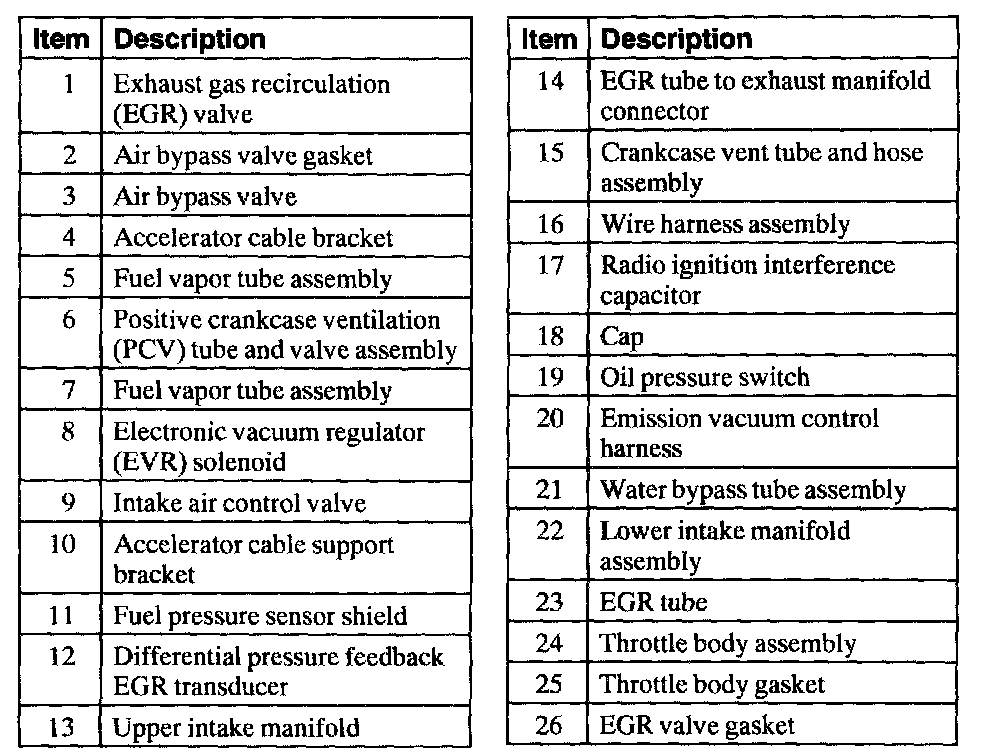

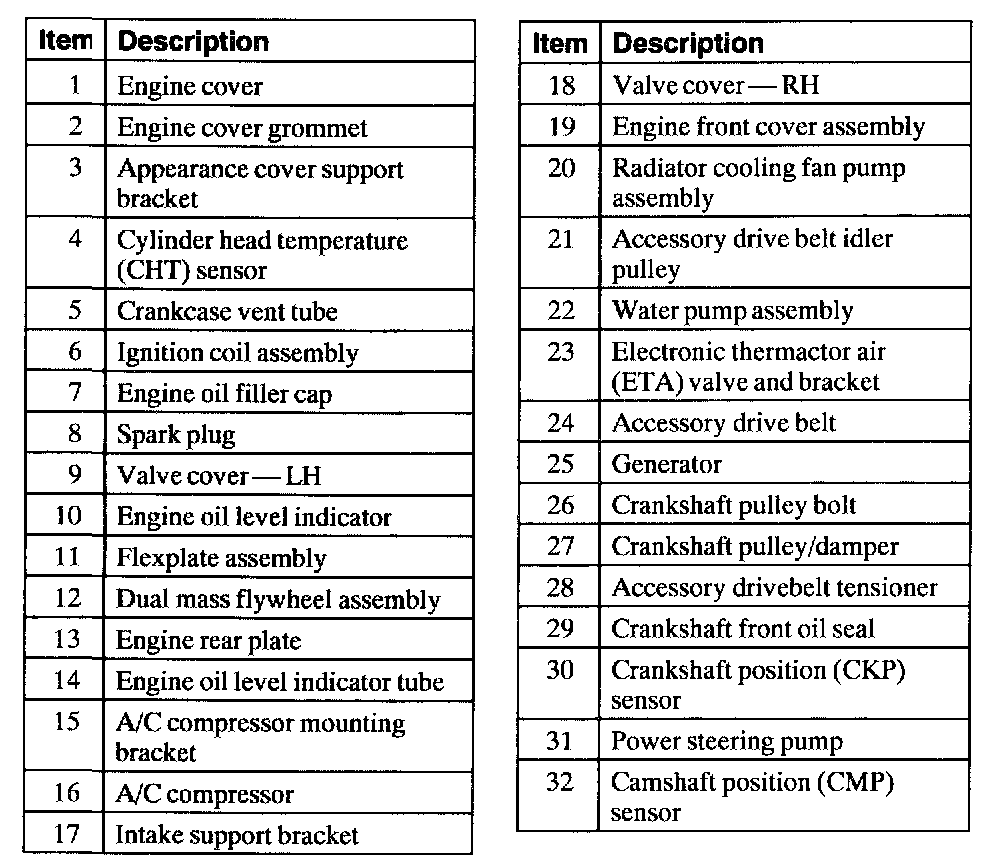

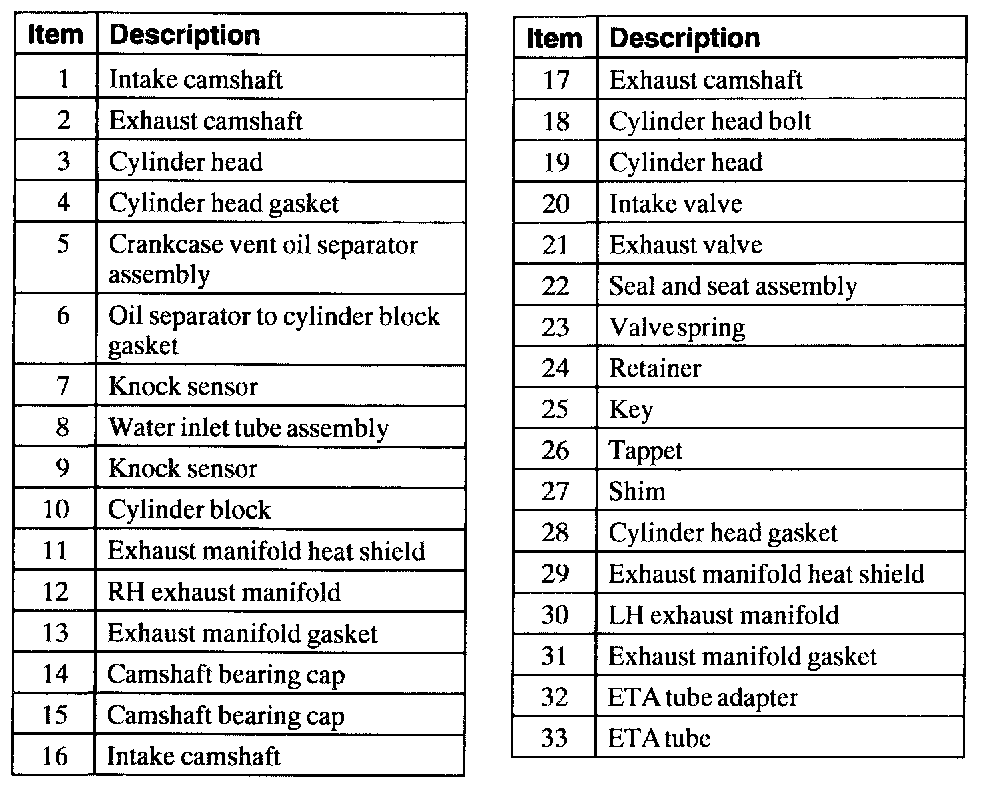

Engine Disassembled View





Part 1 of 6





Part 2 of 6





Part 3 of 6





Part 4 of 6





Part 5 of 6





Part 6 of 6
