Home >> Lincoln >> 2001 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Transmission and Drivetrain >> System Specifications

System Specifications

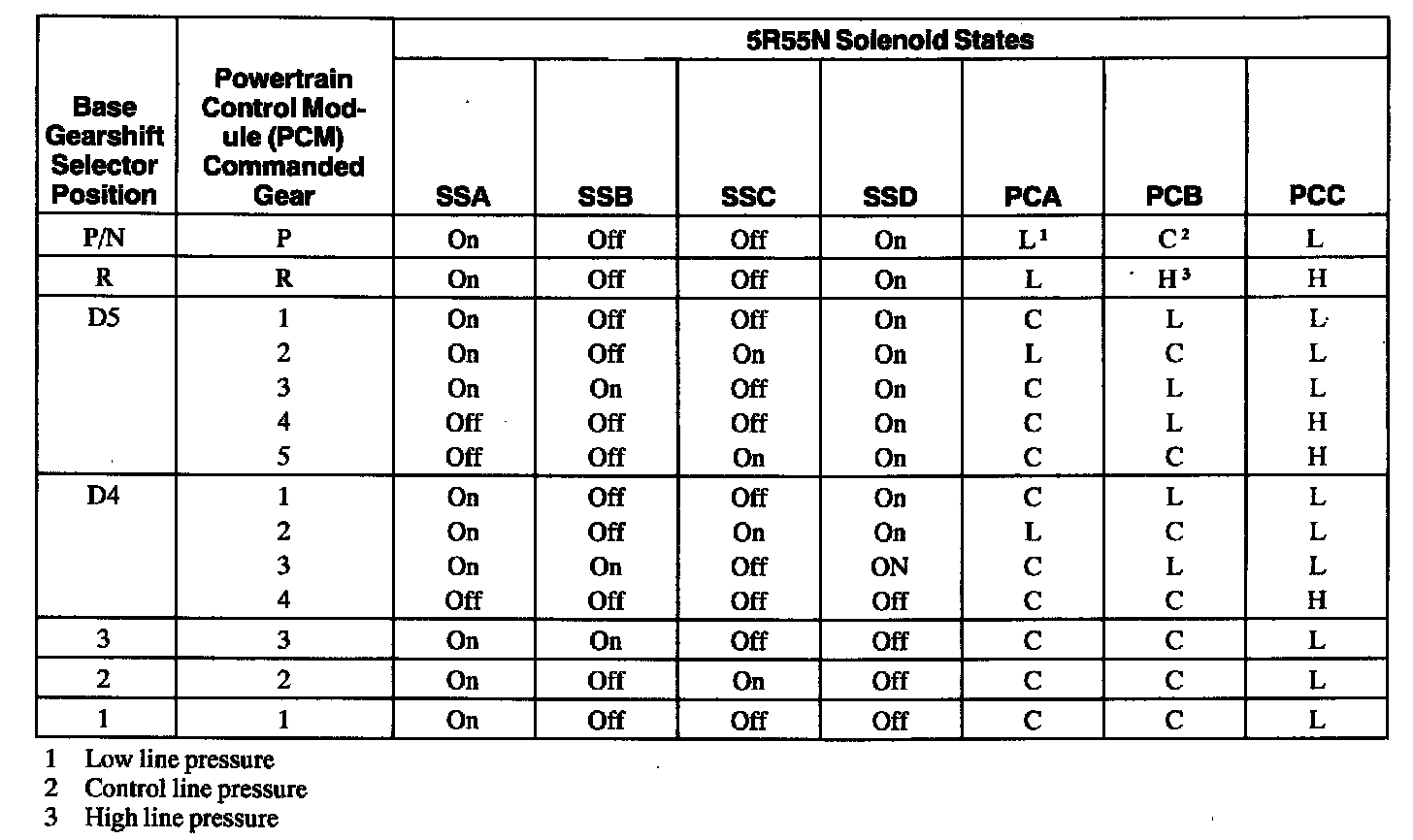

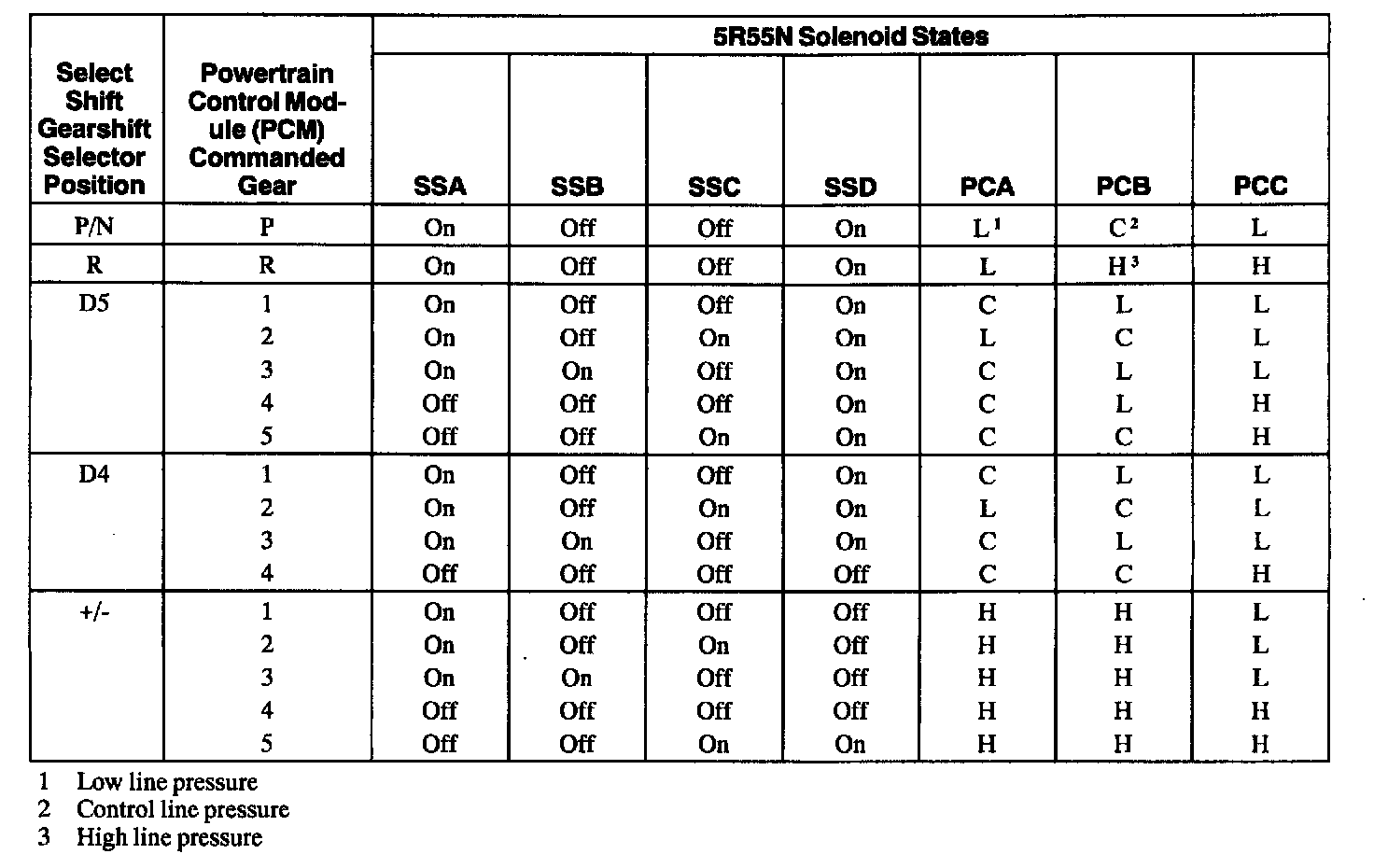

Solenoid Operation Chart (Automatic Transmission-5R55N)
