Home >> Lincoln >> 2000 >> Town Car V8-4.6L VIN W >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinpoint Tests >> Module Communications Network >> Test N: No Module/Network Communication

Test N: No Module/Network Communication

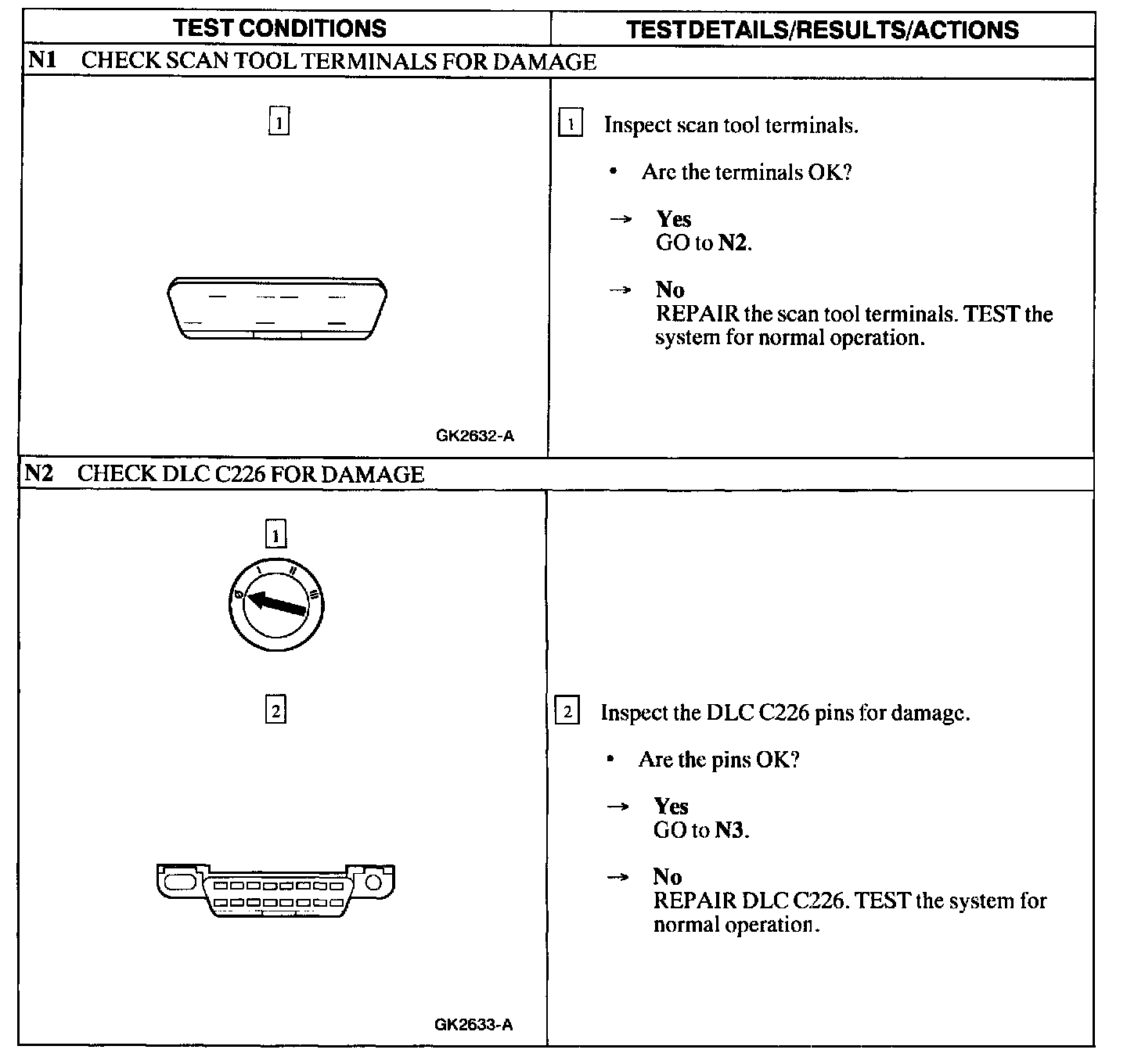

N1 - N2:

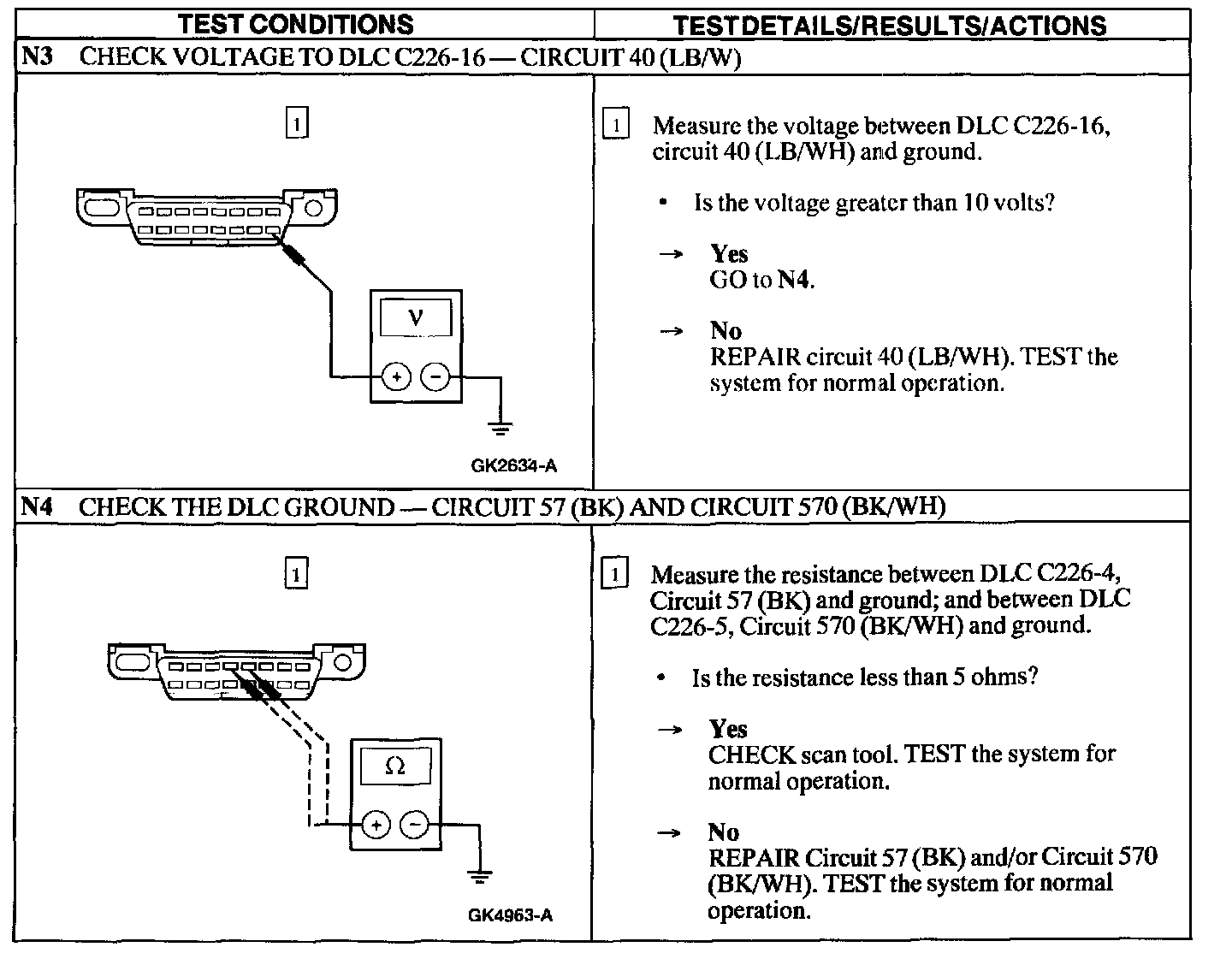

N3 - N4:
